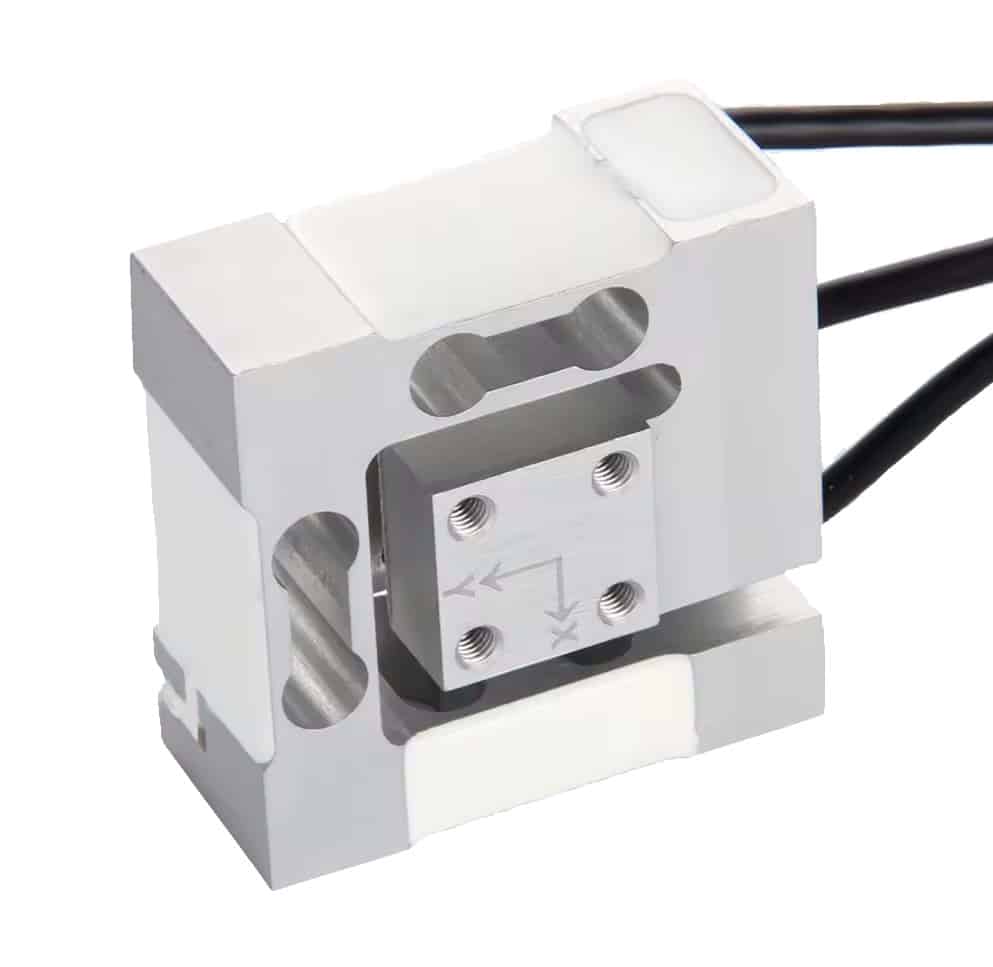

Tacuna Systems TSMA110 3-Axis Load Cell
The Tacuna Systems TSMA110 3-Axis Load Cell is engineered for precise multidirectional force measurement, ideal for complex multi-axis applications. It features three independent full bridge outputs, robust aluminum alloy construction, and capacities of 100N, 200N, and 500N. With a linearity error of ≤±0.2% FS, and temperature sensitivity of ≤±0.2% FS/10°C, it delivers reliable performance from -35°C to +70°C. The device includes 3, 2-meter cables and supports a maximum safe overload of 150% FS, making it suitable for various industrial, robotic, and research applications.
| Quantity | Price |
|---|---|
| 1 - 9 | $549.00 |
| 10 - 24 | $521.55 |
| 25 - 49 | $505.08 |
| 50 - 99 | $488.61 |
| 100 + | $466.65 |
Tacuna Systems TSMA110 3-Axis Load Cell Features
The Tacuna Systems TSMA110 3-Axis Load Cell offers a highly precise and durable solution for multidirectional force measurement. This innovative load cell is designed to provide three independent full bridge outputs, making it perfect for complex applications requiring multi-axis analysis. It features a robust aluminum alloy construction and can handle capacities of 100N, 200N, and 500N. With an impressive accuracy class and linearity error of ≤±0.2% FS, and a sensitivity impact due to temperature changes also capped at ≤±0.2% FS/10°C, this load cell ensures reliable performance across a temperature range of -35°C to +70°C. The unit includes 3, 2-meter cables with a 3.8mm diameter, optimizing connectivity and installation ease. Ideal for various industrial applications, the TSMA110 is equipped to provide precise force assessment with a maximum safe overload of 150% FS, ensuring both safety and efficiency in demanding environments.
- Material: Aluminum Alloy
- Rated Capacities: 100N, 200N, 500N
- High Accuracy: ≤±0.2% FS
- Linearity Error: ≤±0.2% FS
- Temperature Stability: ≤±0.2% FS per 10°C.
- Output Sensitivity: 1.0±0.1 mV/V.
- Electrical Resistance: 350±10Ω.
- High Insulation Resistance: ≥5000 MΩ at 50 VDC
- Zero Balance: ±0.1 mV/V
- Temperature Range: -10°C to +40°C and -35°C to +70°C.
- Excitation Voltage: 5V to 10V DC, with a maximum of 18V DC.
- Safe Overload: 150%
- Cable Specifications: 2m cable with a diameter of Φ3.8mm
Available Options: 100N, 200N & 500N.
Please Contact us with any product-related questions.
Specifications
The Tacuna Systems OEM3ASE Load Cell Specifications
| Rated Capacity | 100N, 200N & 500N |
| Material | Aluminum Alloy |
| Accuracy Class | ±0.2% FS |
| Linearity Error | 0.2% FS |
| Temperature Effect on Sensitivity | ±0.2% FS per 10°C |
| Temperature Effect on Zero | ±0.2% FS per 10°C |
| Output Sensitivity | 1.0 ± 0.1 mV/V |
| Input Resistance | 350 ± 10O |
| Output Resistance | 350 ± 10O |
| Insulation Resistance | 5000 MO at 50V DC |
| Zero Balance | ±0.1 mV/V |
| Temperature Compensation Range | -10°C to +40°C |
| Temperature Allowance Range | -35°C to +70°C |
| Recommended Excitation | 5 to 10 V DC |
| Maximum Excitation | 18 V DC |
| Safe Overload | 150% of Full Scale |
| Force Measurement | Multidirectional with 3 independent full bridge outputs |
| Cable Length | 2 Meters |
| Cable Diameter | F3.8 mm |
Technical Documents
 |
OEM3ASE 3-Axis Load Cell Datasheet |
