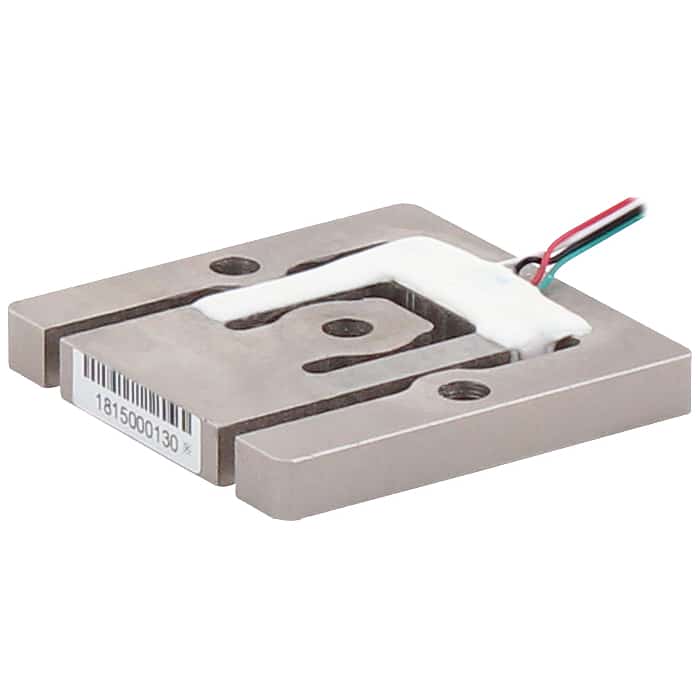

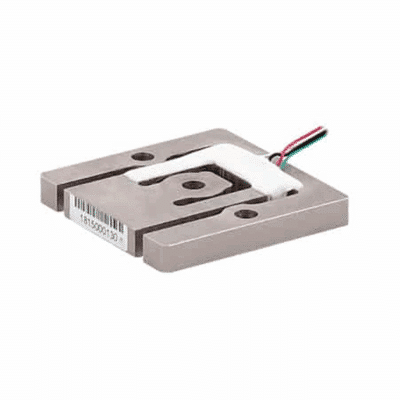

ANYLOAD 202WH Alloy Steel Planar Load Cell
The ANYLOAD 202WH Alloy Steel Planar Load Cell is a compact device optimized to provide accurate weight measurements in clearance-limited applications. Rated IP65, it withstands harsh environments. It also conforms to leading safety standards. This product is available in a 250kg rated capacity.
For more cost-effective aluminum versions of this planar load cell, see the ANYLOAD 202WA and 202UA.
| Quantity | Price |
|---|---|
| 1 - 9 | $246.00 |
| 10 - 24 | $233.70 |
| 25 - 49 | $226.32 |
| 50 - 99 | $218.94 |
| 100 + | $209.10 |
ANYLOAD 202WH Planar Load Cell Features
- Material: Alloy Steel
- Rated Capacities: 250kg
- Full-Scale Output: 0.9mV/V ± 0.1%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS-certified
Available Option: 250kg
Please contact us with any product-related questions.
Specifications
ANYLOAD 202WH Load Cell Specifications
| Rated Capacity | 250kg |
| Full-Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.01% |
| Repeatability | < ± 0.01% |
| Hysteresis Error | < ± 0.01% |
| Creep in 30 minutes | < ± 0.010% |
| Input Resistance | 1204Ω ± 5Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |
Technical Documents
 |
ANYLOAD 202WH Low-Profile Alloy Steel Planar Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
202WH-250kg |
