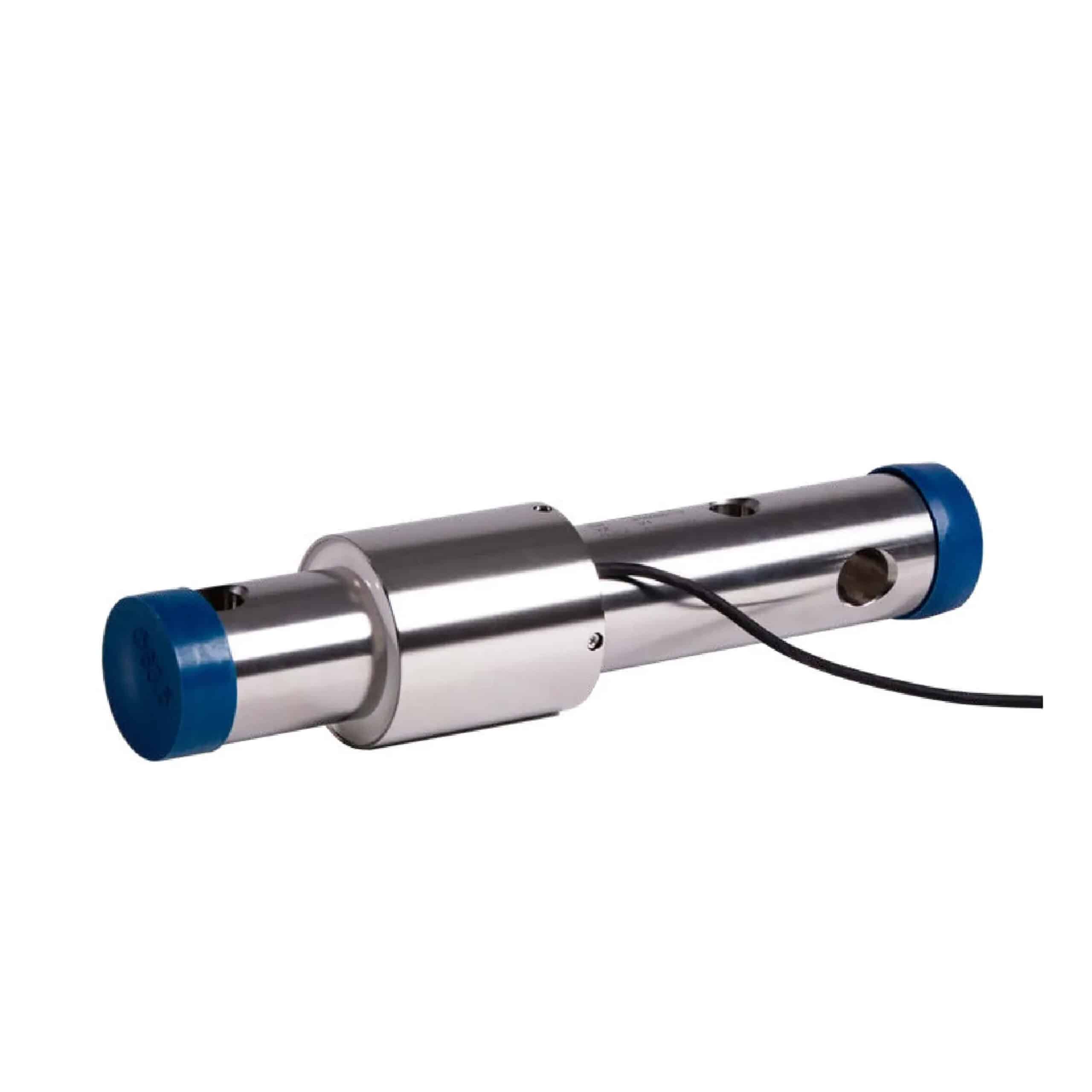

ANYLOAD 563WS-AB Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563WS-AB Stainless Steel Single-Ended Beam Load Cell offers a rated capacity of 18Klb with a full-scale output of 0.9 mV/V ± 1%. Built for durability, it features a breaking overload of 300% and an IP67 environmental seal for reliable performance in harsh conditions.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,400.00 |
| 10 - 24 | $1,330.00 |
| 25 - 49 | $1,288.00 |
| 50 - 99 | $1,246.00 |
| 100 + | $1,190.00 |
ANYLOAD 563WS-AA Features
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 18Klb
- Full Scale Output: 0.9 mV/V ± 1%
- Breaking Overload: 300%
- IP Rating: Environmentally Sealed / IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Available Option: 30Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563WS-AB Load Cell General Specifications
| Rated Capacities | 18Klb |
| Full Scale Output | 0.6347 ± 0.003mV/V |
| Zero Balance | ±0.02 mV/V |
| Non-linearity | <±0.03% |
| Repeatability | <±0.03% |
| Hysteresis Error | <±0.03% |
| Creep in 30 min | <±0.023% |
| Input Resistance | 375Ω ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | 2Cr13 Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Operation Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
| Cable Color Code | Exc+ Red(Pin 1); Exc-Black(Pin 4); Sig+ White(Pin 3); Sig- Green(Pin 2); Shield Bare(Pin 5) |
Technical Documents
 |
563WS-AB Single-Ended Beam Load Cell Datasheet |
 |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
