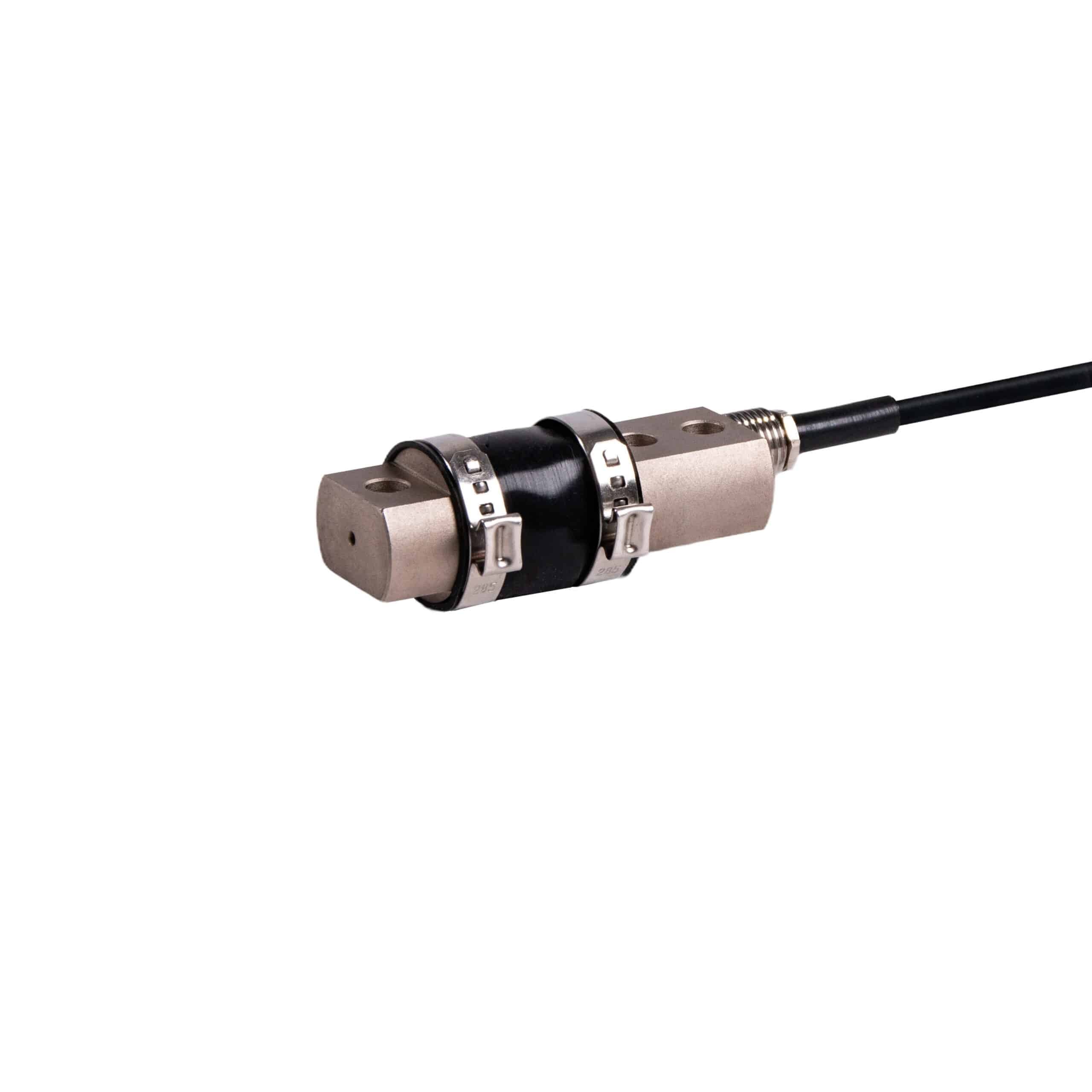

ANYLOAD 563SH Alloy Steel Single-Ended Beam Load Cell
The ANYLOAD 563SH Alloy Steel Single-Ended Load Cell is a compact and reliable solution for lower-capacity applications like conveyor scales and process weighing. Its IP65 water-resistant alloy steel construction ensures durability, with a 150% safe overload capacity. The 563SH is interchangeable with popular models like the Rice Lake RL50210 and Vishay Revere 5503. For a similar load cell with wider dimensions, consider the ANYLOAD 563SHBB.
Other capacities and configurations may be available—please Contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $270.00 |
| 10 - 24 | $256.50 |
| 25 - 49 | $248.40 |
| 50 - 99 | $240.30 |
| 100 + | $229.50 |
ANYLOAD 563SH Features
The ANYLOAD 563SH Alloy Steel Single-Ended Beam Load Cell is a compact and reliable solution for lower-capacity applications, including conveyor scales, platform scales, and process weighing. Engineered with IP65-rated water-resistant alloy steel, it ensures durability and accuracy even in challenging environments. The load cell’s robust design also includes a 150% safe overload capacity, making it ideal for various industrial applications. It is interchangeable with models such as the Rice Lake RL50210 and Vishay Revere 5503, offering versatile compatibility. For applications requiring wider dimensions, consider the ANYLOAD 563SHBB model.
- Material: Alloy Steel
- Rated Capacities: 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 300lb, 500lb
- Full-Scale Output: 3mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP65
- CE, RoHS, and Ex Certified
Available Options: 25lb, 50lb, 100lb, 150lb, 250lb, & 500lb.
Contact us with any product-related questions.
Specifications
ANYLOAD 563SH Load Cell Specifications
| Rated Capacities | 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 300lb, 500lb |
| Full-Scale Output | 3mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Combine Error | 0.03% of full scale |
| Non-linearity | ≤ ± 0.030% |
| Repeatability | ≤ ± 0.020% |
| Hysteresis Error | ≤ ± 0.020% |
| Creep in 30 minutes | ≤ ± 0.030% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | ≤ ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | ≤ ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Service Temperature Range | -30°C to 70°C / -20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C / -58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |
Technical Documents
 |
563SH Single-Ended Beam Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 563SH Equivalents
| Manufacturer | Model |
|---|---|
| Artech | 50210 |
| Rice Lake | RL50210 |
| Vishay Revere Transducers | 5503 |
| Vishay Sensortronics | 60040 |
| Coti Global | CG-60040 |
