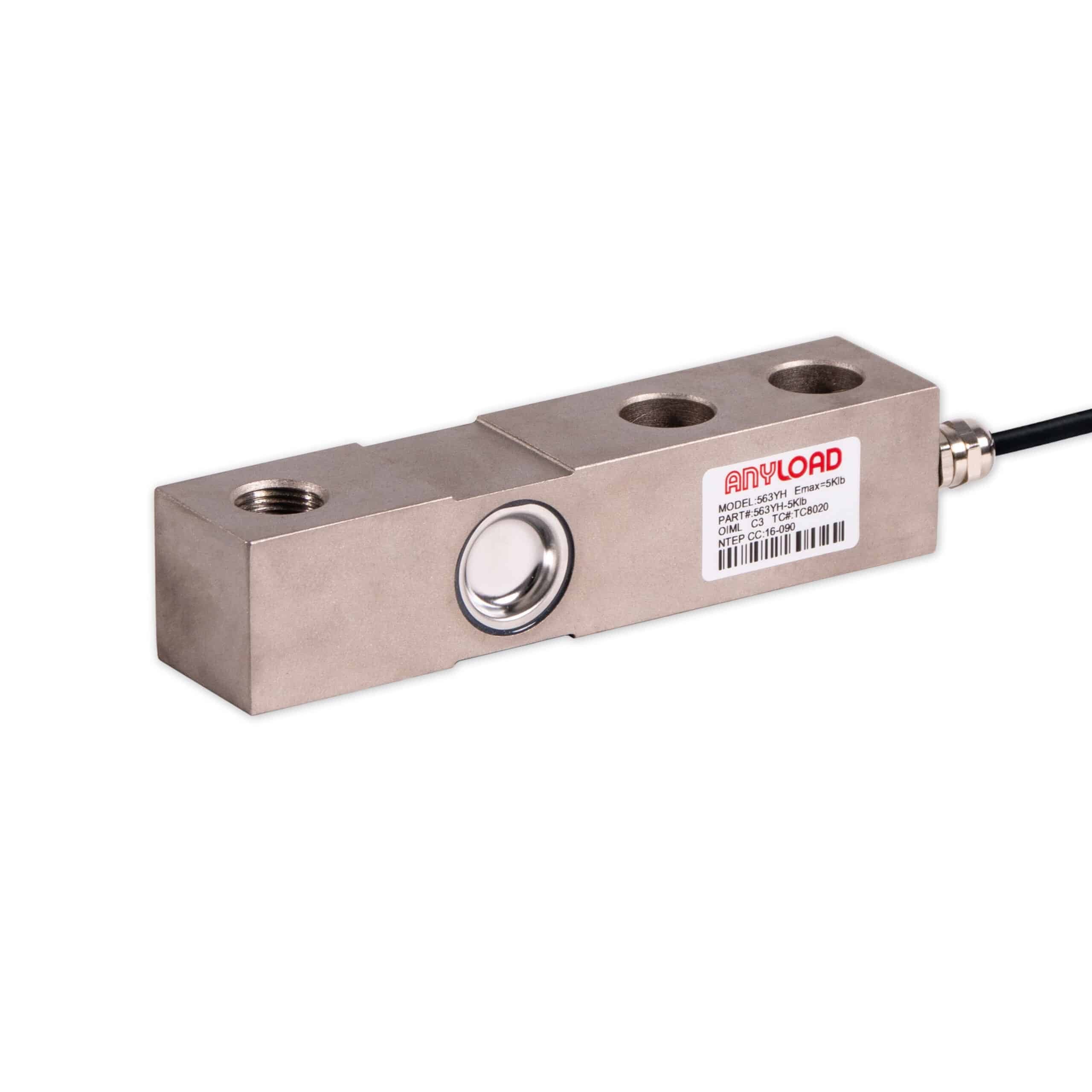

ANYLOAD 563YH Alloy Steel Single-Ended Beam Load Cell
The ANYLOAD 563YH Single-Ended Beam Load Cell delivers reliable and accurate weighing for a broad variety of industrial and technical weighing applications. With environmentally sealed, nickel-plated alloy steel construction, the 563YH is ingress protection rated IP67. It is available in capacities ranging from 100lb-20Klb.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $143.00 |
10-24 | 10 - 24 | 5% $135.85 |
25-49 | 25 - 49 | 8% $131.56 |
50-99 | 50 - 99 | 11% $127.27 |
100+ | 100 + | 15% $121.55 |
ANYLOAD 563YH Key Features
- Nickel-plated alloy steel material
- Rated Capacities: 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb (also upon request: 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t)
- Full Scale Output: 3mV/V± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- OIML C3 certified from 3t-10t
- CE, RoHS and Ex certified
Available options: 563YH-100lb, 563YH-250lb, 563YH-500lb, 563YH-1000lb, 563YH-1500lb, 563YH-2000lb, 563YH-2500lb, 563YH-4000lb, 563YH-5000lb, 563YH-SE5000lb, 563YH-10000lb, 563YH-15000lb, 563YH-20000lb
Installation modules: ANYLOAD 563YHM2, 563YHM4, 563YHM5
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 563YH Load Cell Specifications
Rated Capacity | 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, LE2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 100kg, 200kg, 300kg, 500kg, 750kg, 1t, 1.5t, 2t, 2.5t, 3t, 5t, 10t, 20t |
Full Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 400Ω ± 20Ω for kg or 350Ω ± 7Ω for lb |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Interchangeable Cross Reference
ANYLOAD 563YH Interchangeable Cross Reference
Manufacturer | Equivalent Model |
CAS | BSA |
Coti Global | CG-23 |
Rice Lake | RL30000 |
Rice Lake | RL35023 |
Vishay Celtron | SQB |
Vishay Revere Transducers | 5123 |
Vishay Sensortronics | 65023A |
Vishay Tedea-Huntleigh | 3411 |
