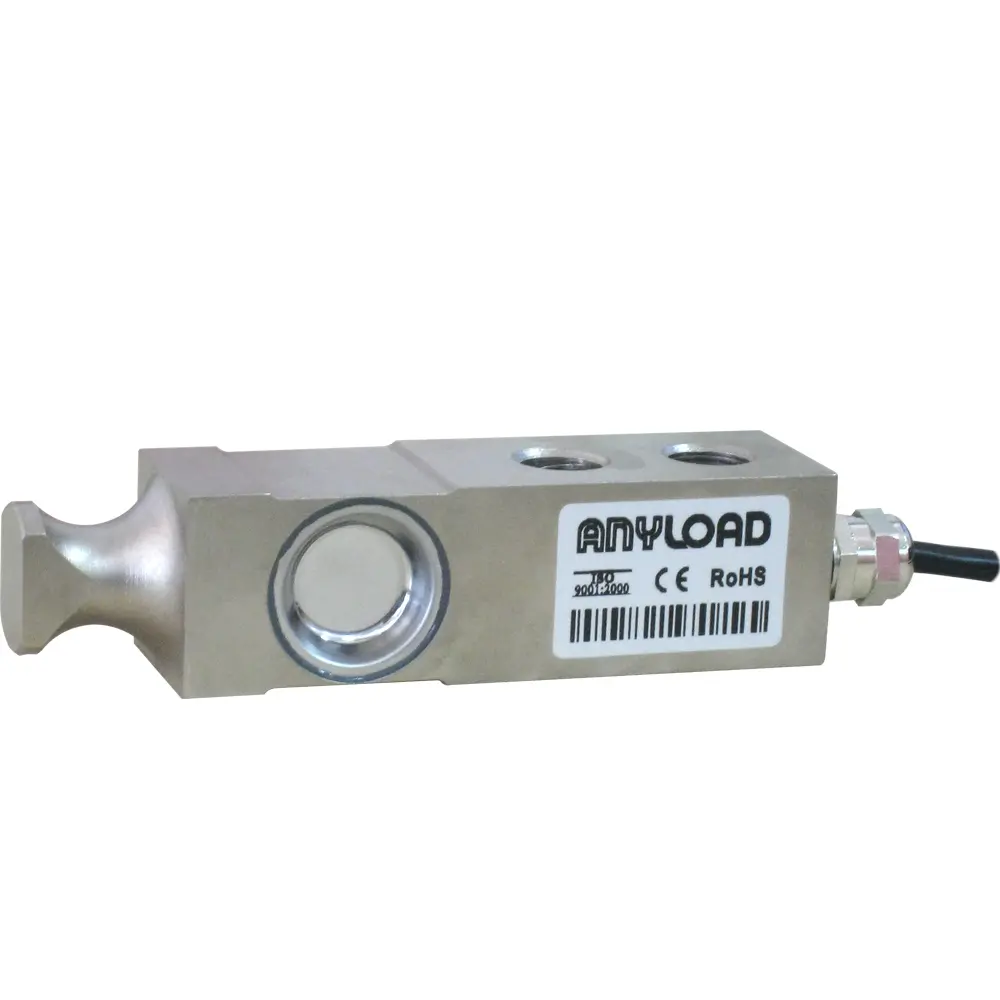

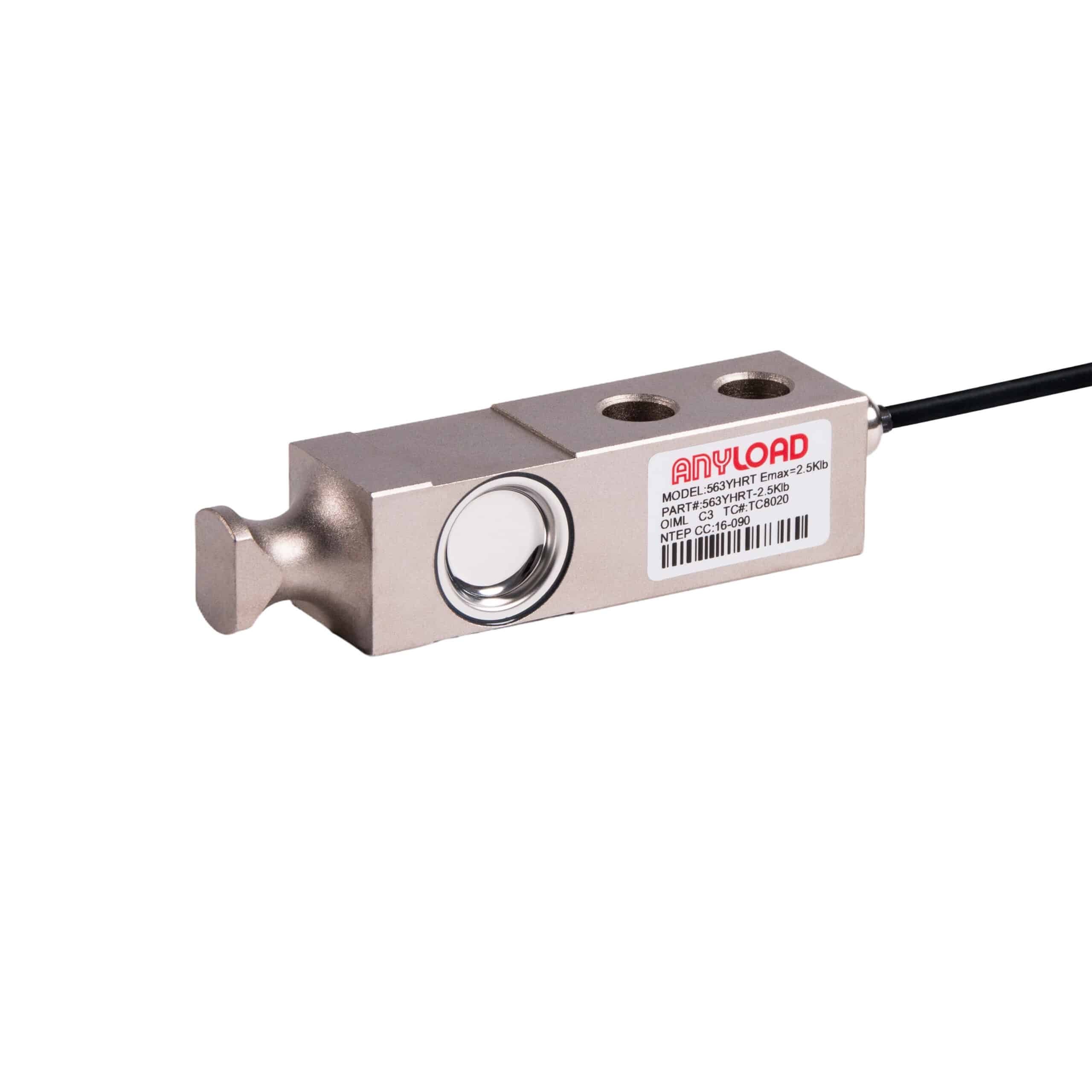

ANYLOAD 563YHRT Alloy Steel Single-Ended Beam Load Cell
The 563YHRT Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution made from nickel-plated, environmentally sealed alloy steel. It offers superior accuracy and cost-effectiveness, ideal for platform and hopper weighing applications. Interchangeable with the Vishay Revere 5723, it is available in capacities from 1Klb to 10Klb.
Other capacities and configurations are available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $332.00 |
10-24 | 10 - 24 | 5% $315.40 |
25-49 | 25 - 49 | 8% $305.44 |
50-99 | 50 - 99 | 11% $295.48 |
100+ | 100 + | 15% $282.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YHRT Features
The 563YHRT Single-Ended Beam Load Cell is a heavy-duty, IP67-rated weighing solution designed for superior accuracy and durability in demanding environments. Constructed from nickel-plated, environmentally sealed alloy steel, it offers excellent water resistance and long-lasting performance. This cost-effective load cell is ideal for applications such as platform weighing, hopper weighing, and more, ensuring reliable measurements even under challenging conditions. Interchangeable with the Vishay Revere 5723, the 563YHRT is available in capacities ranging from 1Klb to 10Klb, making it a versatile choice for various industrial weighing needs.
- Material: Alloy Steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
- Full-Scale Output: 3mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
- NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
- OIML MAA C4, Y=15 000 certified from 500kg-2.5t
- CE, RoHS, and Ex Certified
Available Options: 1Klb, 2.5Klb, 4Klb, 5Klb & 10Klb.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YHRT Load Cell Specifications
Rated Capacity | 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb |
Full-Scale Output | 3mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP67 |
Technical Documents
563YHRT Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance OIML Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
3D Drawing
563YHRT-(1-4)klb | |
563YHRT-(5-10)klb |
Interchangeable Cross Reference
ANYLOAD 563YHRT Equivalents
Manufacturer | Equivalent Model |
Coti Global | CG-30410 |
Vishay Revere Transducers | 5723 |
