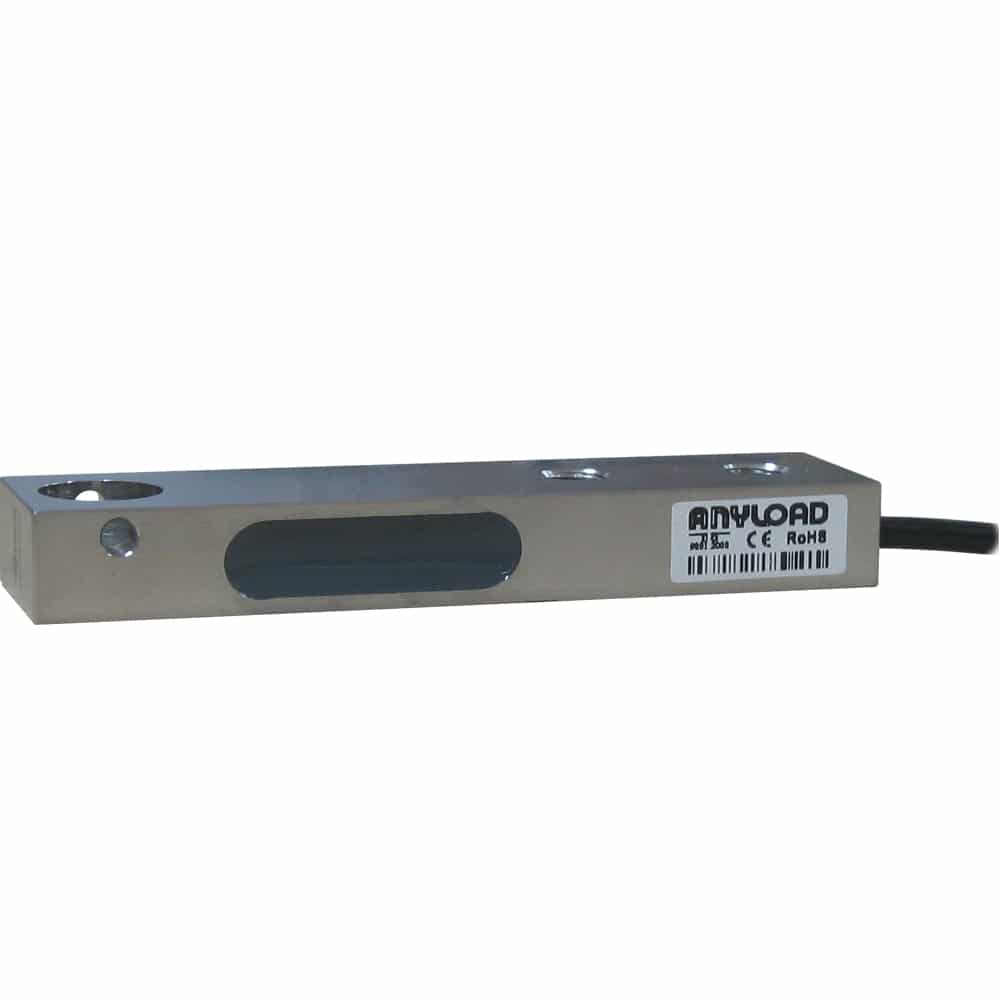

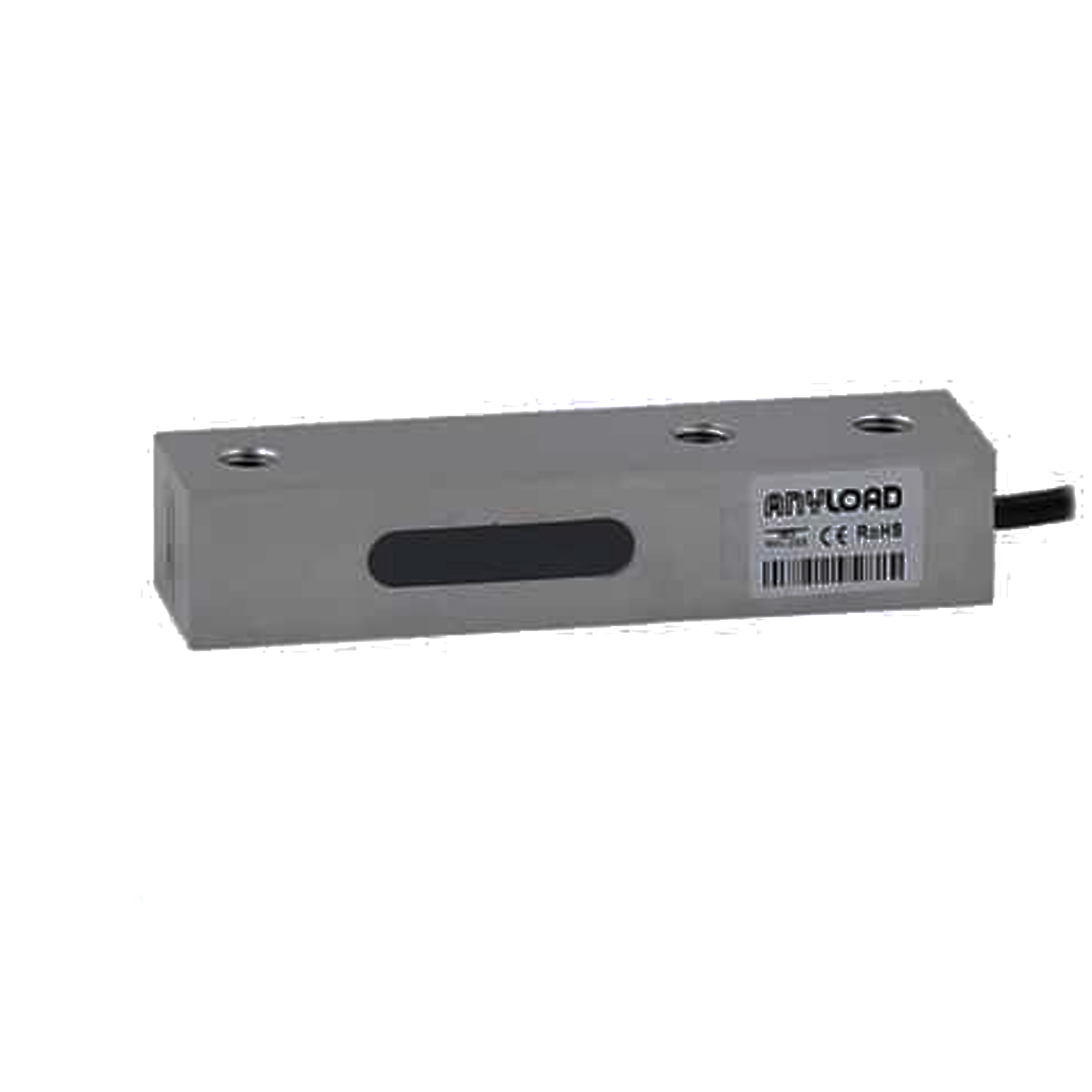

ANYLOAD 563YSBKUN-YZ Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563YSBKUN Single-Ended Beam Load Cell is a high-performance, low-profile weighing solution, ideal for applications with limited clearance. Constructed from environmentally sealed 2Cr13 stainless steel, it boasts an IP67 water-resistant rating, ensuring reliability and durability in demanding environments. Available with 200kg, 500kg, 1t, and 2t capacity and imperial mounting threads, it excels in medical, food processing, and industries requiring portability and washdown water resistance. Common uses include hospital beds, mobile weighing platforms, tank weighing, pallet scales, and hopper scales.
Other configurations (including metric mounting threads) are available upon request—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $252.00 |
10-24 | 10 - 24 | 5% $239.40 |
25-49 | 25 - 49 | 8% $231.84 |
50-99 | 50 - 99 | 11% $224.28 |
100+ | 100 + | 15% $214.20 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 563YSBKUN Features
The ANYLOAD 563YSBKUN Single-Ended Beam Load Cell features a low-profile design ideal for applications requiring narrow clearance. Constructed from environmentally sealed 2Cr13 stainless steel, it boasts an ingress protection rating of IP67, making it water-resistant and suitable for various demanding environments. With a capacity of 500kg and imperial mounting threads, this load cell is particularly well-suited for industries needing reliable and portable compression weighing solutions. Its compact design is popular in medical applications, such as hospital beds, and in food processing where washdown water resistance is essential. Additionally, it is commonly used in mobile weighing platforms, tank weighing, pallet scales, and hopper scales. This high-performance load cell provides an excellent balance of durability, reliability, and versatility for numerous industrial applications.
- Material: 2Cr13 Stainless Steel
- Thread: Imperial
- Rated Capacities: 200kg, 500kg, 1t, 2t
- Full-Scale Output: 2mV/V ± 0.1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and ExNepsi certified
Available Options: 200kg, 500kg, 1t & 2t.
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563YSBKUN Load Cell Specifications
Rated Capacity | 200kg, 500kg, 1t, 2t |
Full Scale Output | 2mV/V ± 0.1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 1100Ω ± 50Ω |
Output Resistance | 1000Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
563YSBKUN Single-Ended Beam Load Cell Datasheet | |
NTEP Certificate of Conformance CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 563YSBKUN Equivalents
Manufacturer | Equivalent Model |
Flintec | BK2 |
