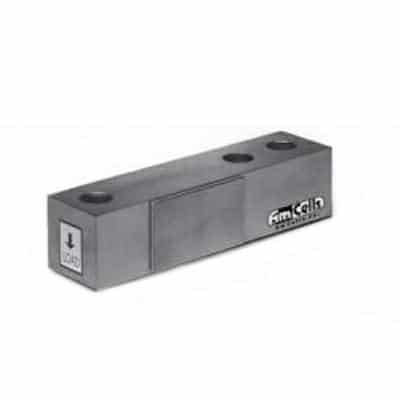

AmCells SBS Series Single-Ended Shear Beam SS Load Cell
The AmCells SBS Single-Ended Shear Beam Load Cell is used for applications such as industrial floor scales, barrel scales, and low to medium capacity vessel weighing. Stainless steel construction; NTEP approved.
Other industrial load cell capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $270.00 |
10-24 | 10 - 24 | 5% $256.50 |
25-49 | 25 - 49 | 8% $248.40 |
50-99 | 50 - 99 | 11% $240.30 |
100+ | 100 + | 15% $229.50 |
SKU: SBS
Category: Single-Ended Shear Beam
AmCells SBS Series Key Features

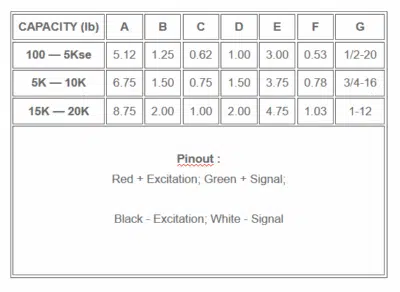

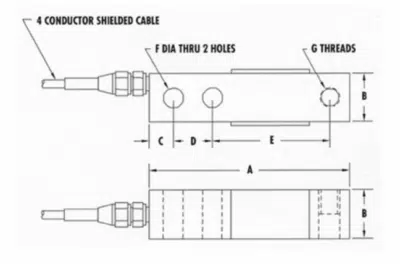

These Single-Ended Shear Beam load cells are easily mounted on top with threaded hole and two through holes.
- Stainless steel material
- Meets OIML and HB44 Class III Standards
- Cable Length: 20 ft.
Available options: SBS-250lb, SBS-500lb, SBS-1000lb, SBS-2500lb, SBS-5000lb, SBS-5000lb SE, SBS-10000lb, SBS-15000lb, SBS-20000lb
Please contact us with any product interfacing inquiries.
Specifications
AmCells SBS Series Single-Ended Shear Beam Load Cell Specifications
Rated Output (R.O.) | 3.0 MV/V ± 1% |
Zero Balance | ± 2% of R.O. |
Non-Linearity | 0.03% of R.O. |
Hysteresis | 0.05% of R.O. |
Non-Repeatability | 0.02% of R.O. |
Creep (1 Hour) | 0.05% of Load |
Insulation | > 5,000M Ohm |
Input Impedance | 385 ± 30 Ohm |
Output Impedance | 350 ± 4 Ohm |
Safe Overload | 150% of F.S. |
Ultimate Overload | 300% of F.S. |
Compensated Temperature Range | -10 to 40 °C |
Operating Temperature Range | -40 to 80 °C |
Temperature Effect on Output | 20 ppm/°C of Load |
Temperature Effect on Zero | 20 ppm/°C of R.O. |
Recommended Excitation | 10V DC/AC |
Maximum Excitation | 20V DC/AC |
Interchangeable Cross Reference
AmCells SBS Series Equvialents
Manufacturer | Equivalent Model |
Artech Industries Inc. | SS30310 |
Rice Lake | RL39123 |
Revere | 9123 |
Sensor | 65023SS |
Tedea | 3420 |
Transcell | SBS SS |
Celtron | SQB SS |
