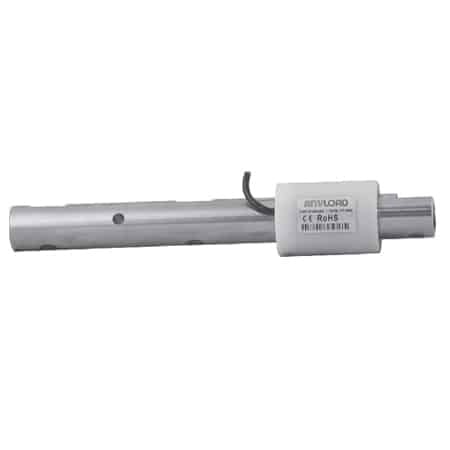

ANYLOAD 563WS-WBL Stainless Steel Single-Ended Beam Load Cell
The ANYLOAD 563WS-WBL Single-Ended Shear Beam Load Cell is a reliable and accurate weighing solution, ideal for a broad range of industrial applications. Constructed from 2Cr13 stainless steel, it is environmentally sealed and washdown waterproof with an IP67 rating, ensuring suitability for harsh environments. This interchangeable weigh bar, available in a 1,250lb rated capacity, is perfect for various floor scales and other demanding applications.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $526.00 |
10-24 | 10 - 24 | 5% $499.70 |
25-49 | 25 - 49 | 8% $483.92 |
50-99 | 50 - 99 | 11% $468.14 |
100+ | 100 + | 15% $447.10 |
ANYLOAD 563WS-WBL Features
The ANYLOAD 563WS-WBL Single-Ended Shear Beam Load Cell is a threaded stainless steel, interchangeable weigh bar designed for reliable and accurate weighing in a wide range of industrial and technical applications. Its 2Cr13 stainless steel construction ensures durability, while the environmentally sealed, washdown waterproof design with an IP67 rating makes it suitable for harsh environments. With a rated capacity of 1,250lb, this load cell is ideal for various floor scales and other demanding applications. Its robust design and high precision make it an excellent choice for industries requiring dependable and consistent weight measurements. The 563WS-WBL’s versatility and ruggedness ensure it performs well under challenging conditions, providing long-lasting and accurate service.
- Material: 2Cr13 Stainless Steel
- Rated Capacities: 1.25Klb
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, and Ex certified
Available Option: 1.25Klb-YZ
Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 563WS-WBL Load Cell General Specifications
Rated Capacity | 1.25Klb |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.05% |
Repeatability | < ± 0.03% |
Hysteresis Error | < ± 0.05% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 350Ω ± 7Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally sealed |
IP Rating | IP67 |
Technical Documents
563WS-WBL Single-Ended Beam Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity Explosion Protection Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 563WSBL Equivalents
ANYLOAD Part Number | Avery Weigh-Tronix | Coti-Global | Rice Lake |
563WS-1.25Klb-YZ-WBL | Weigh Bar | CG-WBL-SS-1.25Klb | RL32011WB-T-1.25Klb |
