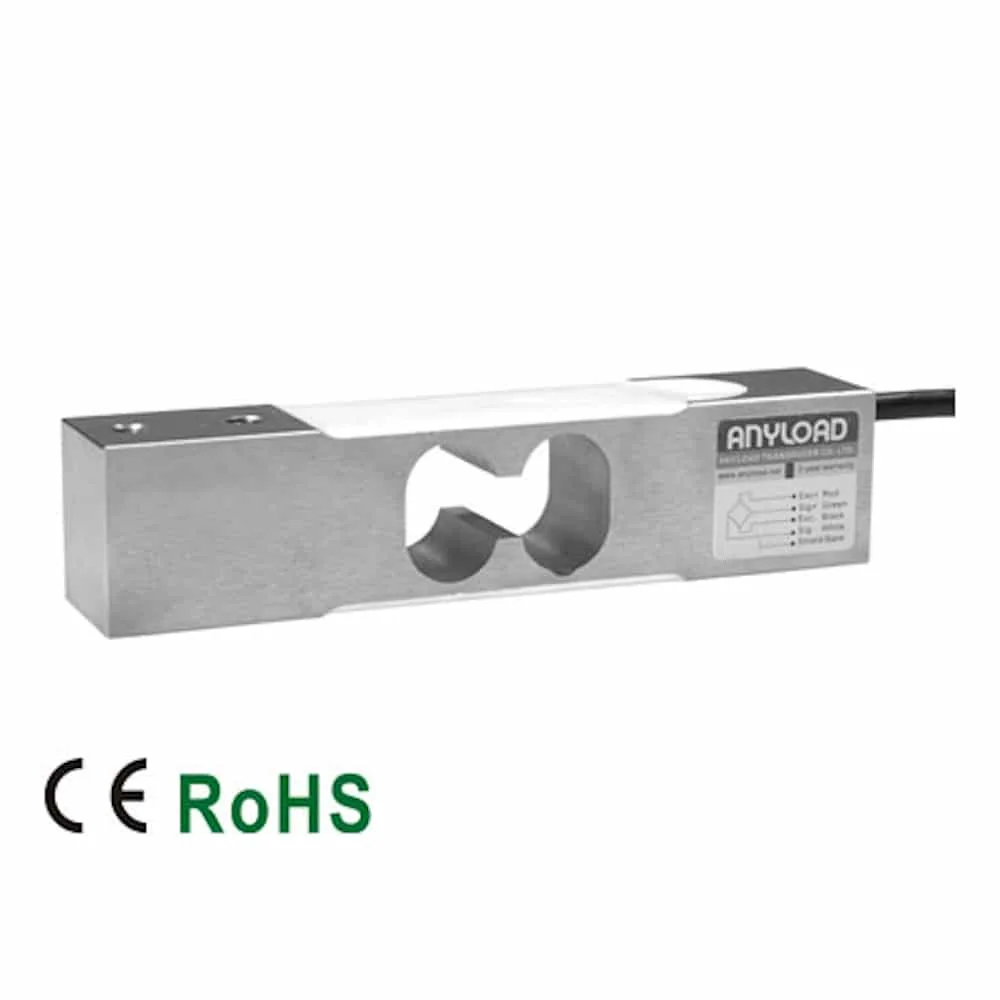

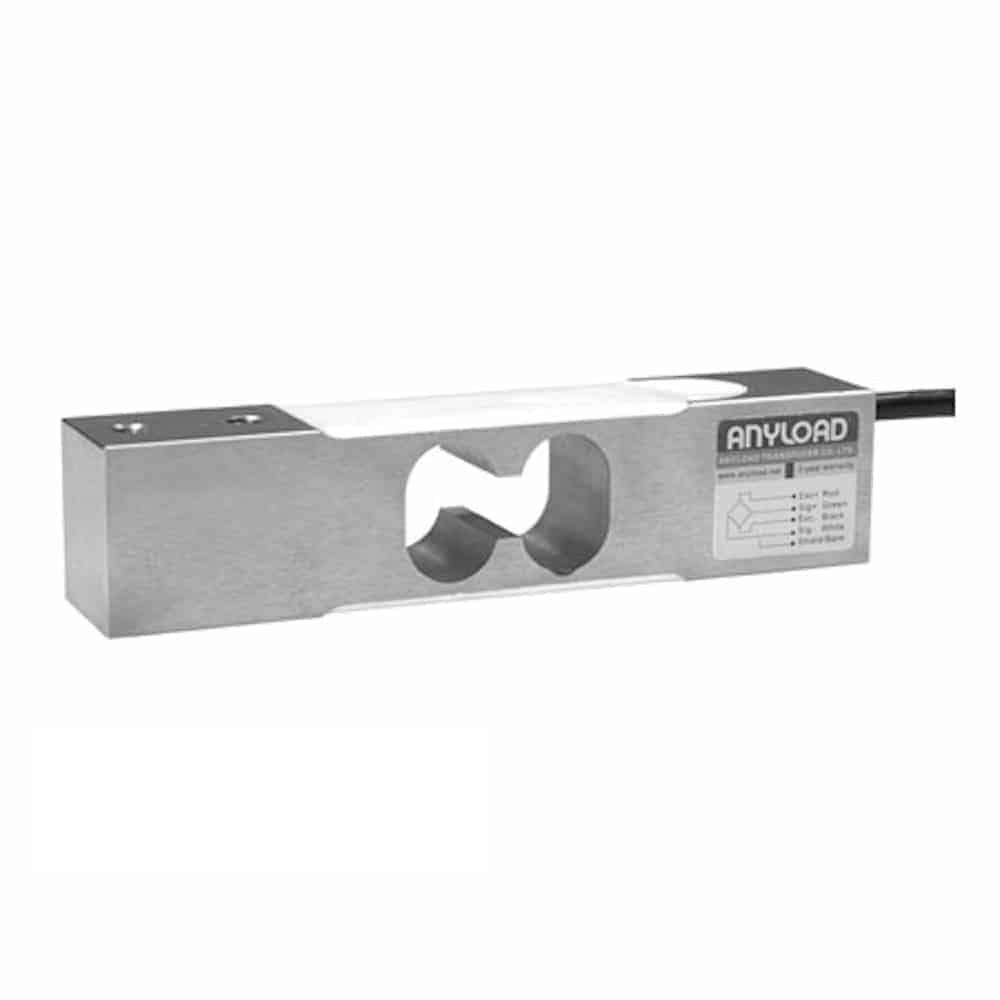

ANYLOAD 108KS Stainless Steel Single Point Load Cell
The ANYLOAD 108KS Single Point Load Cell is a compact and cost-effective stainless steel load cell designed for lower-capacity applications, such as platform scales, bench scales, counting scales, check weighing, and retail scales. With its IP66 ingress protection rating and resistance to eccentric loading, the 108KS ensures reliable performance even in harsh conditions. Constructed from 2Cr13 stainless steel, it provides excellent durability and accuracy. Available in capacities from 4kg to 150kg, this load cell features metric threads for mounting; for imperial threads, consider the 108KSUN model. It is also interchangeable with the Vishay Tedea-Huntleigh 1130.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $218.00 |
10-24 | 10 - 24 | 5% $207.10 |
25-49 | 25 - 49 | 8% $200.56 |
50-99 | 50 - 99 | 11% $194.02 |
100+ | 100 + | 15% $185.30 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 108KS Features
The ANYLOAD 108KS Single Point Load Cell is a compact and reliable IP66-rated stainless steel load cell designed for lower-capacity applications, such as platform scales, bench scales, counting scales, check weighing, and retail scales. Its 2Cr13 stainless steel construction offers superior accuracy and durability, ensuring excellent performance even under harsh conditions and eccentric loading. With a wide range of capacities from 4kg to 150kg, the 108KS is a cost-effective solution for various weighing needs. The load cell is interchangeable with the Vishay Tedea-Huntleigh 1130, providing flexibility and compatibility for different setups. It comes with metric threads for mounting; for those requiring imperial threads, the ANYLOAD 108KSUN model is available.
- Material: 2Cr132 Stainless Steel
- Cable Length: 2m
- Mounting Threads: Metric
- Rated Capacities: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
- Full-Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS Certified
Available Options: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg & 150kg.
Please Contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 108KS Load Cell Specifications
Rated Capacity | 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg |
Reference Max. Platform Size | 400mm x 400mm |
Full-Scale Output | 2mV/V ± 10% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.017% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.017% |
Creep in 30 minutes | < ± 0.023% |
Input Resistance | 385Ω ± 15Ω |
Output Resistance | 350Ω ± 3Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Nominal Temperature Range | -10°C to 40°C/14°F to 104°F |
Service Temperature Range | -18°C to 65°C/0°F to 149°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Environmentally Sealed |
IP Rating | IP66 |
Technical Documents
108KS Stainless Steel Single Point Load Cell Datasheet | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
108KS-(4-150)kg |
Interchangeable Cross Reference
ANYLOAD 108KS Equivalents
Manufacturer | Equivalent Model | Info |
HBM | PC30 | |
Vishay Tedea-Huntleigh | 1130 | Has a M6 mounting hole |
