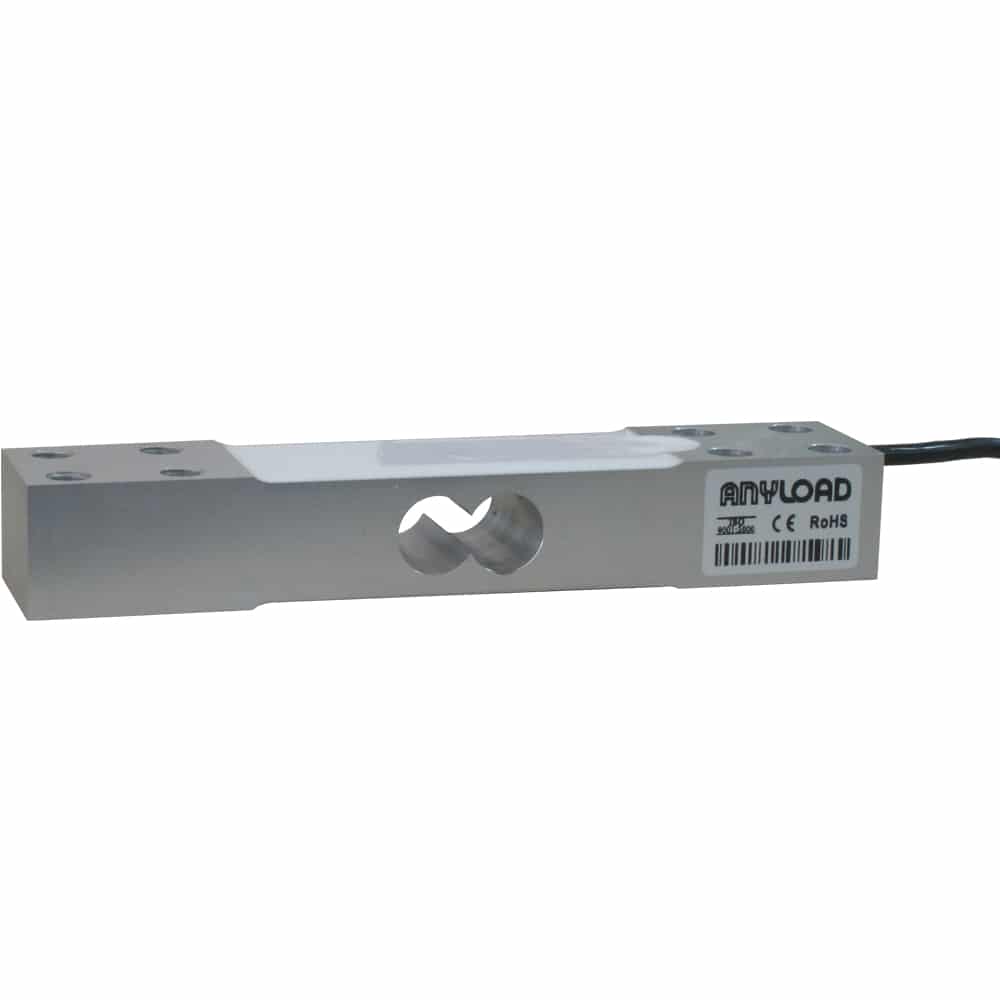

ANYLOAD 108TAYM Aluminum Single Point Load Cell

$475.00

The ANYLOAD 108TAYM is popular in process supervision systems, retail check out, postal scales, packaging devices, and airport baggage systems. Available in capacities from 75kg to 300kg, its aluminum body is rated IP66. Complies with multiple industry standards.

Other capacities and configurations available – please contact us with any questions.

Clear
SKU: 108TAYM Category:

ANYLOAD 108TAYM Key Features

  • Aluminum material
  • Rated Capacities: 75kg, 150kg, 300kg
  • Full Scale Output: 2mV/V ± 10%/-20%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • OIML C3 75kg-300kg
  • CE and RoHS certified

Available options: 108TAYM-75kg, 108TAYM-150kg, 108TAYM-300kg

Please contact us with any product interfacing inquiries.



Specifications

ANYLOAD 108TAYM Load Cell Specifications

Model 108TAYM 108TAYM-01
Rated Capacity 75kg, 150kg, 300kg 75kg, 150kg, 300kg
Reference Max. Platform Size 400mm x 400mm 400mm x 400mm
Full Scale Output 2mV/V ± 10%/-20% 2mV/V ± 10%/-20%
Zero Balance ± 0.02mV/V ± 0.02mV/V
Non-linearity < ± 0.017% < ± 0.015%
Repeatability < ± 0.017% < ± 0.01%
Hysteresis Error < ± 0.017% < ± 0.015%
Creep in 30 minutes < ± 0.016% < ± 0.016%
Input Resistance 385Ω ± 15Ω 1263Ω ± 30Ω
Output Resistance 350Ω ± 3Ω 1000Ω ± 9Ω
Recommended Excitation 10V (15V Maximum) 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC) > 1GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale 150% of full scale
Breaking Overload 300% of full scale 300% of full scale
Seal Type Environmentally sealed Environmentally sealed
IP Rating IP66 IP66

Technical Documents

108TAYM Single Point Load Cell Datasheet
Certificate Icon CE Certificate of Conformity
RoHS Certificate of Conformity
OIML Certificate of Conformity

Interchangeable Cross Reference

ANYLOAD 108TAYM Interchangeable Cross Reference

Manufacturer Equivalent Model Scale Capacity Part No.
Yamato UH69-6100 30kg 108TAYM-75kg
Yamato UH69-6100 60kg 108TAYM-150kg
Yamato UH69-6100 150kg 108TAYM-300kg
Yamato UH69-6200 30kg 108TAYM-75kg-01
Yamato UH69-6200 60kg 108TAYM-150kg-01
Yamato UH69-6200 150kg 108TAYM-300kg-01
