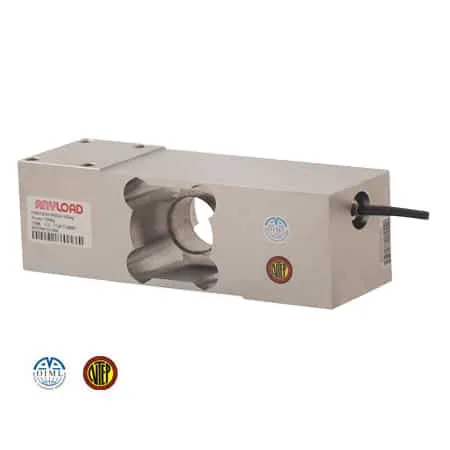

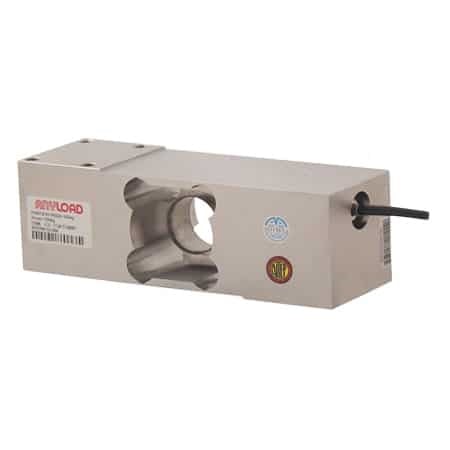

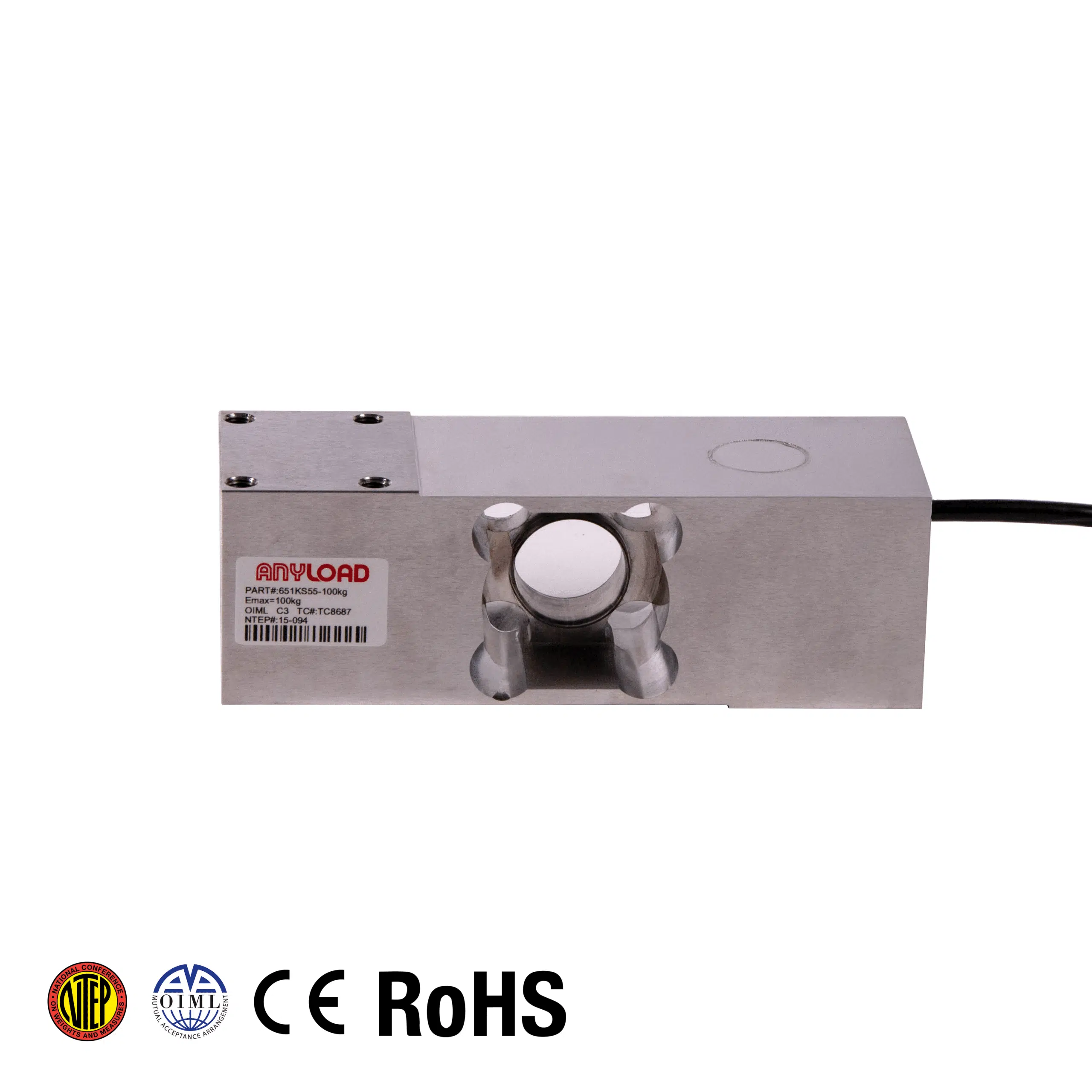

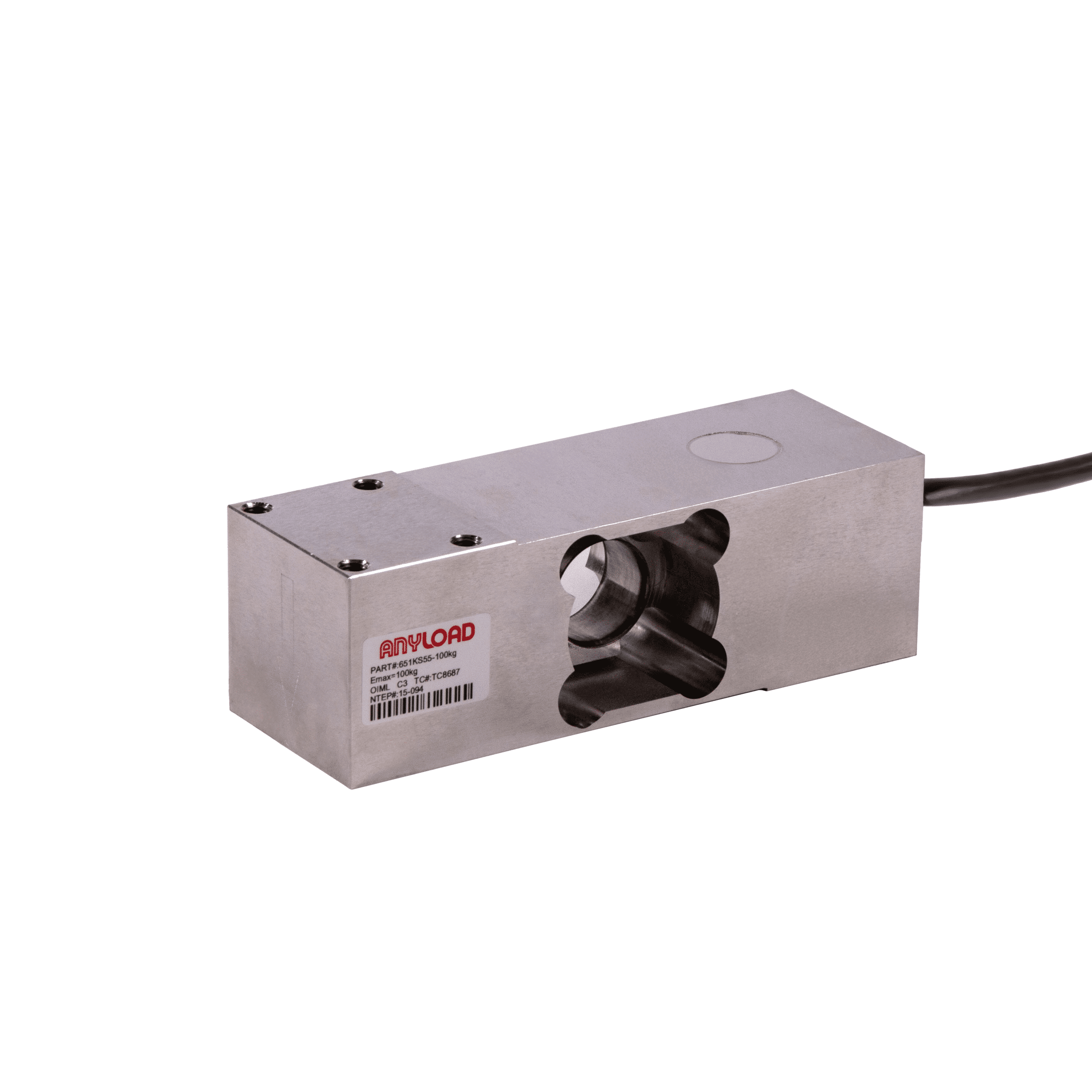

ANYLOAD 651KS55 Stainless Steel Single Point Load Cell
The ANYLOAD 651KS55 Single Point Load Cell offers reliable weighing for a broad array of industrial applications. Ingress protection rated IP68, it can withstand the harshest environments. Available in 100kg rated capacity, it has imperial threads for mounting.
Other capacities and configurations available—please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $3,453.60 |
10-24 | 10 - 24 | 5% $3,280.92 |
25-49 | 25 - 49 | 8% $3,177.31 |
50-99 | 50 - 99 | 11% $3,073.70 |
100+ | 100 + | 15% $2,935.56 |
SKU: 651KS55-1
Category: Single Point
ANYLOAD 651KS55 Key Features
- Stainless steel
- Imperial threads
- Rated Capacity: 100kg
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
Available options: 651KS55-100kg
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 651KS55 Single Point Load Cell Specifications
Rated Capacity | 100kg |
Reference Max. Platform Size | 610mm x 700mm |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.03% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.03% |
Creep in 30 minutes | < ± 0.02% |
Input Resistance | 1100Ω ± 50Ω |
Output Resistance | 960Ω ± 50Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
651KS55 Stainless Steel Single Point Load Cell Datasheet | |
OIML Certificate of Conformity NTEP Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 651KS55 Interchangeable Cross Reference*
Manufacturer | Equivalent Model |
HBM | PW16, metric thread version* |
Mettler Toledo | MT1260 |
Vishay Tedea-Huntleigh | 1260, metric thread version* |
*HBM PW16, Mettler Toledo MT1260, and Vishay Tedea-Huntleigh 1260 are made of aluminum.
