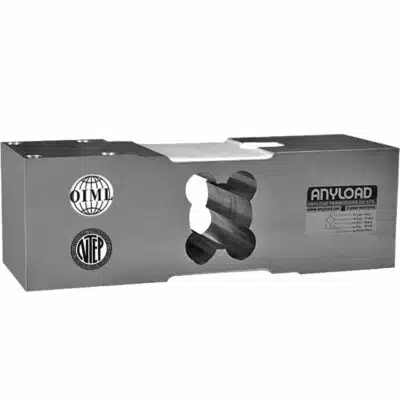

ANYLOAD 108MA Aluminum Single Point Load Cell

$215.00

The ANYLOAD 108MA is widely used in process supervision systems, packaging devices, and other mid-weight industrial weighing applications. Available in capacities from 50kg to 660kg, its aluminum body is rated IP66. Complies with multiple industry standards. The 108MA has metric mounting threads; for imperial, see the 108MAUN.

Clear
SKU: 108MA Category:

ANYLOAD 108MA Key Features

  • Aluminum material
  • Thread: Metric
  • Rated Capacities: 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • NTEP 1:4000 Class III, Single Cell certified from 200kg-2t
  • OIML C3 certified from 50kg-500kg
  • CE and RoHS certified

Available options: 108MA-50kg, 108MA-75kg, 108MA-100kg, 108MA-150kg, 108MA-200kg, 108MA-250kg, 108MA-300kg, 108MA-500kg, 108MA-635kg, 108MA-660kg

Please contact us with any product interfacing inquiries.



Specifications

ANYLOAD 108MA Load Cell Specifications

Rated Capacity 50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg
Reference Max. Platform Size 610mm x 700mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.017%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0023% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Documents

108MA Single Point Load Cell Datasheet
Certificate Icon

CE Certificate of Conformity
RoHS Certificate of Conformity
OIML Certificate of Conformity
NTEP Certificate of Conformance

Interchangeable Cross Reference

ANYLOAD 108MA Interchangeable Cross Reference

Manufacturer Equivalent Model
Mettler-Toledo MT1260
