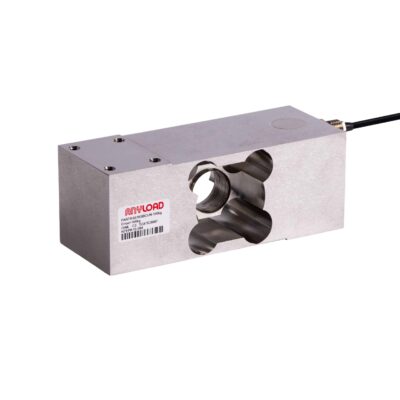

ANYLOAD 651KSBCUN Stainless Steel Single Point Load Cell
The 651KSBCUN Single Point Load Cell is an OIML-certified C9 model, offering the highest accuracy for legal-for-trade applications, particularly in lower-capacity needs like hopper scales and process weighing. Built with IP68/69K-rated stainless steel, it ensures durability and reliable performance even in extreme conditions, making it ideal for use in the chemical, agri-food, and pharmaceutical industries. Available in 100kg, 250kg, and 500kg capacities, this load cell delivers exceptional results across a wide range of industrial weighing applications.
Other capacities and configurations may be available—please contact us to learn more.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,654.00 |
| 10 - 24 | $1,571.30 |
| 25 - 49 | $1,521.68 |
| 50 - 99 | $1,472.06 |
| 100 + | $1,405.90 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 651KSBCUN Features
The 651KSBCUN Single Point Load Cell is an OIML-certified C9 model, renowned as the highest accuracy legal-for-trade load cell globally, particularly in the 100kg rated capacity. Constructed with IP68/69K stainless steel, it is designed to endure the most demanding environments, offering reliable performance in temperatures ranging from 14°F to 122°F, with a 150% safe overload capacity. This load cell is ideal for a wide range of lower-capacity applications, including hopper scales and process weighing, and is particularly suited for use in the chemical, agri-food, and pharmaceutical industries. The innovative design ensures accurate and consistent results even under extreme conditions. Available in 100kg, 250kg, and 500kg capacities, the 651KSBCUN is a versatile and robust solution for industrial weighing needs.
- Material: 17-4PH Stainless Steel
- Imperial threads for mounting
- Rated Capacities: 100kg, 250kg, 500kg
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- NTEP 1:5 000 Class III, Single Cell
- 100kg: OIML MAA C9, Y=18 000
- 250kg-500kg: OIML MAA C4, Y=26 000
- IP Rating: IP68/69K
Available Options: 100kg, 250kg & 500kg.
Please contact us with any product-related or implementation-related questions.
Specifications
ANYLOAD 651KSBCUN Load Cell Specifications
| Rated Capacity | 100kg, 250kg, 500kg |
| Reference Max. Platform Size | 800mm x 800mm |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 960Ω ± 50Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0030% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
651KSBCUN Stainless Steel Single Point Load Cell Datasheet |
 |
OIML Certificate of Conformity NTEP Certificate of Conformity |
3D Drawing
 |
651KSBCUN-(100-250)kg |
Interchangeable Cross Reference
ANYLOAD 651KSBCUN Equivalents
| Manufacturer | Equivalent Model | Info |
| Flintec | PCB | PCBC with imperial thread |
| Rice Lake | RLPCBC-60 |
