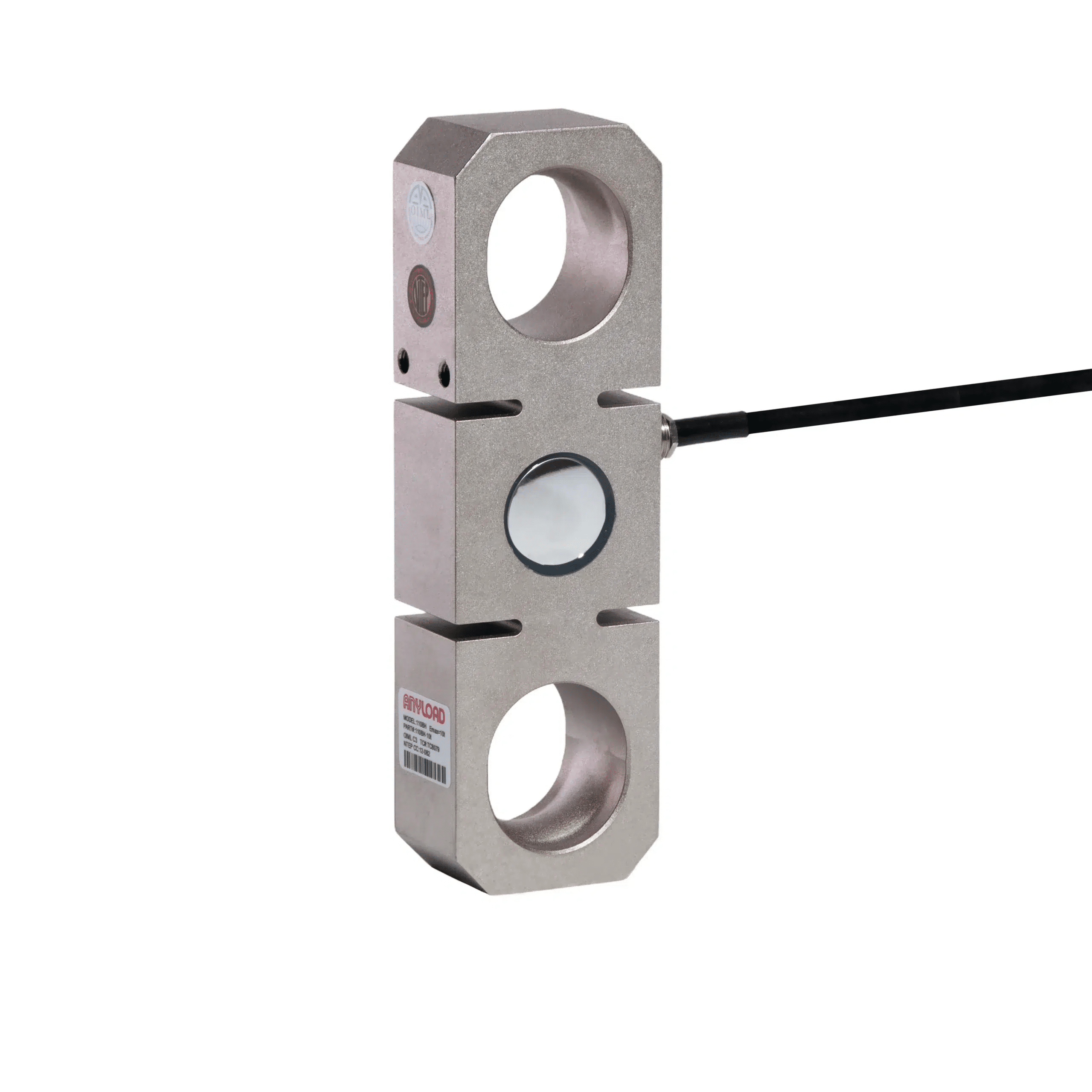

ANYLOAD 110BH Alloy Steel Tension Link Load Cell
The ANYLOAD 110BH tension link load cell is a leading solution in tension link engineering, offering unparalleled accuracy and toughness in a compact design. Certified by NTEP and OIML. It features a patented internal structure that provides natural linearity, superior temperature compensation, and vibration resistance. Constructed from IP67-rated nickel-plated alloy steel with a 400% breaking overload, the 110BH ensures long-lasting, reliable performance. Commonly used in crane scales and OEM applications, it is ideal for industries like fishing, agriculture, construction, and manufacturing. Available in capacities from 1t to 100t, it meets CE and RoHS standards.
Other capacities and configurations available – please contact us with any questions
| Quantity | Price |
|---|---|
| 1 - 9 | $352.00 |
| 10 - 24 | $334.40 |
| 25 - 49 | $323.84 |
| 50 - 99 | $313.28 |
| 100 + | $299.20 |
ANYLOAD 110BH Features
The ANYLOAD 110BH tension link load cell sets the standard in tension link engineering, combining exceptional accuracy, durability, and a compact design. Its NTEP and OIML-certified construction features a patented internal structure that ensures natural linearity, superior temperature compensation, and vibration resistance, making it ideal for precise weight measurements in challenging environments. Built from nickel-plated alloy steel and rated IP67 for environmental protection, the 110BH offers a robust 400% breaking overload capacity, providing an excellent safety factor and years of reliable service. This tension link is widely used in crane scales, OEM applications, and systems requiring cable and towing tension measurement, particularly in the fishing, agricultural, construction, and manufacturing sectors. Available in capacities ranging from 1t to 100t, it is also certified by CE and RoHS, underscoring its adherence to leading international safety and quality standards.
- Material: Alloy Steel
- Rated Capacities: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
- Full-Scale Output: 3mV/V ± 10%
- Safe Overload: 150% of full scale
- Breaking Overload: 400%
- IP Rating: IP67
- NTEP 1:3000 Class III, Single Cell certified from 1t-2t
- NTEP 1:5000 Class III, Multiple Cell certified from 1t-2t
- NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
- OIML MAA C3, Y=15 000 certified from 1t-10t
- OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
- CE and RoHS-certified
Available Options: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t & 100t.
Installation Modules: ANYLOAD 110BHM1, 110BHM3
Specifications
ANYLOAD 110BH Specifications:
| Rated Capacity | 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t |
| Full-Scale Output | 3mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400O ±20O |
| Output Resistance | 350O ± 3O |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ± 0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Nominal Temperature Range (°C) | -10°C to 40°C |
| Nominal Temperature Range (°F) | 14°F to 104°F |
| Safe Overload | 200% of full scale |
| Breaking Overload | 400% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
110BH Datasheet |
 |
NTEP Certificate of Conformance OIML Certificate of Conformity CE Certificate of Conformity RoHS Certificate of Conformity |
