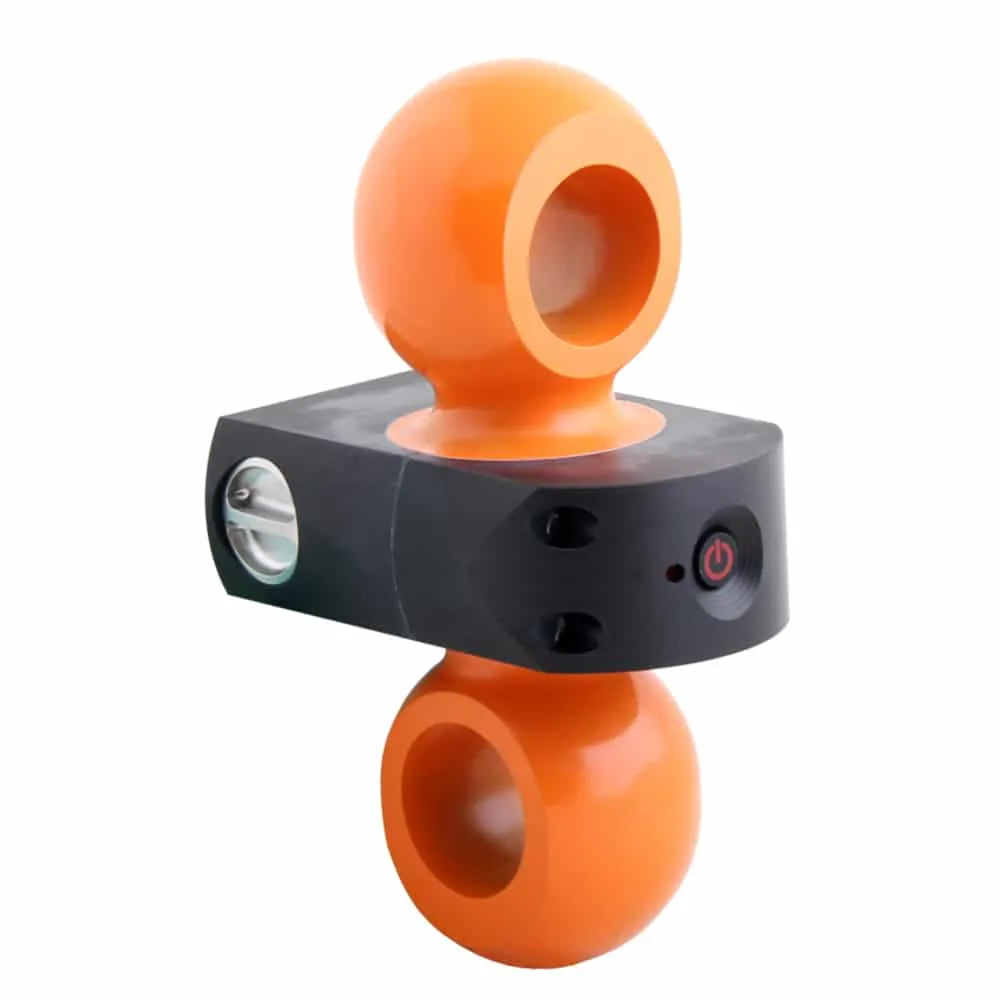

ANYLOAD 110RH Alloy Steel Tension Link or Dynamometer

$838.00$18,740.00

The ANYLOAD 110RH Alloy Steel Tension Link or Dynamometer is powder-coated alloy steel with PVC protection for an IP67 ingress protection rating. Available in 500kg to 100t capacities.

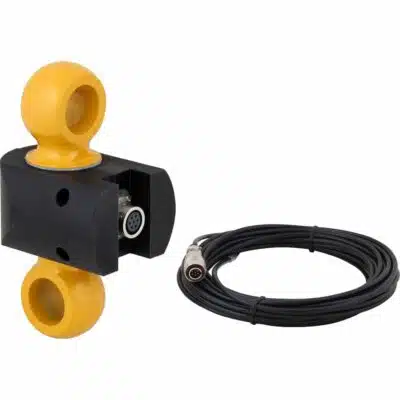

Comes with IP67 connector and 1000Ω cable (indicated in model number with -T2 extension). Variations with “-ST” extension in model number have larger mounting holes for Crosby G-2130 or ANYLOAD SBX shackles; see data sheet for exact dimensions.

Clear
SKU: 110RH Category:

ANYLOAD 110RH Key Features

  • Alloy steel material with PVC Protection
  • Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
  • IP67; Withstands water immersion and dust
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 200% of full scale
  • Breaking Overload: 500% of full scale
  • IP Rating: IP67
  • NTEP 1:3000 Class III, Single Cell certified from 500kg-3t
  • NTEP 1:5000 Class III, Multiple Cell certified from 500kg-3t
  • NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
  • OIML MAA C3, Y=15 000 certified from 1t-10t
  • OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
  • CE and RoHS certified
Available capacities:

Standard version: 110RH-T2-500kg, 110RH-T2-1000kg, 110RH-T2-2000kg, 10RH-T2-20000kg, 10RH-T2-30000kg, 10RH-T2-50000kg, 10RH-T2-100000kg

“-ST” version with larger mounting holes: 110RH-ST-T2-500kg, 110RH-ST-T2-1000kg, 110RH-ST-T2-2000kg, 110RH-ST-T2-3000kg, 10RH-ST-T2-5000kg, 10RH-ST-T2-10000kg, 10RH-ST-T2-20000kg

Additional purchase options include:
  • load cell with an indicator (“-FP7” option),
  • load cell with indicator and case (“-FP2” option), or
  • load cell with indicator, case and two SBX shackles (“-FP1” option).

Note: -FP1 option available only with -ST configured load cells in capacities 10,000kg or less. -FP2 and -FP7 options available only for -ST configured load cells in capacities 10,000kg or less plus standard configured load cells in 30t-100t capacities. Please contact us with any product questions.

Specifications

110RH Alloy Steel Tension Link or Dynamometer Specifications

Rated Capacity 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.030%
Hysteresis Error < ± 0.030%
Creep in 30 minutes < ± 0.030%
Input Resistance 1100Ω ± 50Ω
Output Resistance 1000Ω ± 10Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.004% of Cn/k
Temperature Effect on Zero Balance < ± 0.0050% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-22°F to 158°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 200% of full scale
Breaking Overload 500% of full scale
Seal Type Environmentally sealed
IP Rating IP67

Technical Documents

110RH Tension Link or Dynamometer Datasheet
110RH Tension Link or Dynamometer Handheld Indicator Manual (V.2.06)
110RH Tension Link or Dynamometer Manual (V.2.18)
Certificate Icon CE Certificate of Conformity
NTEP Certificate of Conformance
RoHS Certificate of Conformity
OIML Certificate of Conformity
Calibration Tutorial Video
User Settings Video
