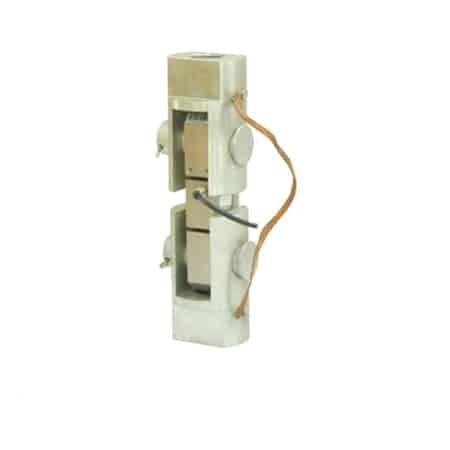

ANYLOAD 110BHM3 Alloy Steel Tension Weigh Module



The ANYLOAD 110BHM3 Weigh Module improves measurement accuracy in tension-weighing applications using the 110BH Tension Link Load Cell. It is available in 1t, 2t and 5t capacities.

Quantity Price
1 - 9 $258.00
10 - 24 $245.10
25 - 49 $237.36
50 - 99 $229.62
100 + $219.30
Tacuna Systems Price Match Guarantee
SKU: 110BHM3 Category: Brand:

ANYLOAD 110BHM3 Weigh Module Features

This alloy steel tension weighs module supports self-checking, allowing for multi-directional movements. Its patented hole design without threaded connections provides high repeatability measurement results.

  • Assembles: 110BH Tension Link Load Cell
  • Material: Alloy steel
  • Capacities: 1t-10t
  • NTEP 1:3000 Class III, Single Cell certified from 1t-2t
  • NTEP 1:5000 Class III, Multiple Cell certified from 1t-2t
  • NTEP 1:6000 Class III, Multiple and Single Cell certified from 5t-10t
  • OIML MAA C3, Y=15000 certified load cells from 1t-5t
  • OIML MAA C3, Y=13500 certified load cell for 10t
  • CE , RoHS and Ex certified load cells
  • Self-checking and patented hole design provide high repeatability
  • Multi-directional movements
  • Tension loading design with no threaded connection in between
  • Load cell is not included

Available Options: 1t, 2t & 5t.

Other capacities and configurations may be available – please contact us with any questions.

Specifications

ANYLOAD 110BHM3 Weigh Module Specifications

The 110BHM3 assembles the ANYLOAD 110BH tension-link load cell. Load-cell performance specifications:

Assembles 110BH Tension-Link Load Cell (load cell not included)
Module Material Alloy Steel
Rated Capacities 1t, 2t, 5t
Full-Scale Output 3.0mV/V
Zero Balance <±0.02mV/V
Non-linearity <±0.017%
Repeatability <±0.017%
Hysteresis Error <±0.017%
Creep in 30 minutes <±0.023%
Input Resistance 400Ω
Output Resistance 350Ω
Insulation Resistance >2GΩ (50V DC)
Nominal Temperature Range -10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 400% of full scale
Load Cell Seal Type Environmentally Sealed
IP Rating IP67

Technical Documents

ANYLOAD 110BHM3 Tension Weigh Module Datasheet
NTEP Certificate of Conformance
OIML Certificate of Conformity
CE Certificate of Conformity
RoHS Certificate of Conformity
110BHM3 Installation Guide

Assembly Drawings
