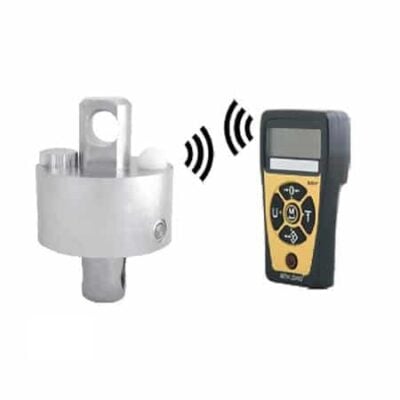

ANYLOAD 110ES-WL-HP Salt Waterproof Stainless Steel Casting Wireless Crane Scale
The ANYLOAD 110ES-WL-HP is designed for marine environments (in fact it was field tested by Canadian fishermen!). Its saltwater-proof stainless steel casting delivers a IP68/69K rating for highest levels of intrusion protection in tension load measuring. It features a waterproof power switch with indicating light and battery cap, and antenna secured by a silicon enclosure.
The 110ES-WL-HP is available in standard capacities from 1t to 30t. Use with the 805HP-WL wireless indicator (sold separately). Other capacities and configurations are available – please contact us for order information.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $2,376.00 |
10-24 | 10 - 24 | 5% $2,257.20 |
25-49 | 25 - 49 | 8% $2,185.92 |
50-99 | 50 - 99 | 11% $2,114.64 |
100+ | 100 + | 15% $2,019.60 |
ANYLOAD 110ES-WL-HP Wireless Crane Scale Features
- Enclosure Material: Stainless steel casting
- Accuracy: 1:5,000 maximum divisions
- Engineered Capacities: 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t
- Safe Overload: 200%
- Breaking Overload: 400%
- IP Rating: IP68/IP69K
- Frequencies: 433 Mhz (option -01 not available online – contact us to place an order), 915 Mhz (option -02)
- Transmission range is up to 30m
- Saltwater-proof power switch with indicating light
- Saltwater-proof battery cap
- Antenna protected by silicon enclosure
- 805HP-WL Indicator and shackles sold separately
Available Options: 110ES-WL-HP-1t, 110ES-WL-HP-2.5t, 110ES-WL-HP-5t, 110ES-WL-HP-10t, 110ES-WL-HP-20t, 110ES-WL-HP-30t
Please contact us with any product-related questions.
Tacuna Systems Commitment
We strive to help our diverse customer base achieve their desired outcomes. As a small business, we take great pride in providing free consultation for product design & prototyping to ensure our valued clients have the right equipment to be successful. Our engineering specialists have extensive R&D experience in strain gauge load cell technology, and we are well-known for our in-house designed customizable signal conditioners and amplifiers.
Specifications
ANYLOAD 110ES-WL Wireless Crane Scale General Specifications
Capacity | 1t, 2.5t, 5t, 10t, 20t, 30t, 50t, 100t |
Division 1t-10t | 1:5000 |
Division 20t | 1:4000 |
Division 30t | 1:3000 |
Division 50t-100t | 1:5000 |
Enclosure Material | 304 Stainless steel |
Working Temperature | -10°C to 40°C/14°F to 104°F |
Safe Overload | 200% of full scale |
Breaking Overload | 400% of full scale |
Power Supply | 3 x AA Rechargeable Alkaline Batteries |
Operation Time | Up to 100 hours at 20°C on the lowest power set up |
IP Rating | IP68/69K |
Technical Documents
110ES-WL-HP Datasheet | |
110ES-WL-HP- Manual 805HP-WL Indicator Manual |
|
CE Certificate of Conformity |
Tutorial Videos
User Settings Video Calibration Tutorial Video |
