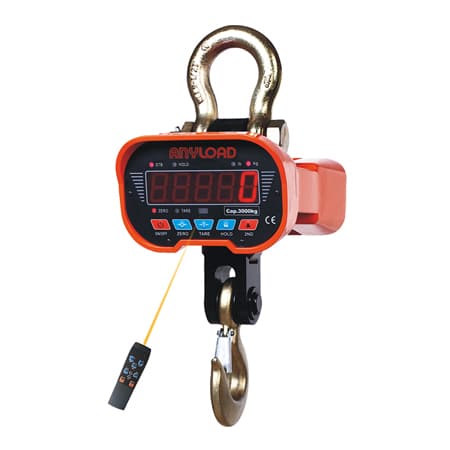

ANYLOAD OCSA3 General Purpose Crane Scale
The ANYLOAD OCSA3 general purpose crane scale delivers reliable and accurate weight measurements in high-capacity applications. Available in 20Klb, 20Klb, and 40Klb options, the OCSA3 has a die-cast aluminum waterproof enclosure, alloy steel load receptor, heavy duty bow shackle and eye hook (fixed). This crane scale features a 38mm high, 5-digit LED display for easy reading of measurements and infrared remote control that allows operation from a distance. The OCSA3 offers auto overload alarm at 100%F.S.+9e, HOLD function, auto power-off function, tare in/tare out, and unit switching between kilograms and pounds. Not sure which crane scale is right for your application? See this comparison chart.
$1,973.00 – $4,370.00
ANYLOAD OCSA3 Crane Scale Features:
-
- Capacities: 20Klb, 30Klb, 40Klb
- Accuracy Class: OIML III
- Safe Overload: 120% of full scale
- Breaking Overload: 400% of full scale
- Aluminum die-casting scale enclosure
- Alloy steel load receptor
- Heavy duty bow shackle
- Heavy duty eye hook
- Selectable units: kilograms (kg), pounds (lb)
- Rechargeable 6V/10Ah battery included
- Power adaptor 9V/1500mA included
- Infrared remote control included
ANYLOAD OCSA3 Crane Scale General Functions:
-
- Zero
- Tare
- Hold
- Low battery alarm
- Battery supervision
- Overload alarm
- Auto calibration
- 3-point linearity correction
- Unit switch: kg/lb
- Gravity acceleration
- Resolution switch
- Auto-off set
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD OCSA3 Crane Scale Specifications:
| Capacity | 20Klb, 30Klb, 40Klb |
| Accuracy Class | OIML III |
| Enclosure Material | Die-casting aluminum |
| Display Type | LED |
| Display Digits | 5 digits |
| Display Height | 38mm/1.5in |
| Working Temperature | -10°C to 40°C/14°F to 104°F |
| Safe Overload | 120% of full scale |
| Breaking Overload | 400% of full scale |
| Rechargeable Battery (included) | 6V/10Ah |
| Battery Life | 100 hours |
| Power Adaptor (included) | 9V/1500mA |
| Remote Distance | 10m/32.8′ |
Technical Documents
 |
OCSA3 Crane Scale Brochure and Data Sheet |
 |
OCS Series Crane Scale Technical Manual OCS Series Crane Scale User Guide |
|
Crane Scale Comparison Chart |
