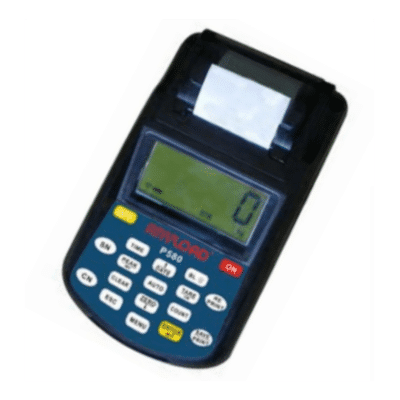

ANYLOAD P580 Wireless Display
The ANYLOAD P580 wireless display is a portable indicator with printer, and supports two way wireless communications with the ANYLOAD OCSD Dynamometer. It has a concealed antenna and supports 2.4 GHz for wireless transmission of up to 30 meters over 128 available channels. Both USB and RS232 ports allow data output to computers. Furthermore, the P580 wireless display is centered on an ARM based 32 bit MCU for high performance, real time efficiency, and low power and low voltage operation.
$1,265.00
In stock
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,265.00 |
10-24 | 10 - 24 | 5% $1,201.75 |
25-49 | 25 - 49 | 8% $1,163.80 |
50-99 | 50 - 99 | 11% $1,125.85 |
100+ | 100 + | 15% $1,075.25 |
ANYLOAD P580 Wireless Display Features:
- Portable size with printer
- LCD display with backlight
- Display indicates battery power status, tare, zero, peak and stable
- Relay Setting: One programmable set point is available for safety or other control applications
- Includes both RS-232 serial port and USB port for flexible connection with laptops
- Updating Rate: 12 times per second
- Radio Frequency: 2.4 GHz wireless transmission up to 70 meters with 128 available channels
- Power Supply: Rechargeable industrial Ni-H battery
- Battery Life: Can be recharged for 1000 cycles or fully charged can provide 50 hours of normal operation
- Fujitsu FTP-680 high speed thermal printer
- CPU: ARM based 32 bit MCU combines with high performance, real time capability, low power and low voltage operation
- Concealed antenna as integral part of the design
- Indicator can only be used with the OCSD Dynamometer
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD P580 General Specifications:
Dimensions | 220mm x 130mm x 90mm/8.66in x 5.1in x 3.54in |
Communication | Wireless two-way |
Display | LCD |
Digits | 5 digits |
Digit Height | 25mm/0.98in |
Antenna | Concealed |
Updating Rate | 12 times per second |
Radio Frequency | 2.4GHz |
Transmission Distance | 70m/229.66′ |
Working Temperature | -20°C to 60°C/-4°F to 140°F |
Power Supply | Ni-H battery |
Battery Life | 50 hours |
Printer | Fujitsu FTP-680 thermal printer |
Technical Documents
P580 Wireless Display Datasheet | |
P580 Wireless Display Manual |
