Description
This indicator is compatible with all Tacuna Systems load cells – all capacities, all brands. However, this AnyLoad digital weighing indicator must be calibrated to the paired load cell. This can be done by the user with a known load (2/3 of full capacity) or with Tacuna Systems Load Cell Calibration Service.
AnyLoad 805HP Hand Held Load Cell Indicator Features:

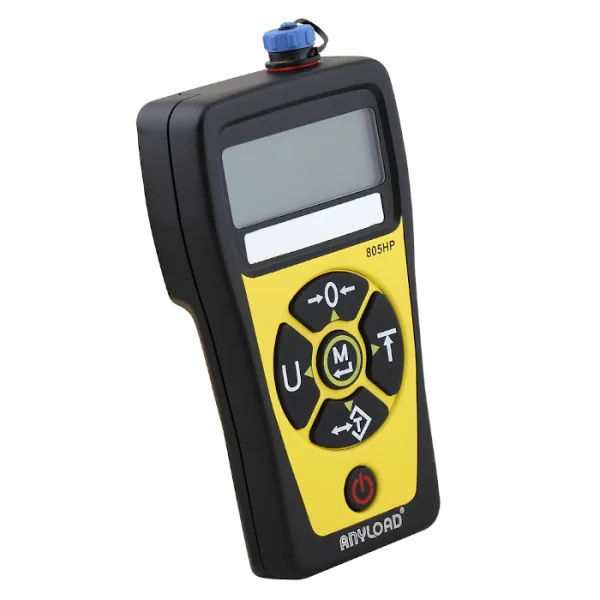

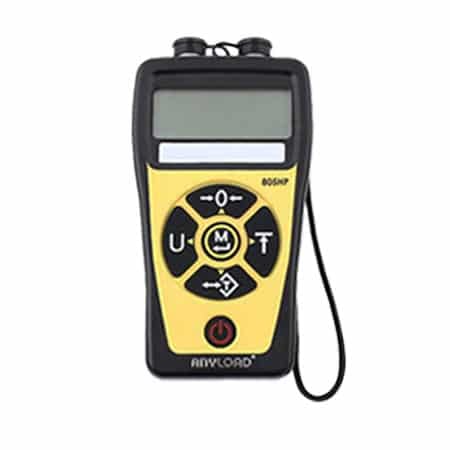

The ANYLOAD 805HP digital hand held load cell indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805HP drives up to eight 350O or sixteen 700O load cells. With an ABS wash down enclosure IP65, the 805HP ANYLOAD digital weighing indicator is ideal for the Transportation, Entertainment, Aerospace, Militarily, Food, Agricultural industry, and many other applications.
- Exceptional long battery life up to 1,600 hours with 3-AA batteries
- LED backlight and FSTN LCD with 178 degree view angle
- Material: ABS
- IP Rating: IP65
- LCD 6-digit display with LED backlight
- Non-volatile memory for reliable data saving
- Units of Measurement: kg, g, t, lb, Klb, N, kN, oz, user-defined unit
- Configurable 2 set-points for precaution and warning
- User-selectable display interval
- Overloading recording
- 10 user-selectable analog-to-digital converting frequency
- Weight calibration and digital calibration
- User-selectable auto power-off and power-saving timing
AnyLoad 805HP Hand Held Load Cell Indicator General Specifications:
| Enclosure Material | ABS |
| Units of Measurement | kg, g, t, lb, Klb, N, kN, oz, user-defined unit |
| Working Humidity | ?90% RH |
| Working Temperature | -20°C to 70°C/-4°F to 158°F |
| Dimensions (mm) | 170mm x 98mm x 34mm |
| Dimensions (in) | 6.7in x 3.9in x 1.34in |
| Display Type | LCD |
| Display Digits | 6 digits |
| Digit Height | 16.8mm/0.66in |
| Display Dimensions | 72mm x 27mm/2.8in x 1.1in |
| Power Supply | 3* AA Alkaline Batteries |
| IP Rating | IP65 |
AnyLoad 805HP Hand Held Load Cell Indicator Technical Specifications:
| Division: | 0.001; 0.002; 0.005; 0.01; 0.02; 0.05; 0.1; 0.2; 0.5; 1; 2; 5; 10; 20; 50 |
| Tare Range: | 100% of Full Scale |
| Max. Number of Load Cells: | 8×350? or 32×1000? ( with a junction box ) |
| Max. Power Consumption: | 5mW |
| Communicate Interface | None. RS-232 can be added upon request. |
AnyLoad AnyLoad 805HP Hand Held Indicator Functions:
- Auto Zero Tracking
- Auto Zero
- Manual Zero
- Hold
- Peak Hold
- TARE
- RS-232 (upon request)
AnyLoad AnyLoad 805HP Hand Held Indicator Datasheet:
AnyLoad AnyLoad 805HP Hand Held Indicator Manuals:
Download manual ( Software version 2.06 )
Download manual ( Software Version 2.18 )
AnyLoad AnyLoad 805HP Hand Held Indicator Tutorials:
