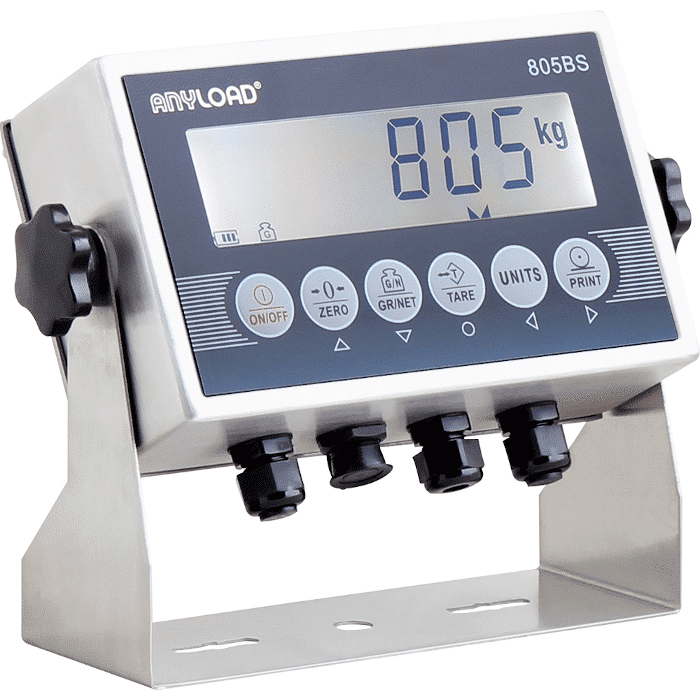

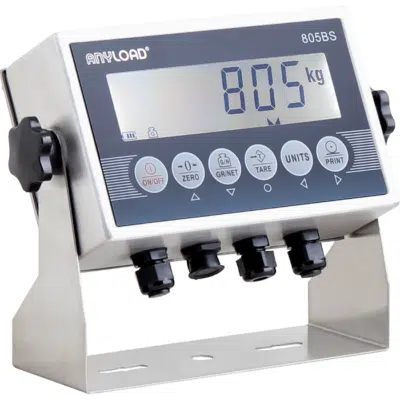

AnyLoad 805BS Stainless Steel Digital Weight Indicator

$359.95$515.95

Clear

Description

This indicator is compatible with all Tacuna Systems load cells – all capacities, all brands. However, this indicator must be calibrated to the paired load cell. This can be done by the user with a known load (2/3 of full capacity) or with Tacuna Systems Load Cell Calibration Service.

AnyLoad 805BS Digital Weight Indicator Features:

The ANYLOAD 805BS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805BS has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and drives up to eight 350O or sixteen 700O load cells. With a SS304 stainless steel wash down enclosure, the 805BS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and is NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.

  • NTEP III/IIIL, 10 000 approved
  • Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LCD 6-digit display
  • Power Supply: AC adaptor or rechargeable lithium batteries 7.2V/2000mA
  • Parameter and calibration settings are performed on the front panel
  • Units of Measurement: kg, lb, g, oz, lb:oz conversion
  • Improper operation and fault indication
  • Two way relay signal output
  • Equipped with RS-232 connecting port
  • Print functions with programmable print format
  • Built-in clock
  • Functions:Auto Zero Scale, Auto Zero Tracking, PEAK, COUNT, Zero Scale, TARE, GROSS/NET
  • Password Function to provide easy method in adjusting the parameter settings without opening the back panel. Applicable only if legal for trade is not required

AnyLoad 805BS-B-H Digital Weight Indicator General Specifications:

Enclosure MaterialStainless steel SS304
Units of Measurementkg, lb, g, oz, lb:oz conversion
Working Humidity90% RH
Working Temperature-10°C to 40°C/14°F to 104°F
Dimensions (mm)226mm x 71mm x 161mm
Dimensions (in)8.9in x 2.8in x 6.34in
Display TypeLCD
Display Digits6 digits
Digit Height25.4mm/1in
Display Dimensions143mm x 41mm/5.6in x 1.6in
Power SupplyAC adaptor, 100-240VAC, 12VDC 2.5A, 50-60Hz
IP RatingIP66



AnyLoad 805BS-B-17 Digital Weight Indicator General Specifications:

Enclosure MaterialStainless steel SS304
Units of Measurementkg, lb, g, oz, lb:oz conversion
Working Humidity90% RH
Working Temperature-10°C to 40°C/14°F to 104°F
Dimensions (mm)226mm x 71mm x 161mm
Dimensions (in)8.9in x 2.8in x 6.34in
Display TypeLCD
Display Digits6 digits
Digit Height25.4mm/1in
Display Dimensions143mm x 41mm/5.6in x 1.6in
Power SupplyExternal AC linear adaptor, 100-240VAC, 12VDC 400mA, 50-60Hz and Rechargeable Lithium Battery 7.4V/4000mA
IP RatingIP66



AnyLoad 805BS-TN-B (Lite Version) Digital Weight Indicator General Specifications:

Enclosure MaterialStainless steel 2Cr13
Units of Measurementkg, lb, g, oz, lb:oz conversion
Working Humidity90% RH
Working Temperature-10°C to 40°C/14°F to 104°F
Dimensions (mm)226mm x 71mm x 161mm
Dimensions (in)8.9in x 2.8in x 6.34in
Display TypeLCD
Display Digits6 digits
Digit Height25.4mm/1in
Display Dimensions143mm x 41mm/5.6in x 1.6in
Power SupplyExternal AC linear adaptor, 100-240VAC, 12VDC 400mA, 50-60Hz and Rechargeable Lithium Battery 7.4V/4000mA
IP RatingIP66



AnyLoad 805BS-B-H Digital Weight Indicator Technical Specifications:

Division1, 2, 5, 10
Tare Range100% of Cn
Maximum Number of Load Cells8×350O or 16×700O
Maximum Power Consumption6VA
Excitation Voltage5V DC ± 5%
Fusible Link Fuse (slow blow)1A
Communication InterfaceRS232
Backlight DisplayManual
Update Rate (Display Rate)Options from 250ms to 1sec
Print InterfaceSerial interface



AnyLoad 805BS-B-17 Digital Weight Indicator Technical Specifications:

Division1, 2, 5, 10
Tare Range100% of Cn
Maximum Number of Load Cells8×350O or 16×700O
Maximum Power Consumption6VA
Excitation Voltage5V DC ± 5%
Fusible Link Fuse (slow blow)1A
Communication InterfaceRS232
Backlight DisplayAlways ON / Always OFF / Auto-off ( 10 sec to 60 sec)
Update Rate (Display Rate)20ms
Print InterfaceSerial interface



AnyLoad 805BS-TN-B (Lite Version) Digital Weight Indicator Technical Specifications:

Division1, 2, 5, 10
Tare Range100% of Cn
Maximum Number of Load Cells8×350O or 16×700O
Maximum Power Consumption6VA
Excitation Voltage5V DC ± 5%
Fusible Link Fuse (slow blow)1A
Communication InterfaceRS232
Backlight DisplayAlways ON / Always OFF / Auto-off ( 10 sec to 60 sec)
Update Rate (Display Rate)20ms
Print InterfaceSerial interface



AnyLoad 805BS-B-H Digital Weight Indicator Functions:

  • Auto Zero Scale
  • Auto Zero Tracking
  • Normal Weighing
  • Peak
  • Counting
  • Zero Scale
  • Tare
  • Gross / Net
  • Alarm when load exceeds the maximum load capacity of the scale or load cell
  • RS-232 and RS-485
  • Two-way relay signal output
  • Print Interface (PS805)
  • Labrador software for parameter and calibration settings



AnyLoad 805BS-B-17 Digital Weight Indicator Functions:

  • Auto and Manual Zero Scale
  • Auto Zero Tracking
  • Normal Weighing
  • Peak
  • Counting
  • Zero Scale
  • Tare
  • Gross / Net
  • Alarm when load exceeds the maximum load capacity of the scale or load cell
  • Password to provide easy method in adjusting the parameter settings without opening the back panel. Only if legal for trade is not required
  • RS-232 and RS-485
  • Two-way relay signal output
  • Print Interface (PS805)
  • No Labrador software support

AnyLoad 805BS-TN-B (Lite Version) Digital Weight Indicator Functions:

  • Auto and Manual Zero Scale
  • Auto Zero Tracking
  • Normal Weighing
  • Peak Mode is not equipped
  • Counting
  • Zero Scale
  • Tare
  • Gross / Net
  • Alarm when load exceeds the maximum load capacity of the scale or load cell
  • Password to provide easy method in adjusting the parameter settings without opening the back panel. Only if legal for trade is not required
  • RS-232 and RS-485
  • Relay function is not equipped
  • Print Interface (PS805)
  • No Labrador software support

AnyLoad 805BS Digital Weight Indicator Approvals:

pdf- NTEP Certificate of Conformance

pdf- Measurement Canada Approval

pdf- CE Certificate of Conformity – Electromagnetic Compatibility Directive

pdf- CE Certificate of Conformity – Low Voltage Directive

AnyLoad 805BS Digital Weight Indicator Datasheets:

Download data sheet for 805BS-B-H

Download data sheet for 805BS-B-17

AnyLoad 805BS Digital Weight Indicator Manuals:

Download manual for 805BS Series

Download manual for 805BS-B-17 & 805BS-TN-B

AnyLoad 805BS Digital Weight Indicator Tutorial Videos:

Peak Tutorial Video

Count Tutorial Video

Calibration Tutorial Video
