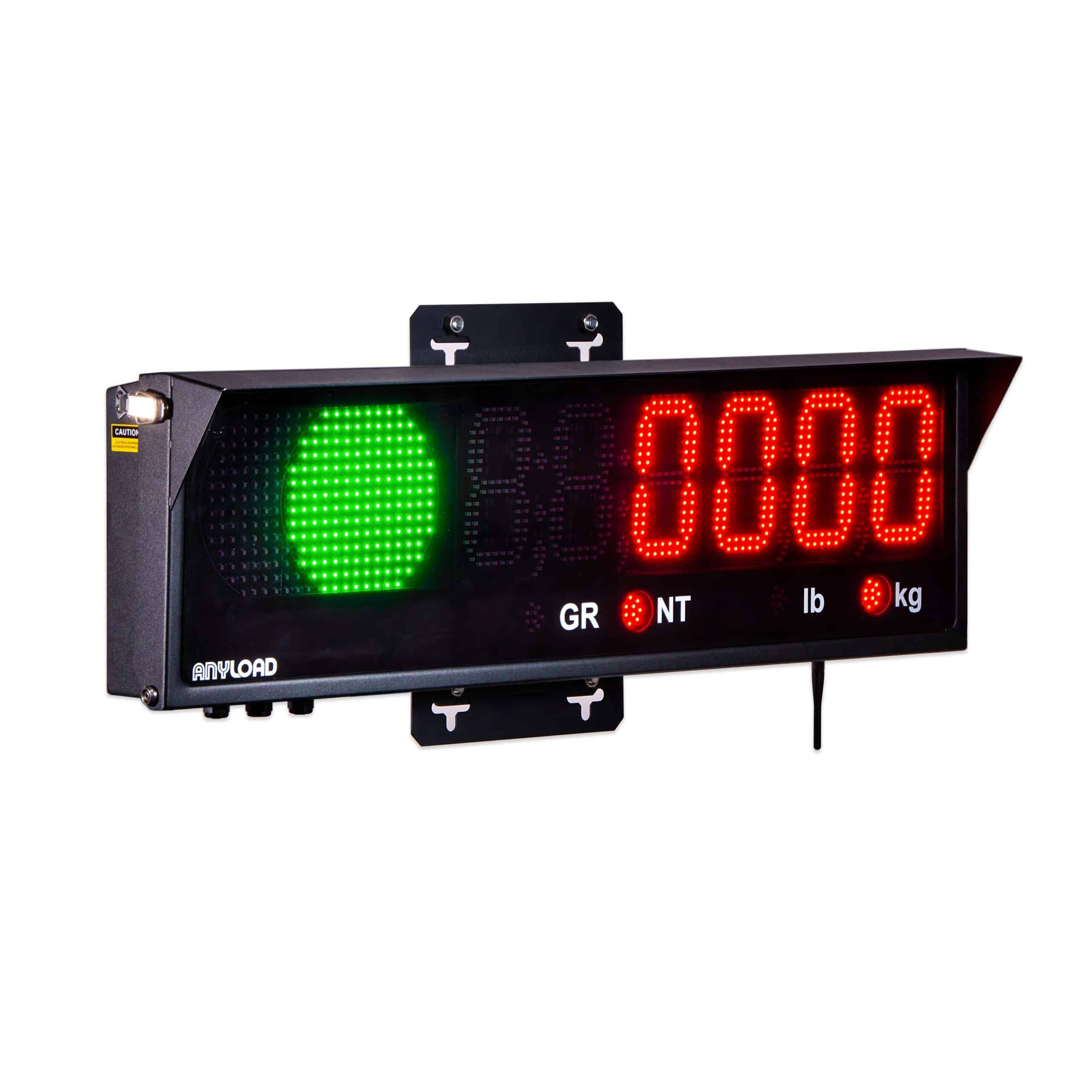

  • photo of anyload large L E D remote display for scales

ANYLOAD 808BH-WL Remote Display

The ANYLOAD 808BH-WL remote display is durable, highly visible and easy to install. It features a six-digit high-intensity LED display (5″/125mm tall) with wide viewing angle, and red/green semaphore. This display offers seamless compatibility with other indicators and weighing instruments with its auto-learn baud rate and auto-learn protocol features. The 808BH-WL is weatherproof, offering an IP65 rating. The wireless option of the 808BH, this product bundle includes the WL900 Transmitter/Receiver.

$3,873.00

Quantity Price
1 - 9 $3,873.00
10 - 24 $3,679.35
25 - 49 $3,563.16
50 - 99 $3,446.97
100 + $3,292.05
Tacuna Systems Price Match Guarantee

ANYLOAD 808BH-WL Wireless Remote Display Key Features

Easy-to-Read Display:

  • 6 digits, 5” height, 7 segment
  • Double-row discrete LED
  • Wide viewing 120° angle
  • Built-in Red & Green Light
  • Auto brightness adjustment
  • Mirror display

RED / GREEN Lane Control Options:

  • Two manual input switches in solid or blinking modes
  • Pre-installed software utility programs
  • Serial ASCII commands sent by programmable indicators
  • Custom-ordered software protocols

Smart Auto-Learn Technology:

  • Automatically detect indicator string protocols
  • Automatically set communication baud rates

Communication:

  • Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
  • Output: Echo out and addressable multi display configuration
  • Wireless option of the 808BH: includes WL900 Transmitter/Receiver

Enclosure/Exterior:

  • Weather proof design (IP65)
  • Visor to protect from sun or rain shade
  • External membrane keypad
  • Hinged front cover
  • Wall & Pole mount kit
  • Breather vent

Contact us with any design or support inquiries prior to purchase.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Specifications

808BH-WL Wireless Remote Display Specifications

Display Digits 5” (125mm) height, 6 digits, 7 segments, with 6″ (150mm) RED/GREEN round lights
Digit Segments 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED
Micro Controller 50MHZ ARM Cortex M® processor
Status Indication 4 annunciators for GR, NT, lb and kg (some versions in kg and t)
Decimal Point 2 decimal point places with choice of dot or coma
Membrane Keypad 4 keys dome membrane keypad
Brightness Control 550nm ambient light sensor to adjust brightness in day and night
Communication Ports 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
Communication Baud Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate
String Protocol Auto learn to detect string protocol and parse incoming string
Echo Port 2 independent serial ports for RS232 and RS422/RS485
Printer Port 1 independent transmit port for non-legal for trade printing applications
Digital Output 1 form C relay output rated at 2A / 60VDC
Digital inputs 2 independent dry contact switch inputs
Main Enclosure Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications
Power Supply Input: 100-240VAC, 1.2A, 50/60Hz;     Output: 12VDC, 5.0A, 60W encapsulated
Power Consumption 120VAC @ 0.7A / 12VDC @ 3.0A ( 75W AC / 35W DC ) typical
Operating Temperature -40°F to 120°F (-40°C to 50°C)
Operating Humidity 20%RH to 90%RH
Enclosure Ventilation GORE ® breather vent to avoid condensation
Physical Dimensions 32.5” W X 9.8” H X 3.5” D (825mm X 250mm X 89mm)
Total Weight 12.5 kg (27 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately
Industry Approvals UL/CSA approved class II power supply
Certificate of Conformity CE Marking, EMC and LVD Directives
