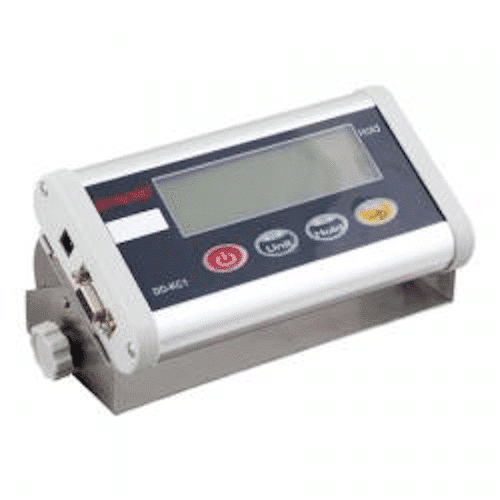

ANYLOAD DD-KC1 Aluminum/PVC Digital Weight Indicator
The ANYLOAD DD-KC1 is a general purpose digital weight indicator for scales that provides high accuracy and reliability with multiple functions. It has a 5-digit, 0.7″ LCD readout (kg/lbs) and RS232 communication.
This digital weight indicator is compatible with all Tacuna Systems load cells – all capacities, all brands. However, this indicator must be calibrated to the paired load cell. This can be done by the user with a known load (2/3 of full capacity) or with Tacuna Systems Load Cell Calibration Service.
$143.00
| Quantity | Price |
|---|---|
| 1 - 9 | $143.00 |
| 10 - 24 | $135.85 |
| 25 - 49 | $131.56 |
| 50 - 99 | $127.27 |
| 100 + | $121.55 |
ANYLOAD DD-KC1 Key Features:
- 0.7” 5-digit LCD display with high contrast auto backlit
- Unit button to switch among “kg”, “lb” and counting mode
- Able to hold weight value
- Print function ready
- Counting mode
- Auto zero tracking
- Selectable auto shut off options
- 2 alarm setting
- Auto calibration
- Stability indication
- RS 232 port
Please contact us with any product inquiries.
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD DD-KC1 Indicator Specifications
| Enclosure Material | Aluminum/PVC |
| Units of Measurement | kg, lb |
| Capacity x Readability | 3000e |
| Working Temperature | –10°C to 40°C / 14°F to 104°F |
| Dimensions | 175mm x 92mm x 35mm 7in x 3.5in x 1.4in (without mount) |
| Display Type | High Contrast Auto Backlit LED |
| Display Digits | 5 digits |
| Display Height | 17.8mm / 0.7in |
| Power Supply | 4 x AAA Batteries (not included) AC Adaptor 110V 50/60Hz (included) |
| Gross Weight | 0.8kg / 1.6lb (without batteries) |
Technical Documents
 |
DD-KC1 Datasheet |
 |
DD-KC1 Manual |
1 review for ANYLOAD DD-KC1 Aluminum/PVC Digital Weight Indicator
Only logged in customers who have purchased this product may leave a review.
Gregory DeNinno (verified owner) –
Simple and inexpensive. Easy to use.
