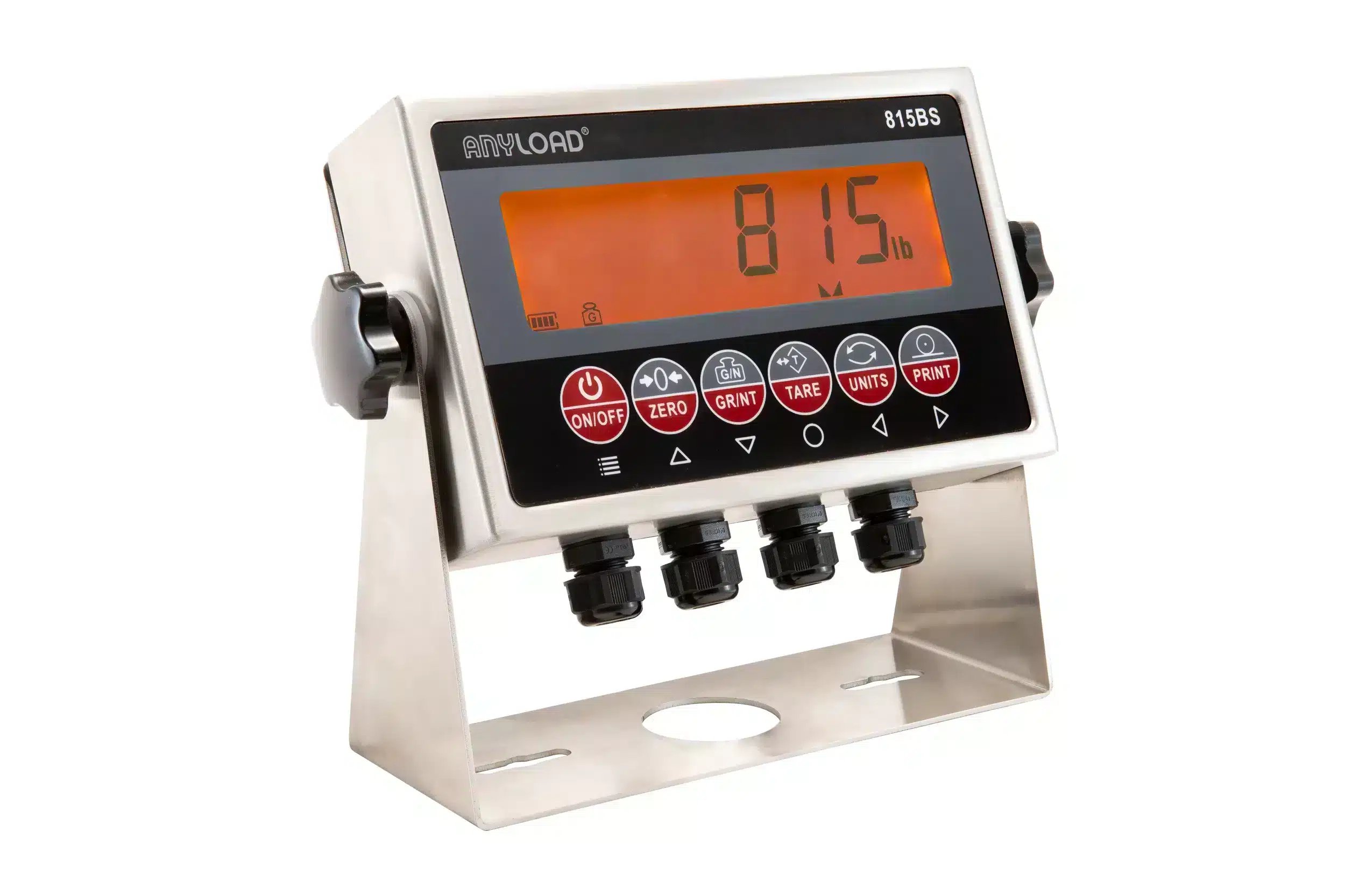

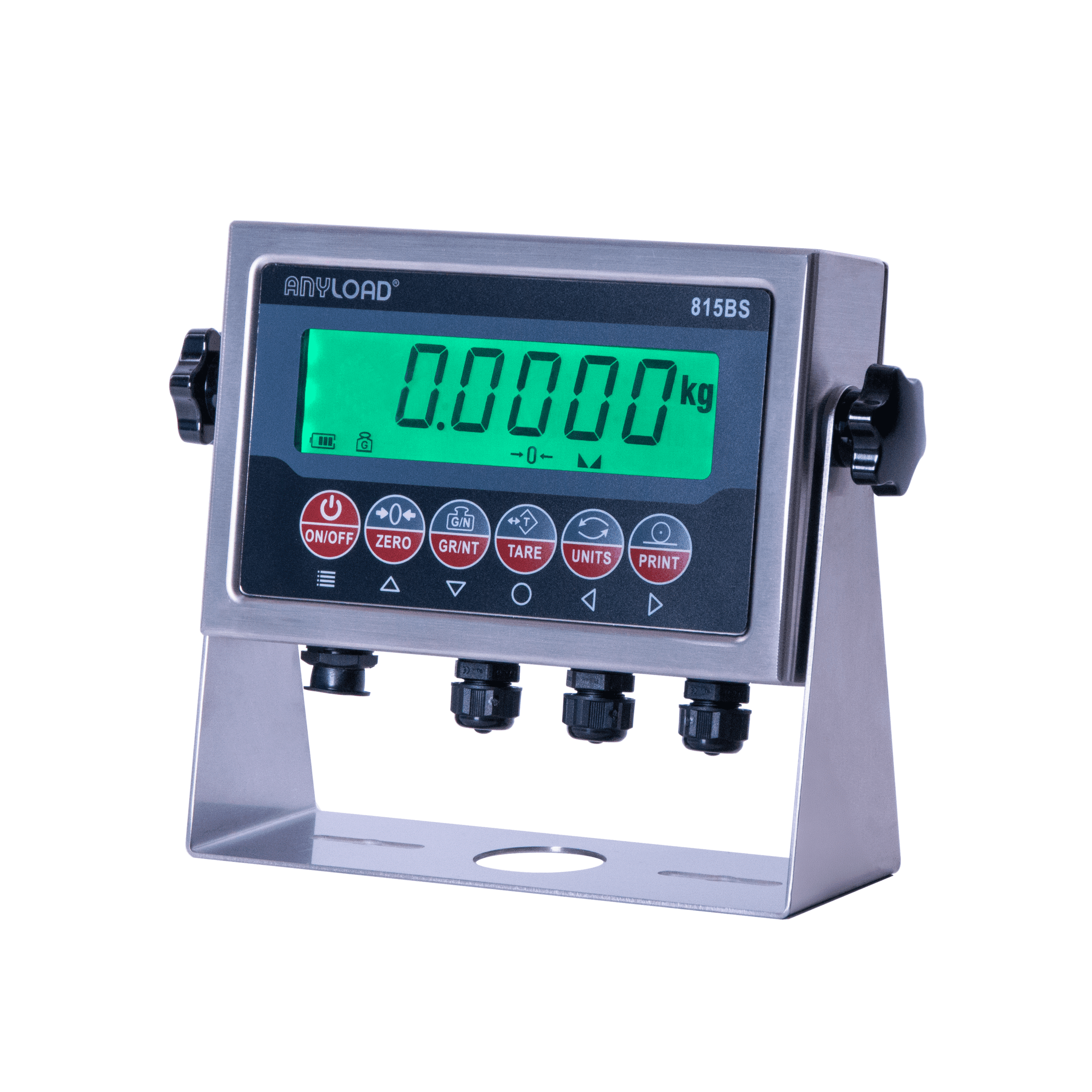

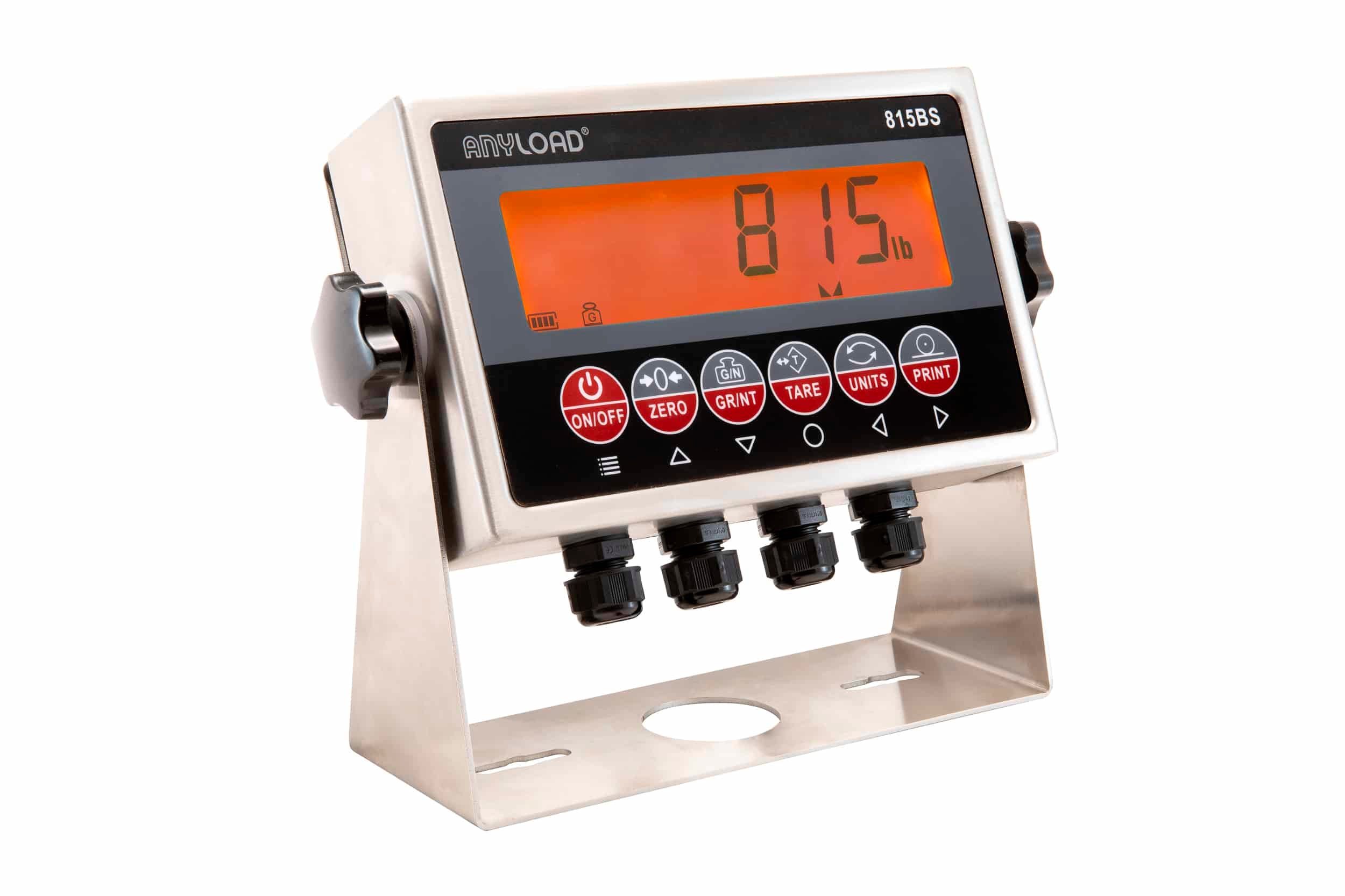

ANYLOAD 815BS Digital Weight Indicator
The ANYLOAD 815BS LCD weight indicator is a high-accuracy, multi-function industrial weighing device. It supports up to eight 350Ω or sixteen 700Ω load cells through a junction box. Features include a password-protected calibration menu, audit trail function, and advanced analog, digital, and average filtering. Housed in a durable SS304 stainless steel wash-down enclosure, it is IP66-rated, making it ideal for the food, agricultural, and industrial sectors.
$790.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $790.00 |
10-24 | 10 - 24 | 5% $750.50 |
25-49 | 25 - 49 | 8% $726.80 |
50-99 | 50 - 99 | 11% $703.10 |
100+ | 100 + | 15% $671.50 |
ANYLOAD 815BS Digital Weight Indicator Features
The ANYLOAD 815BS LCD weight indicator is a high-accuracy, multi-function industrial weighing device designed for reliable performance. It can drive up to eight 350Ω or sixteen 700Ω load cells through a junction box, making it suitable for a wide range of applications. The 815BS features a password-protected calibration menu and electronic sealing via the audit trail function, ensuring secure and accurate measurements. Additionally, it offers advanced analog, digital, and average filtering to enhance signal precision. Encased in a durable SS304 stainless steel wash-down enclosure, the 815BS is IP66-rated, making it ideal for use in the food, agricultural, and industrial sectors. This robust design ensures the indicator withstands harsh environments while maintaining high accuracy and reliability.
- NTEP Legal for Trade Approved
- Material: Stainless steel SS304
- IP Rating: IP66
- 1.0”, 6 digits, 7 segments, LCD display
- Tri-color backlight: green, red and amber
- Indication of four units of measurements: kg, lb, oz, and g
- Indication of gross, net, and tare
- Indication of stability and center of zero
- Easy wiring screw terminals
- Weight, peak, set point, and piece counting
- Password-protected setup and calibration menu
- Physical and electronic sealing via audit trail function
- Two set point output relays
- Advance analog, digital, and average filtering
- Two independent RS232 serial communication ports
- UL-approved external wall adapter
- Weatherproof stainless steel enclosure, NEMA4X / IP66
- Breather vent to avoid condensation inside
- Built-in lithium battery with internal charger
- Built-in clock
Available Options: 815BS-B-21E
This indicator is compatible with all brands and capacities of load cells in Tacuna Systems’ catalog. Note that it must be calibrated to the paired load cell. Purchasers can perform this calibration with a known load (2/3 of full capacity). Alternatively, Tacuna Systems can pair the indicator with the load cell–select our Load Cell Calibration Service with purchase.
Please contact us with any product inquiries.
Specifications
Power Supply | AC adaptor, 100VAC to 240 VAC, 50-60Hz | Built-in 10,000mAH internal rechargeable lithium battery |
Power Consumption | 120VAC @ 0.1A/12VDC @ 0.5A (10W AC/5W DC) typical |
Excitation Voltage | 5V DC ± 5% |
Number of Load Cells | Up to 4×350Ω; 8×700Ω |
Input Range | Up to 19mV/4mV/V |
Sample Rate | 80 samples/second |
Resolution | 1,000,000 internal count, with 24bits resolution |
Division | Legal for trade 10,000d/20,000d |
Tare Range | 100% Full-Scale NTEP/MC/ OIML |
Communicate Interface | 2 x RS-232C |
Working Humidity | 20% RH to 90% RH |
Working Temperature | -10°C to 50°C / 15°F to 120°F |
Dimensions(WxHxD) | 9.1″ x 7.4″ x 3.0″(231 x 196 x 76mm) base included |
Technical Documents
815BS Datasheet | |
815BS Manual |
Approvals
NTEP Certificate of Conformance Measurement Canada Approval CE Certificate of Conformity – Electromagnetic Compatibility Directive CE Certificate of Conformity – Low Voltage Directive |
Tutorial Video
815BS Calibration Settings Video |
FAQ
Question | Answer |
---|---|
1. Where can I find the manual? | The manual can be found on the ANYLOAD website. Under each product Picture and Description, there will be the MANUAL tab with the corresponding user manual. |
2. What is the maximum capacity we can use for this indicator? | The capacity can be set in F1.7. The maximum capacity is 999999 in the unit that the device is set to. The unit can be changed in F1.3. |
3. What communication interfaces does the 815-series have? | There are two communication ports available as RS232-1 and RS232-2. The baud rate and data bit setting can be accessed in F5.0-F5.9. |
4. How does this calibrate and where can I find the instructions? | The calibration process can be found in the manual. All the calibration-related settings can be accessed in F3. |
5. How do we troubleshoot with the error codes? | Go to the Error Codes table in the manual. Please contact us if issues persist after following the manual diagnostics and instructions. |
