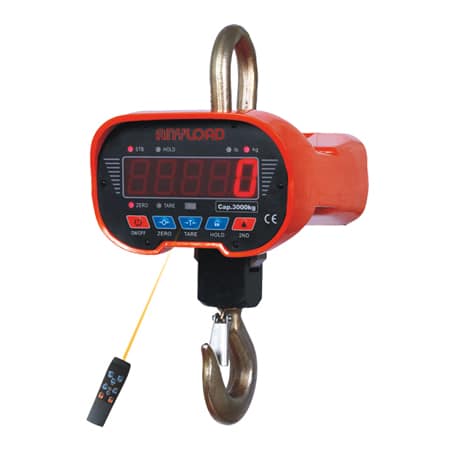

ANYLOAD OCSB3 Compact Crane Scale
The ANYLOAD OCSB3 compact crane scale delivers accurate and reliable weight measurements for smaller industrial applications. Available in 2k lb, 4k lb, 6k lb and 10 klb capacities, the OCSB3 waterproof enclosure is die-cast aluminum with a load receptor of alloy steel; it also has a heavy-duty fixed shackle and heavy-duty rotatable hook. The OCSB3 display is a 38mm 5-digit LED for high visibility, with an infrared remote control for operation from a safe distance, powered by a high capacity rechargeable battery. This scale offers HOLD function, idle mode, auto power-off function, auto overload alarm at 100%F.S.+9e, tare in/tare out, and unit switching between kg and lb. Not sure which crane scale is right for your application? See this comparison chart.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $1,083.00 |
10-24 | 10 - 24 | 5% $1,028.85 |
25-49 | 25 - 49 | 8% $996.36 |
50-99 | 50 - 99 | 11% $963.87 |
100+ | 100 + | 15% $920.55 |
ANYLOAD OCSB3 Compact Crane Scale Features:
-
- Capacities: 2Klb, 4Klb, 6Klb, 10Klb
- Accuracy Class: OIML III
- Safe Overload: 120% of full scale
- Breaking Overload: 400% of full scale
- Aluminum die-casting scale enclosure
- Alloy steel load receptor
- Heavy duty fixed shackle
- Heavy duty rotatable hook
- Selectable units: kilograms (kg), pounds (lb)
- Rechargeable 6V/10Ah battery included
- Power adaptor 9V/1500mA included
- Infrared remote control included
ANYLOAD OCSB3 Crane Scale Functions:
-
- Zero
- Tare
- Hold
- Low battery alarm
- Battery supervision
- Overload alarm
- Auto calibration
- 3-point linearity correction
- Unit switch: kg/lb
- Gravity acceleration
- Resolution switch
- Auto-off set
Tacuna System’s Commitment
We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.
Specifications
ANYLOAD OCSB3 Compact Crane Scale Specifications:
Capacity | 2Klb, 4Klb, 6Klb, 10Klb |
Accuracy Class | OIML III |
Enclosure Material | Die-casting aluminum |
Display Type | LED |
Display Digits | 5 digits |
Display Height | 38mm / 1.5in |
Working Temperature | -10°C to 40°C/14°F to 104°F |
Safe Overload | 120% of full scale |
Breaking Overload | 400% of full scale |
Rechargeable Battery (included) | 6V/10Ah |
Battery Life | 100 hours |
Power Adaptor (included) | 9V/1500mA |
Remote Distance | 10m / 32.8′ |
Technical Documents
OCSB3 Crane Scale Brochure and Data Sheet | |
OCS Series Crane Scale Technical Manual OCS Series Crane Scale User Guide |
|
Crane Scale Comparison Chart |
