• photo of an ANYLOAD FSP-HD floor scale

ANYLOAD FSP Series Mild Steel Floor Scales

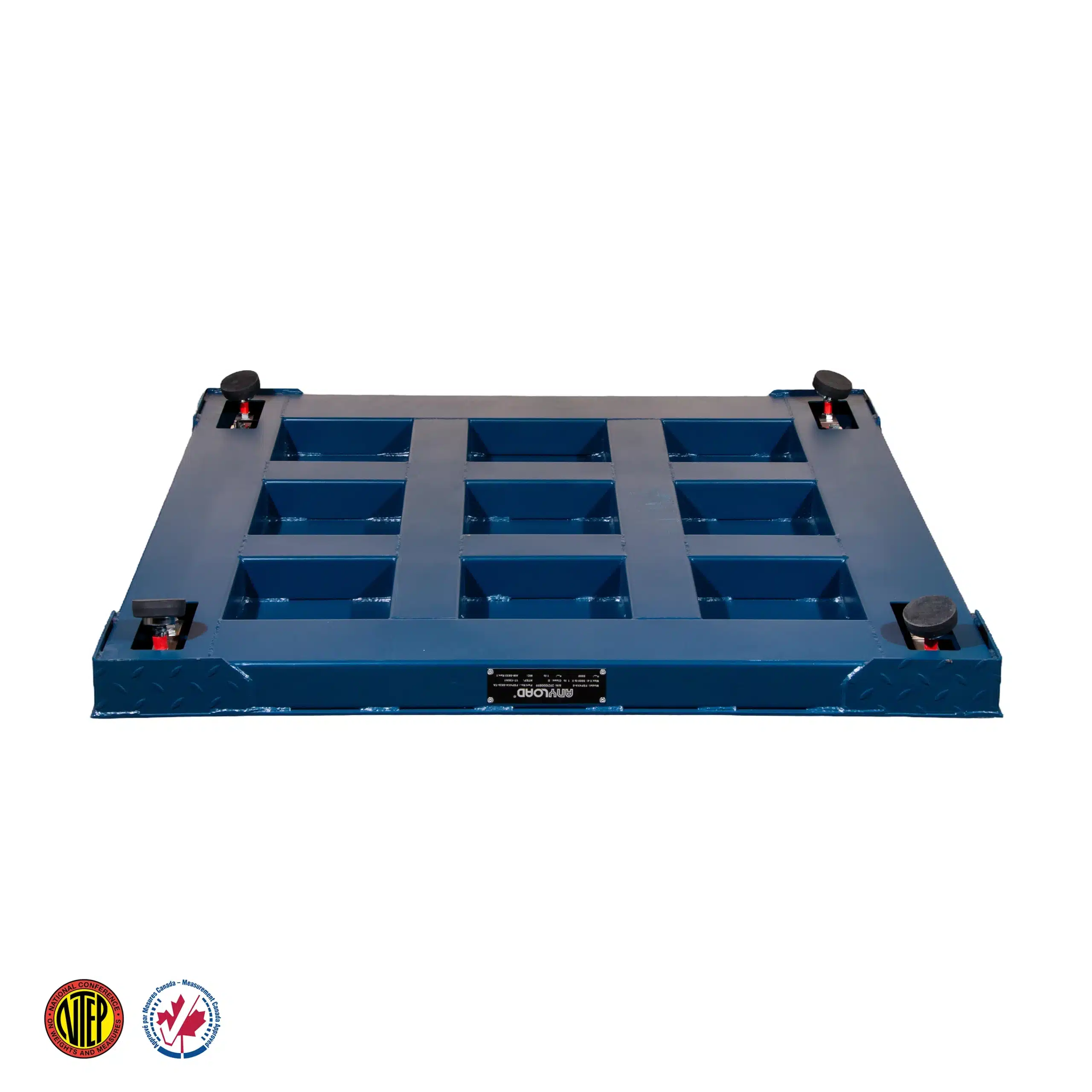

The ANYLOAD FSP mild steel floor scale features industrial grade durability. It is engineered with a rigid steel symmetrical grid channel frame and 5mm thick deck plate with checkered safety tread for slip resistance. ANYLOAD’s FSP series of floor scales include ANYLOAD alloy steel load cells, adjustable alloy steel feet and a built-in junction box. They also include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for easier change of scale location and for scale leveling. All ANYLOAD FSP floor scales are covered under warranty for a period of 5 years, are legal for trade and certified by Measurement Canada and NTEP.  The 4x4ft and 5x5ft sizes come in shell only versions without load cells. Custom configurations may be available upon request.

Quantity Price
1 - 9 $1,325.00
10 - 24 $1,258.75
25 - 49 $1,219.00
50 - 99 $1,179.25
100 + $1,126.25
Tacuna Systems Price Match Guarantee
SKU: FSP Category:

ANYLOAD FSP Floor Scale Key Features

    • NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
    • NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
    • OIML, MAA, Measurement Ukraine, CE, RoHS and ExNepsi certified load cells
    • NTEP certified floor scales: 3’x3′ to 5’x5′-1Klb to 10Klb Class III
    • Measurement Canada certified floor scales: 3×3-5Klb, 4×4-5Klb, 5×5-5Klb
    • Rigid steel channel frame
    • Pre-trimmed corners
    • Threaded eye bolt holes for easy lifting
    • Powder coating and grit blasted surface



ANYLOAD FSP Floor Scale Complete Set Includes:

    • 4 IP67 alloy steel 563YH load cells, OIML MAA & NTEP certified
    • 4 heavy duty swivel mild steel AMF swivel feet with removable rubber base
    • 2 eyebolts
    • 1 IP67 aluminum junction box J04EA-16

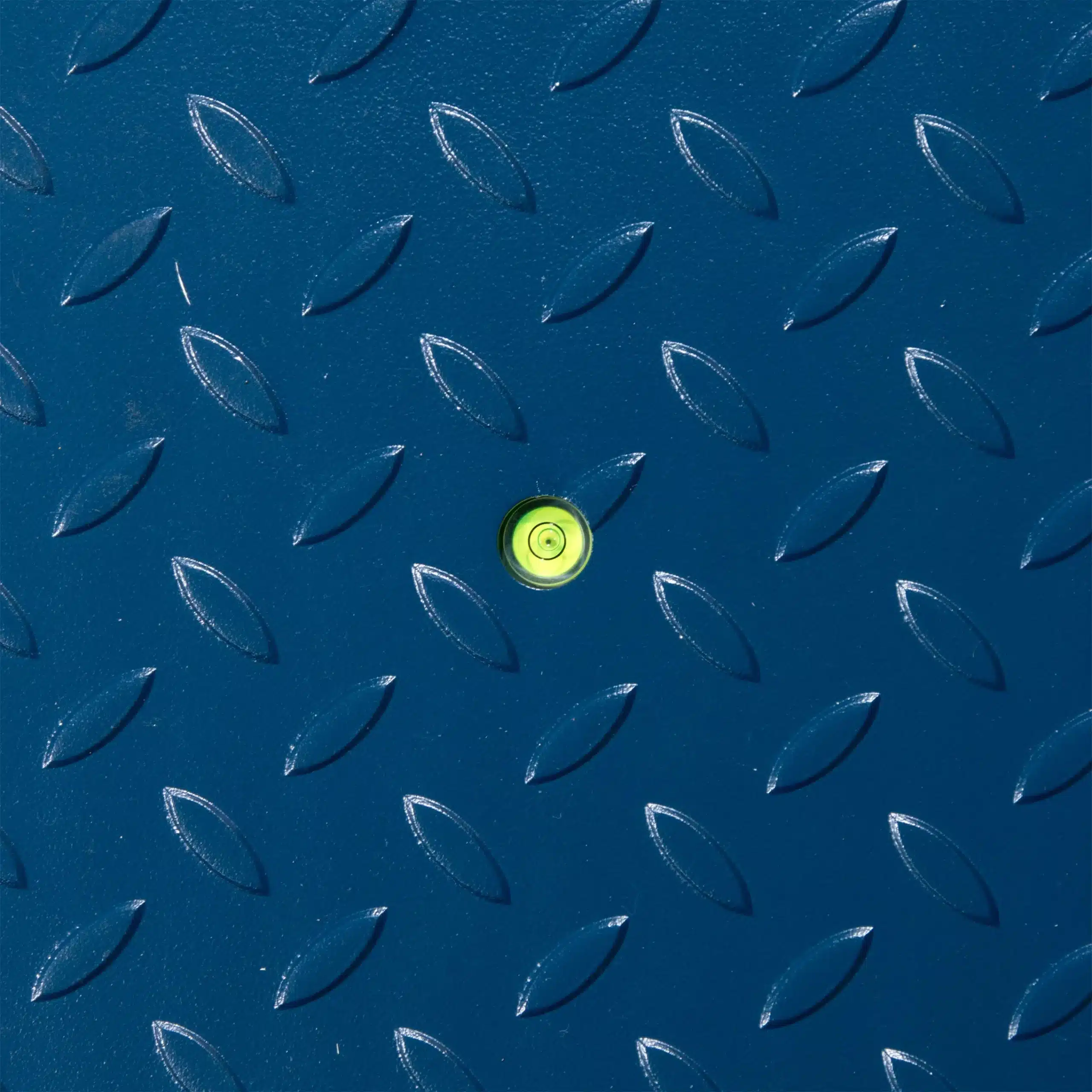

    • 1 level bubble



ANYLOAD FSP Floor Scale Shell Only Includes:

    • Load cell mounting bolts
    • 2 eyebolts for lifting
    • 1 level bubble

Available options:
FSP3x3-1Klb complete set, FSP3x3-5Klb complete set;
FSP4x4-5Klb complete set, FSP4x4-10Klb complete set, FSP4x4-shell only;
FSP5x5-5Klb complete set, FSP5x5-10Klb complete set, FSP5x5-10Klb-LE complete set, FSP5x5-shell only;
FSP4x4 and FSP5x5 also sold in bundle of 5 (complete set only) discounted.

Contact us for any inquiries on other configurations or options.

Specifications

ANYLOAD FSP Floor Scale Specifications:

Part Number Rated Capacities Load Cell Capacities Size (LxWxH) in Inches Weight
FSP3x3 1Klb 563YH-500lb 36″x36″x4″ 72kg / 159lb
FSP3x3 5Klb 563YH-2.5Klb 36″x36″x4″ 72kg / 159lb
FSP4x4 5Klb 563YH-2.5Klb 48″ X 48″ X 4″ 120kg / 265lb
FSP4x4 10Klb 563YH-SE5Klb 48″ X 48″ X 4″ 120kg / 265lb
FSP5x5 5Klb 563YH-2.5Klb 59″ X 59″ X 4″ 200kg / 441lb
FSP5x5 10Klb 563YH-SE5Klb 59″ X 59″ X 4″ 200kg / 441lb



Technical Documents

FSP Data Sheet
FSP Brochure
FSP Series Installation Guide
certificate icon NTEP Certificate of Conformance
certificate icon Measurement Canada Approval
certificate icon OIML Certificate of Conformity
certificate icon CE Certificate of Conformity
certificate icon RoHS Certificate of Conformity
certificate icon Explosion Protection Certificate of Conformity
certificate icon Measurement Ukraine Certificate
