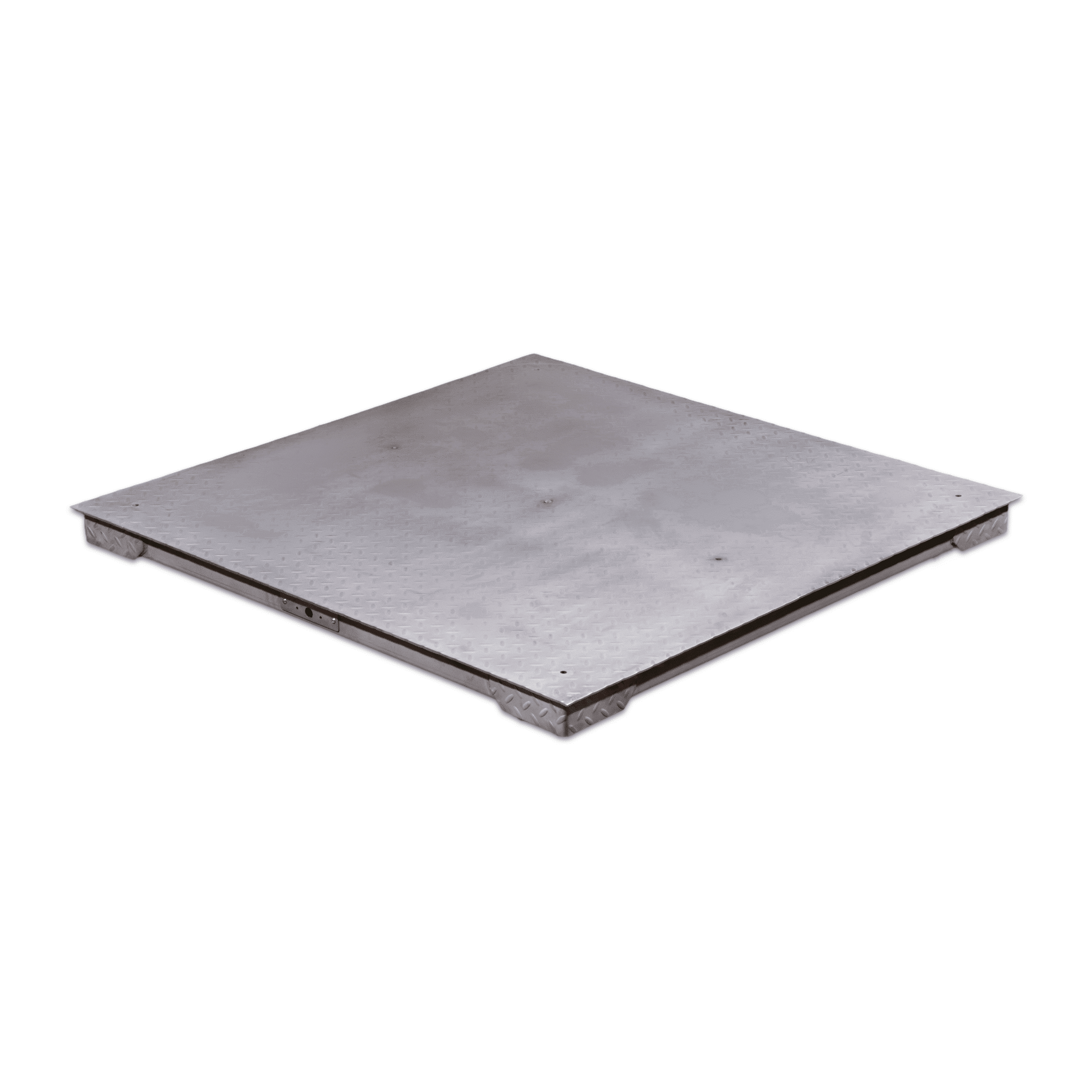

• photo of an ANYLOAD FSP-SS floor scale

ANYLOAD FSP-SS Series Stainless Steel Floor Scale

The ANYLOAD FSP-SS stainless steel floor scale features industrial grade durability. It is engineered with a rigid steel symmetrical grid channel frame and 4mm thick mild steel deck plate with checkered safety tread for slip resistance. ANYLOAD’s FSP-SS series of floor scales include ANYLOAD stainless steel load cells (IP68/69), adjustable carbon steel feet and a built-in junction box. They also include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for easier change of scale location and for scale leveling. All ANYLOAD FSP-SS floor scales are covered under warranty for a period of 5 years, are legal for trade and certified by Measurement Canada and NTEP.

Quantity Price
1 - 9 $3,240.00
10 - 24 $3,078.00
25 - 49 $2,980.80
50 - 99 $2,883.60
100 + $2,754.00
Tacuna Systems Price Match Guarantee
SKU: FSP-SS-S4 Category:

ANYLOAD FSP-SS Series Key Features

    • 17-4PH & 304 stainless steel heavy-duty industrial design
    • 4mm thick deck plate with checkered safety tread
    • Rigid steel channel frame
    • Factory finished corner error adjustment
    • NTEP 1:6 000 Class III, Multiple Cell certified load cells from 1Klb-10Klb
    • NTEP 1:3 500 Class III, Single Cell certified load cells from 1Klb-10Klb
    • CE, RoHS and ExNepsi certified load cells
    • Measurement Ukraine certified load cells
    • Measurement Canada certified floor scales: 3×3-5Klb, 3×4-5Klb,4×4-5Klb

ANYLOAD FSP-SS Complete Set Includes

    • IP68/IP69K stainless steel load cells 563YS, OIML MAA & NTEP certified
    • 4 swivel stainless steel feet AMFS4 with removable rubber base
    • 2 eyebolts
    • 1 IP65 stainless steel junction box J04ES-FS
    • 1 level bubble

ANYLOAD FSP-SS Shell Only Includes

    • Load cell mounting bolts
    • 2 eyebolts for lifting
    • 1 level bubble

Available options:
FSP3x3-SS-1Klb complete set, FSP3x3-SS-5Klb complete set, FSP3x3-SS-shell only;
FSP4x4-SS-5Klb complete set, FSP4x4-SS-10Klb complete set, FSP4x4-SS-shell only;
FSP5x5-SS-5Klb complete set, FSP5x5-SS-10Klb complete set;

please contact us with any questions.

Specifications

Part Number Rated Capacities Load Cell Capacities Size (LxWxH) in Inches Weight
FSP3x3-SS 1Klb 563YS-500lb 36″ x 36″ x 4″ 75kg / 165lb
FSP3x3-SS 5Klb 563YS-2.5Klb 36″ x 36″ x 4″ 75kg / 165lb
FSP4x4-SS-S4 5Klb 563YS-2.5Klb 48″ x 48″ x 4″ 120kg / 265lb
FSP5x5-SS-S4 5Klb 563YS-2.5Klb 59″ x 59″ x 4″ 200kg / 441lb
FSP5x5-SS-S4 10Klb 563YS-5Klb 59″ x 59″ x 4″ 200kg / 441lb

Technical Documents

FSP-SS Data Sheet
FSP-SS Brochure
FSP Series Installation Guide
certificate icon NTEP Certificate of Conformance
certificate icon Measurement Canada Approval
certificate icon OIML Certificate of Conformity
certificate icon CE Certificate of Conformity
certificate icon RoHS Certificate of Conformity
certificate icon Explosion Protection Certificate of Conformity
certificate icon Measurement Ukraine Certificate
