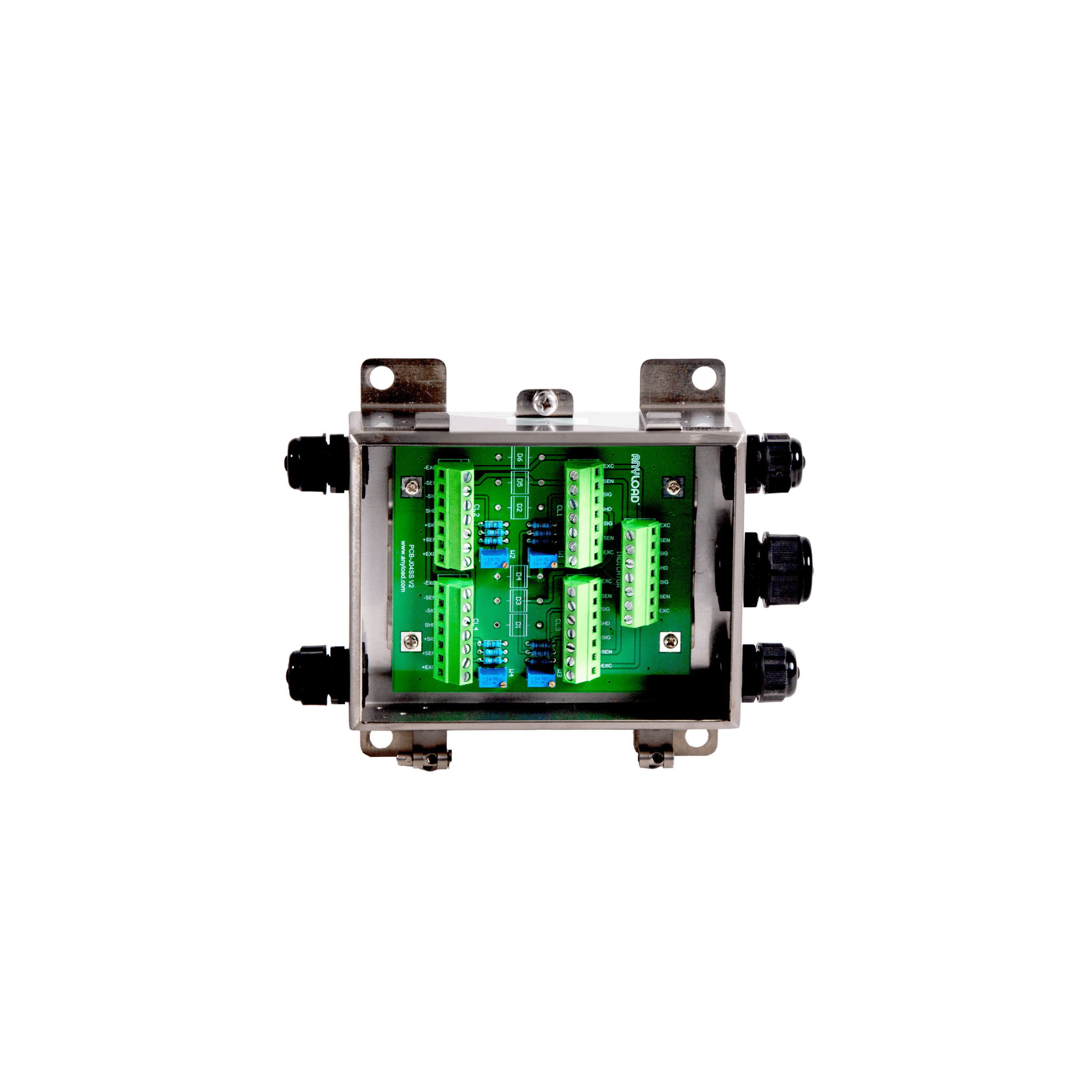

ANYLOAD J04ES and J04SS Stainless Steel Junction Box
The ANYLOAD J04ES and J04SS junction boxes are designed to combine 2 to 4 load cell inputs into a single output for precise multi-cell balance adjustment. Housed in durable SS304 stainless steel enclosures with an IP65 ingress protection rating, these boxes feature independent potentiometers for signal or excitation trim and are easy to install with ANYLOAD’s patented never-lost screw design. Optional lightning protection is available, and for more compact or expandable versions, consider the J04ES-FS, J04SS-FS, J04ES-E, and J04SS-E models.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $90.00 |
10-24 | 10 - 24 | 5% $85.50 |
25-49 | 25 - 49 | 8% $82.80 |
50-99 | 50 - 99 | 11% $80.10 |
100+ | 100 + | 15% $76.50 |
ANYLOAD J04ES and J04SS Features
The ANYLOAD J04ES and J04SS junction boxes are designed to accept inputs from 2 to 4 parallel load cells, combining their signals into a single output to ensure precise multi-cell balance adjustment. Housed in a robust SS304 stainless steel enclosure with an IP65 ingress protection rating, these junction boxes provide durability and protection against environmental factors. They feature independent potentiometers for either excitation trim or signal trim, enhancing the accuracy of the balance adjustment process. Installation is straightforward, thanks to ANYLOAD’s patented never-lost and integrated screw design. Optional lightning protection (“-II” extension on model number) is available for added safety in challenging environments. For applications requiring a more compact solution or extension ports for linking multiple junction boxes, consider the J04ES-FS, J04SS-FS, J04ES-E, or J04SS-E models.
- Enclosure Material: Stainless Steel SS304
- Number of cells: 2-4 single cells
- Trimming Options: Individual cells with excitation or signal trim
- Equipped with independent adjustable resistors
- Patented never lost and integrated screw design
- IP Rating: IP65
- Lightning protection options: J04ES-II and J04SS-II models
Available Options: J04ES, J04ES-II, J04SS, J04SS-II, J04ES Mother Board Only, J04ES-II Mother Board Only, J04SS Mother Board Only, J04SS-II Mother Board Only
Contact us with any questions about load cell interfacing.
Specifications
ANYLOAD J04ES and J04SS Specifications
Number of cells | 2-4 Single cells |
Input Cable Fittings | PG9: 4mm-8mm diameter cable |
Output Cable Fittings | PG13: 6mm-12mm diameter cable |
Trimming | Individual cells with excitation or signal trim |
Enclosure Material | Stainless Steel SS304 |
IP Rating: | IP65 |
Trimming Range
ANYLOAD J04ES or J04SS Trimming Range
Load Cell Resistance | Signal Trim | Excitation Trim |
---|---|---|
350Ω | 3.6% of output | 2.3% of output |
700Ω | 6.3% of output | 1.3% of output |
1000Ω | 7.0% of output | 1.0% of output |
Technical Documents
J04ES & J04SS Data Sheet | |
J04ES Manual Version 1.2 J04SS Manual Version 1.2 J04ES-II Manual Version 1.2 J04SS-II Manual Version 1.2 |
Tutorial Video
J04SS Introduction Video |
