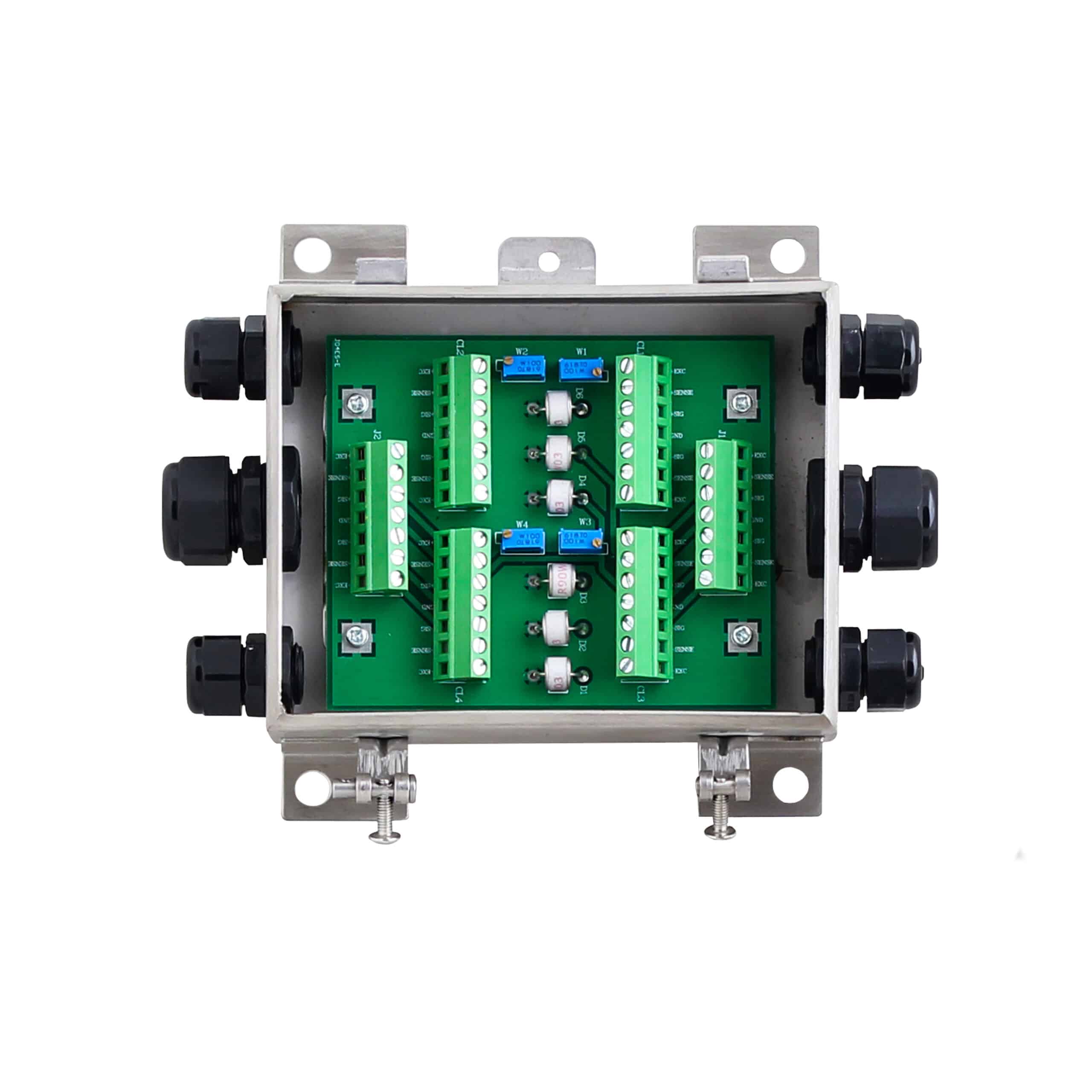

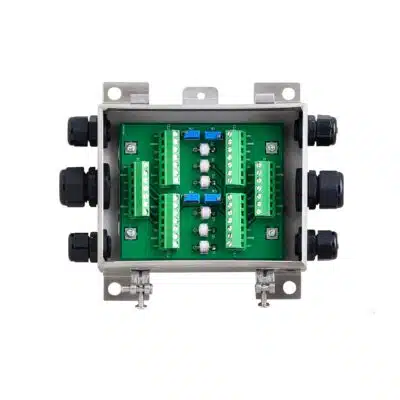

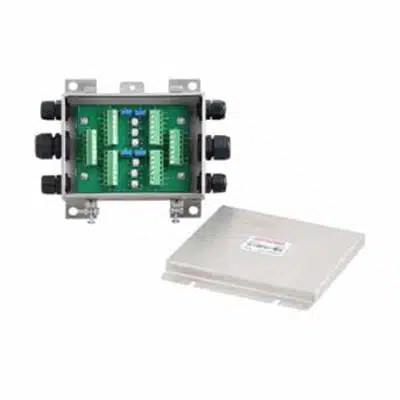

ANYLOAD J04ES-E & J04SS-E Stainless Steel Junction Box

The ANYLOAD J04ES-E & J04SS-E junction boxes have a SS304 stainless steel enclosure with IP65 ingress protection rating. Each can combine 2-4 load cell signals with both individual cell excitation trim or signal trim options from independent adjustable resistors. This model is equipped with an expansion port to connect to other junction boxes (indicated by -E). The J04ES-E & J04SS-E enclosures are equipped with lightning protection. Motherboard only options are available.

This product is currently out of stock and unavailable.

SKU: J04XS-E Category:

ANYLOAD J04ES-E & J04SS-E Key Features

  • Enclosure Material: Stainless steel SS304
  • Expansion port (for wiring additional junction boxes to allow more load cells to be connected)
  • Lightning protection
  • Number of cells: 2-4 single cells
  • Trimming Options: Individual cell with excitation (J04ES-E) or signal (J04SS-E) trim
  • Equipped with independent potentiometers
  • Captive stainless steel screws
  • IP Rating: IP65

Available options: J04ES-E, J04SS-E, J04ES-E Motherboard Only, J04SS-E Motherboard Only

Contact us for any inquiries on load cell interfacing.

Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.



ANYLOAD J04ES-E and J04SS-E Specifications

Number of cells 2-4 singles cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings 13: 6mm-12mm diameter cable
Trimming J04ES-E: Individual cell with excitation trim
J04SS-E: Individual cell with signal trim
Enclosure Material SS304 Stainless Steel
IP Rating IP65





ANYLOAD J04ES-E and J04SS-E Trimming Range

Load Cell Resistance
Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output
