ANYLOAD J08ES and J08SS Stainless Steel Junction Box

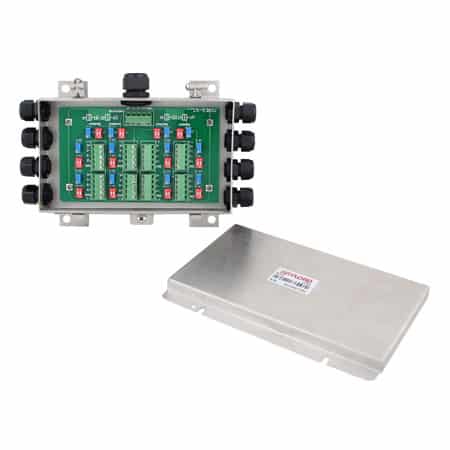

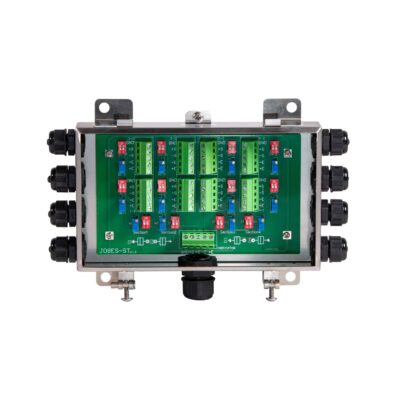

ANYLOAD J08ES and J08SS junction boxes sum inputs from two to eight load cells into a single output to ensure an accurate multi-cell balance adjustment. The J08ES and J08SS have a stainless steel SS304 enclosure and have an ingress protection rating of IP65. They are easy to install with a patented never-lost and integrated screw design.

Lightning protection is available in the models with the “-III” model number extension. All models offer both section trimming and individual cell trimming.

Quantity Price
1 - 9 $208.00
10 - 24 $197.60
25 - 49 $191.36
50 - 99 $185.12
100 + $176.80
Tacuna Systems Price Match Guarantee
SKU: J08XS Category:

ANYLOAD J08ES and J08SS Key Features

    • Enclosure Material: Stainless steel SS304
    • Number of cells: 2-8 single cells
    • Trimming Options: Both (1) section trim and (2) individual cell with excitation (J08ES) or signal (J08ES) trim
    • Equipped with independent adjustable resistors
    • Patented never lost and integrated screw design
    • IP Rating: IP65
    • Lightning protection options: J08ES-III and J08SS-III models

Available options: J08ES, J08ES-III , J08SS, J08SS-III , J08ES Mother Board Only, J08ES-III Mother Board Only, J08SS Mother Board Only, J08SS-III Mother Board Only

Contact us for any inquiries on load cell interfacing.

Specifications

ANYLOAD J08ES and J08SS Specifications

Number of cells 2-8 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG13: 6mm-12mm diameter cable
Trimming J08ES: Section trim or Individual cell with excitation trim
J08SS: Section trim or Individual cell with signal trim
Enclosure Material Stainless Steel SS304
IP Rating: IP65



Trimming Range

ANYLOAD J08ES or J08SS Trimming Range

Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output
