ANYLOAD J12ES and J12SS Stainless Steel Junction Box

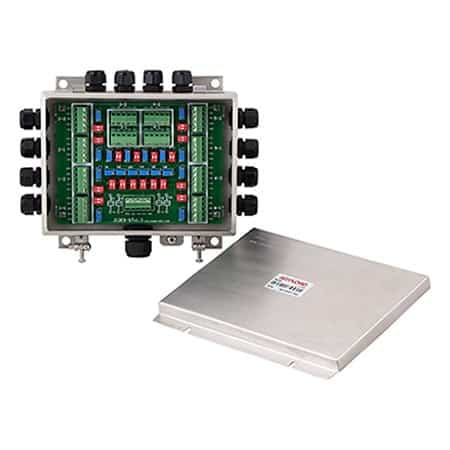

ANYLOAD J12ES and J12SS junction boxes sum inputs from two to twelve load cells into a single output to ensure an accurate multi-cell balance adjustment. The J12ES and J12SS have a stainless steel SS304 enclosure and have an ingress protection rating of IP65. They are easy to install with a patented never-lost and integrated screw design.

Lightning protection is available in the models with the “-III” model number extension. All models offer both section trimming and individual cell trimming.

$313.00$540.00

SKU: J12XS Category:

ANYLOAD J12ES and J12SS Key Features

    • Enclosure Material: Stainless steel SS304
    • Number of cells: 2-12 single cells
    • Trimming Options: Both (1) section trim and (2) individual cell with excitation (J12ES) or signal (J12ES) trim
    • Equipped with independent adjustable resistors
    • Patented never lost and integrated screw design
    • IP Rating: IP65
    • Lightning protection options: J12ES-III and J12SS-III models

Available options: J12ES, J12ES-III , J12SS, J12SS-III , J12ES Mother Board Only, J12ES-III Mother Board Only, J12SS Mother Board Only, J12SS-III Mother Board Only
Contact us for any inquiries on load cell interfacing.

Specifications

ANYLOAD J12ES and J12SS Specifications

Number of cells 2-12 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG13: 6mm-12mm diameter cable
Trimming J12ES: Section trim or Individual cell with excitation trim
J12SS: Section trim or Individual cell with signal trim
Enclosure Material Stainless Steel SS304
IP Rating: IP65

Trimming Range

ANYLOAD J08ES or J08SS Trimming Range

Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output

Technical Documents

J12ES & J12SS Data Sheet

J12ES Manual Version 1.2
J12SS Manual Version 1.2
J12ES-III Manual Version 1.2
J12SS-III Manual Version 1.2
