ANYLOAD J06ES and J06SS Stainless Steel Junction Box

$145.00$260.00

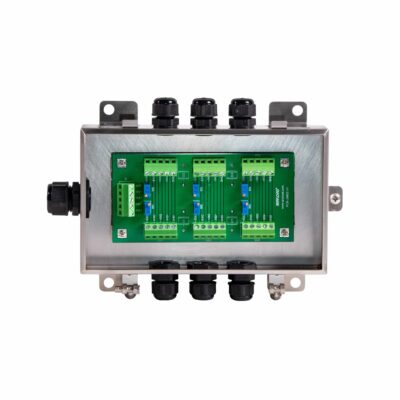

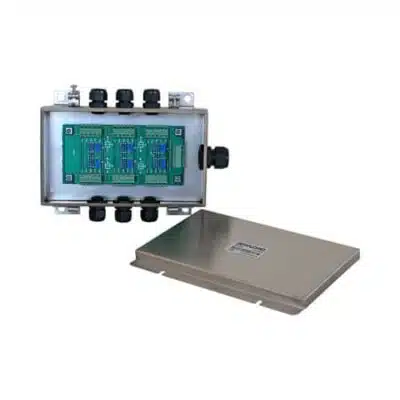

ANYLOAD J06ES and J06SS junction boxes sum 2-6 inputs from multiple load cells into a single output to ensure an accurate multi-cell balance adjustment. The J06ES and J06SS are housed in a stainless steel SS304 enclosure and are rated IP65 for use in harsh environments. They are easy to install with ANYLOAD’s patented never-lost and integrated screw design.

Lightning protection is available (choose the “J06XS-II” option). Choose the signal trim option for load cells with a sense wire.

Clear
SKU: J06XS Category:

ANYLOAD J06ES and J06SS Key Features

    • Enclosure Material: Stainless steel SS304
    • Number of cells: 2-6 single cells
    • Trimming Options: Individual cell with excitation (J06ES) or signal (J06ES) trim
    • Equipped with independent adjustable resistors
    • Patented never lost and integrated screw design
    • IP Rating: IP65
    • Lightning protection options: J06ES-II and J06SS-II models

Available options: J06ES, J06ES-II, J06SS, J06SS-II, J06ES Mother Board Only, J06ES-II Mother Board Only, J06SS Mother Board Only, J06SS-II Mother Board Only

Contact us for any inquiries on load cell interfacing.

Specifications

ANYLOAD J06ES and J06SS Specifications

Number of cells 2-6 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG13: 6mm-12mm diameter cable
Trimming Individual cell with excitation or signal trim
Enclosure Material Stainless Steel SS304
IP Rating: IP65



Technical Documents

J06ES & J06SS Data Sheet




J06ES Manual Version 1.2
J06SS Manual Version 1.2
J06SS Manual with Sense Wire Version 1.2
J06ES-II Manual Version 1.2
J06SS-II Manual Version 1.2
J06SS-II Manual with Sense Wire Version 1.2

Trimming Range

ANYLOAD J06ES or J06SS Trimming Range

Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output
