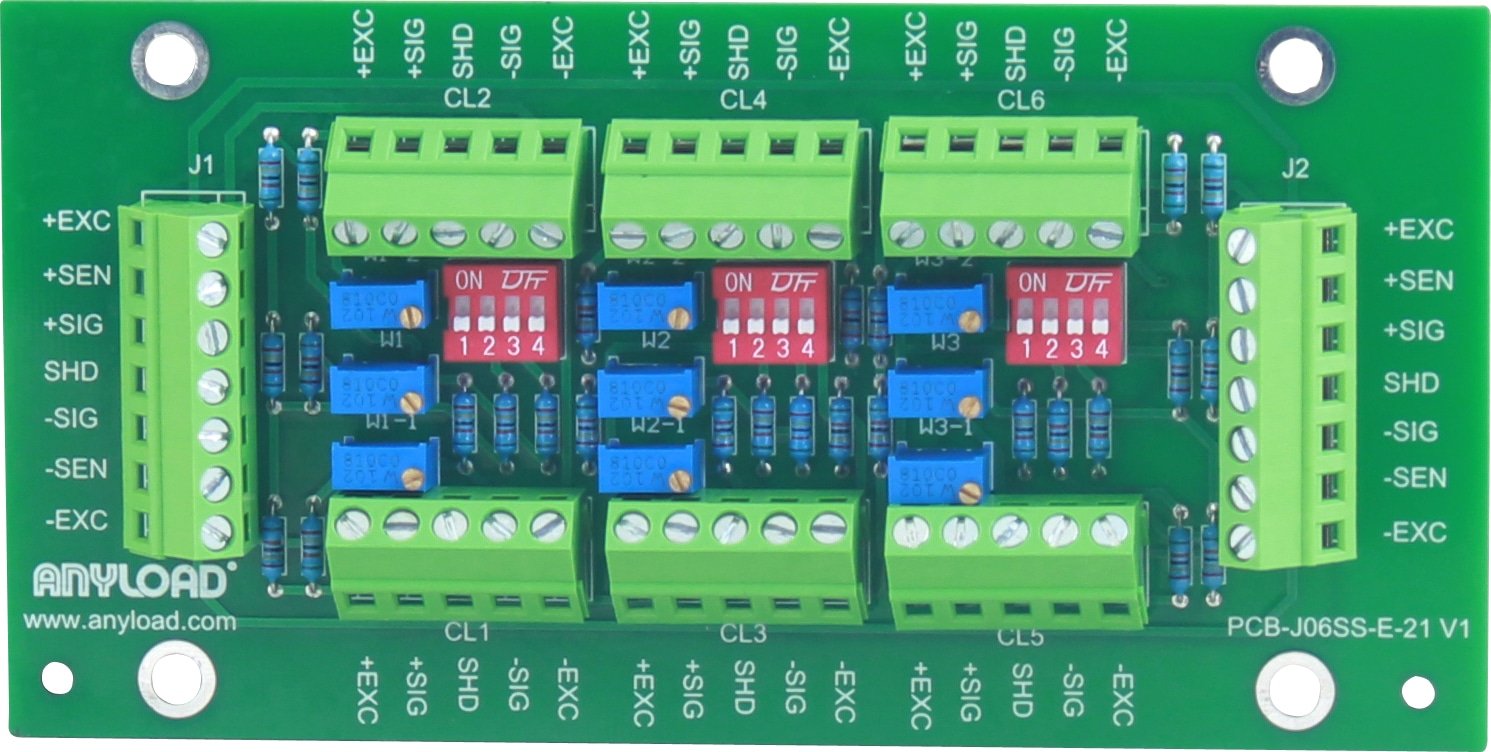

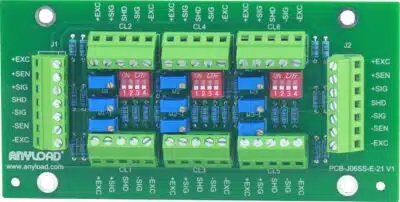

ANYLOAD J06S-E-21-MB Junction Box Main Board
The ANYLOAD J02S-23-MB Main Board for junction and summing boxes connects multiple load cells and combines their signals into a single output for accurate balance adjustment. It supports two parallel load cell connections with an expansion port for additional boxes and features lightning/over-voltage protection for enhanced safety. Easy to install and reliable for various applications.
Other capacities and configurations available – please contact us with any questions
$284.00
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $284.00 |
10-24 | 10 - 24 | 5% $269.80 |
25-49 | 25 - 49 | 8% $261.28 |
50-99 | 50 - 99 | 11% $252.76 |
100+ | 100 + | 15% $241.40 |
ANYLOAD J06S-E-21-MB Features
The ANYLOAD J02S-23-MB is a reliable and efficient main board for junction and summing boxes, designed to accept inputs from multiple load cells and combine the signals into a single, accurate output. This model supports two parallel load cell connections and features an expansion port for wiring additional junction boxes, making it a versatile solution for multi-cell balance adjustments. It is user-friendly and easy to install, ideal for applications requiring precise signal summing from multiple sources. To ensure long-term reliability and safety, it comes equipped with built-in lightning and over-voltage protection, safeguarding the system from electrical damage and enhancing overall performance in challenging environments.
- Number of cells: 2-6 single cells
- Section or individual cell with signal trim
- Lightning/Overvoltage Protection
- Quick removable load cell connectors
- Switchable On/Off power per channel
- Equipped with independent potentiometers
- Conformal coated circuit board
- Expansion port to/for additional J-Box
- IP Rating: IP67
Specifications
ANYLOAD J06S-E-21-MB Specifications:
Number of cells | 2-6 Single Cells |
Trimming Options | Section or individual cell with signal trim |
IP Rating | IP67 |
Trimming Range
Load Cell Resistance | Signal Trim |
---|---|
350Ω | 3.6% of output |
700Ω | 6.3% of output |
1000Ω | 7.0% of output |
Technical Documents
J06S-E-21-MB Datasheet |
