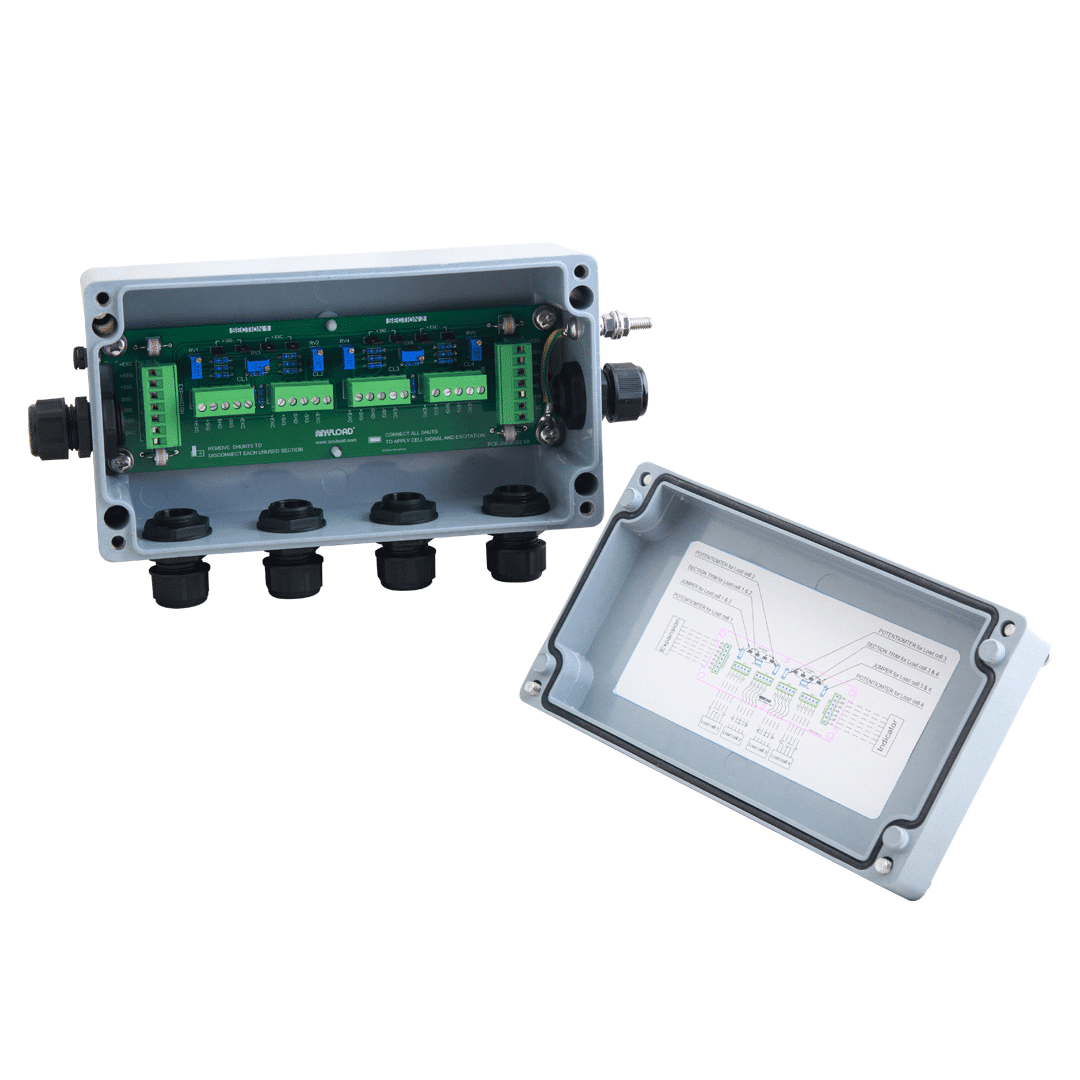

ANYLOAD J04EP-E & J04SP-E Fiberglass Polyester Junction Box
The ANYLOAD J04EP-E and J04SP-E junction and summing boxes combine inputs from multiple load cells into a single output for accurate multi-cell balance adjustment. Housed in an IP67-rated fiberglass-reinforced polyester enclosure, they are designed to prevent condensation and saltwater damage. They feature an expansion port for connecting additional junction boxes and offer both cell excitation trim and signal trim options. Supporting 2 to 8 load cell connections with an expansion port for additional boxes, these models feature quick removable connectors, captive screw covers, and built-in lightning/over voltage protection for easy installation and enhanced durability.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $376.00 |
10-24 | 10 - 24 | 5% $357.20 |
25-49 | 25 - 49 | 8% $345.92 |
50-99 | 50 - 99 | 11% $334.64 |
100+ | 100 + | 15% $319.60 |
ANYLOAD J04EP-E & J04SP-E Features
The ANYLOAD J04EP-E and J04SP-E junction and summing boxes are designed to accept inputs from multiple load cells, summing the signals into a single output to ensure accurate multi-cell balance adjustments. Housed in an IP67-rated fiberglass-reinforced polyester enclosure, these models are purpose-built to prevent condensation and saltwater damage, making them ideal for harsh environments. They can accommodate two to eight parallel load cell connections and include an expansion port for wiring additional junction boxes, offering flexibility for larger systems. The J04EP-E and J04SP-E are easy to install with quick removable load cell connectors and a secure captive screw cover design. These junction boxes also come equipped with lightning and over-voltage protection, ensuring durability and reliable performance in industrial applications.
- Enclosure Material: Fiberglass-reinforced polyester
- Number of cells: 2-4 single cells
- Lightning/Over voltage protection
- Preinstalled GORE breather vent
- Conformal coated circuit board
- Expansion port to/for additional J-Box
- IP Rating: IP67
Available Options: J04EP-E & J04SP-E
Contact us for any inquiries on load cell interfacing.
Specifications
ANYLOAD J04EP-E and J04SP-E Specifications
Number of cells | 2-4 singles cells |
Input Cable Fittings | M20: 6mm-12mm diameter cable |
Output Cable Fittings | M20: 6mm-12mm diameter cable |
Trimming | J04EP-E: Individual cell with excitation trim J04SP-E: Individual cell with signal trim |
Enclosure Material | Fiberglass Reinforced Polyester |
IP Rating | IP67 |
Trimming Range
ANYLOAD J04EP-E and J04SP-E Trimming Range
Load Cell Resistance |
Signal Trim | Excitation Trim |
350Ω | 3.6% of output | 5.4% of output |
700Ω | 6.3% of output | 2.7% of output |
1000Ω | 8.0% of output | 1.9% of output |
