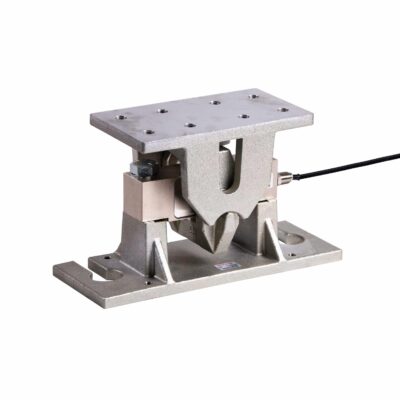

ANYLOAD 102BHM1 Alloy Steel Compression Weigh Module
The ANYLOAD 102BHM1 Weigh Module is center pivoted, and no check rods are required for installation. Ideal for a variety of weighing applications, including tank and silo weight measurement, hopper weighing, and production line systems. For use with the ANYLOAD 102BH load cell or equivalent.
| Quantity | Price |
|---|---|
| 1 - 9 | $530.00 |
| 10 - 24 | $503.50 |
| 25 - 49 | $487.60 |
| 50 - 99 | $471.70 |
| 100 + | $450.50 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Assembly Drawing
- Mounting Kit
- Interchangeable Cross Reference
ANYLOAD 102BHM1 Weigh Module
The Anyload 102BHM1 Compression Weigh Module is a high-performance mounting solution designed for reliable compression weighing in demanding industrial environments. Constructed from rugged alloy steel, it provides exceptional strength, durability, and long-term stability under heavy loads. The module is engineered to work seamlessly with compatible load cells (sold separately), ensuring precise force measurement and accurate load distribution. Its robust design helps maintain consistent performance in applications such as platform scales, tanks, hoppers, and process weighing systems. Ideal for high-capacity weighing setups, it supports safe and efficient load management. With dependable construction and precision engineering, the 102BHM1 module is a practical choice for industrial weighing solutions.
- Assembles: 102BH Double-Ended Beam Load Cell
- Material: Alloy steel, zinc-plated
- Capacities: 10Klb-200Klb/5t-100t
- NTEP-certified load cells from 25Klb-125Klb
- OIML-certified load cells from 11t-55t
- CE, RoHS, and ex-certified load cells
- Center pivoted with self-aligning suspension link design
- Allows for multi-directional movements
- No check rods required
- It can be easily integrated into machines, trucks, and other scale systems
- Load cell not included
Available Options: 10Klb-25Klb, 50Klb-75Klb & SE100Klb.
Please contact us to order capacity options 100Klb and 125Klb
Contact us with any product-related questions.
Specifications
ANYLOAD 102BHM1 Weigh Module Specifications
The 102BHM1 assembles the ANYLOAD 102BH double-ended beam load cell. Load-cell performance specifications:
| Assembles | 102BH Double-ended Beam Load Cell (load cell not included) |
| Module Material | Alloy Steel |
| Rated Capacities | (10-25)klb, (50-75)klb, SE100klb |
| Full-Scale Output | 3.0mV/V |
| Zero Balance | <±0.02mV/V |
| Non-linearity | <±0.023% |
| Repeatability | <±0.017% |
| Hysteresis Error | <±0.023% |
| Creep in 30 minutes | <±0.023% |
| Input Resistance | 700Ω |
| Output Resistance | 700Ω |
| Insulation Resistance | >2GΩ (50V DC) |
| Nominal Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Load Cell Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Technical Documents
 |
102BHM1 Datasheet |
3D Drawing
 |
102BHM1-(50-75)Klb |
Assembly Drawing
 |
102BHM1 (10-25)Klb 102BHM1 (50-75)Klb |
Mounting Kit
|
102BHM1 Module Kit |
Interchangeable Cross Reference
ANYLOAD 102BHM1 Equivalents
| Manufacturer | Equivalent Model |
| Rice Lake |
TSA |
| Vishay Sensortronics |
65058-TSA |
