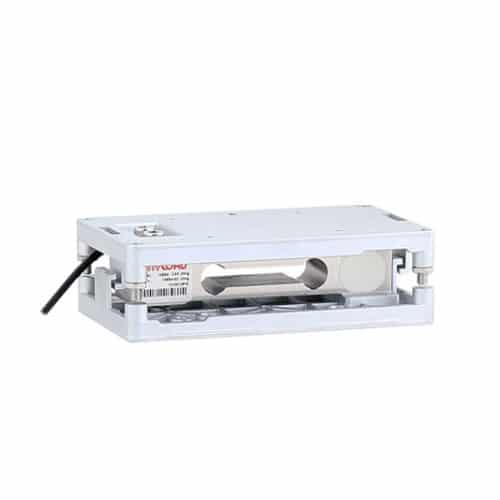

ANYLOAD TMA-108B Compression Test Mount
The ANYLOAD TMA-108B Compression Test Mount is a user-friendly solution for testing scale indicators, remote displays, and other weigh system peripherals. It is particularly valuable for verifying calibration and cable length compatibility before complex installations. Available in 6kg and 20kg options, with additional capacities available upon request. Please contact us for other capacities.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $332.00 |
10-24 | 10 - 24 | 5% $315.40 |
25-49 | 25 - 49 | 8% $305.44 |
50-99 | 50 - 99 | 11% $295.48 |
100+ | 100 + | 15% $282.20 |
ANYLOAD TMA-108B Compression Test Mount Features
The ANYLOAD TMA-108B Compression Test Mount is a versatile and user-friendly tool designed for the demonstration and testing of scale indicators, remote displays, printers, computers, PLCs, and other weigh system peripherals. This test mount is especially valuable in complex installations, allowing you to verify that your indicating device meets requirements such as cable length and calibration before committing to the final installation. The TMA-108B simplifies the process by enabling pre-installation testing, ensuring compatibility and functionality. Available in 6kg and 20kg options, it offers flexibility for various testing needs.
- Aluminum compression module with included aluminum 108BA single-point load cell
- Standard capacities: 6kg, 20kg (other capacities available upon request)
- Load Cell Approval: CE, RoHS, Ex, OIML MAA, NTEP
- Four points of Overloading Protection and Anti-Lifting Protection
- Design capacities: 3kg, 7kg, 10kg 15kg, and 30kg test mount/load cell bundles are available upon request;
- 6-wire cable load cells are also available upon request
Available standard options: 6KG & 20KG.
Contact us for any inquiries on other capacities available upon request
Part Numbers
Part No. | Rated Capacity | Shipping Weight (kg) Approx. |
---|---|---|
TMA-108B-6kg | 6kg | 0.8 |
TMA-108B-20kg | 20kg | 0.8 |
Technical Documents
ANYLOAD TMA-108B Datasheet |
