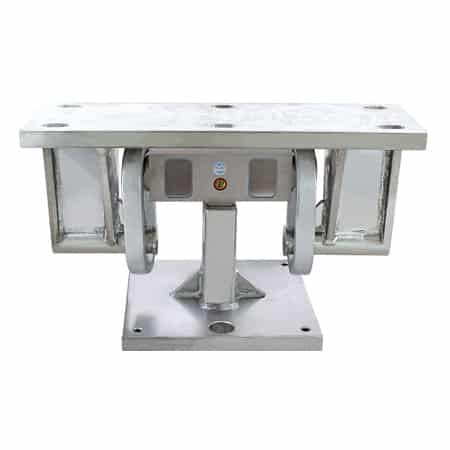

AnyLoad 102THM5 Alloy Steel Compression Weigh Module

Description

The AnyLoad 102THM5 alloy steel compression weigh module is specially constructed to deliver accurate and reliable measurements, and it is available in 50-75Klb capacities. This weigh module is built with alloy steel and assembles the 102TH double ended beam load cell. It can be equipped with OIML certified load cells (11t-55t), NTEP certified load cells (25Klb-125Klb) or CE, RoHS, and Ex approved load cells. The AL-102THM5 links provide optimal loading conditions for the load cell. This alloy steel compression weigh module is center pivoted, end-loaded, and self-centering. Its design allows multi-directional movements in the horizontal plane. Furthermore, the AnyLoad 102THM5 alloy steel compression weigh module requires no check rods for installation. This weigh module is ideal for a variety of industrial weighing applications including tank and silo weighing, hopper weight measurement, and production line systems. The 102THM5 load cell weight measurement module can be easily integrated into machines, trucks, and other scale systems.

AnyLoad 102THM5 Double Ended Beam Load Cell Module Features:

• • Assembles: 102TH double ended beam load cell
  • Material: Alloy steel
  • Capacities: 50-75Klb
  •  NTEP certified load cells from 25Klb-125Klb
  • OIML certified load cells from 11t-55t
  • CE , RoHS and Ex certified load cells
  • Center pivoted, end-loaded and completely self-centering
  • Multi-directional movements in the horizontal plane
  • Links provide optimal loading conditions for the load cell
  • No check rods required
  • Load cell not included

AnyLoad 102THM5 Compression Weigh Module Interchangable Crossreference:
