ANYLOAD 563YHM4 Alloy Steel Compression Weigh Module

The ANYLOAD 563YHM4 Compression Weigh Module enhances accuracy and safety for weighing systems that use the 563YH load cell. This module is a low profile alternative to the 563YHM2 weigh module, with more capacity options. Ideal use for industrial applications like tank scales, silo measuring and production line systems.

$293.00$603.00

SKU: 563YHM4 Category:

ANYLOAD 563YHM4 Compression Weigh Module

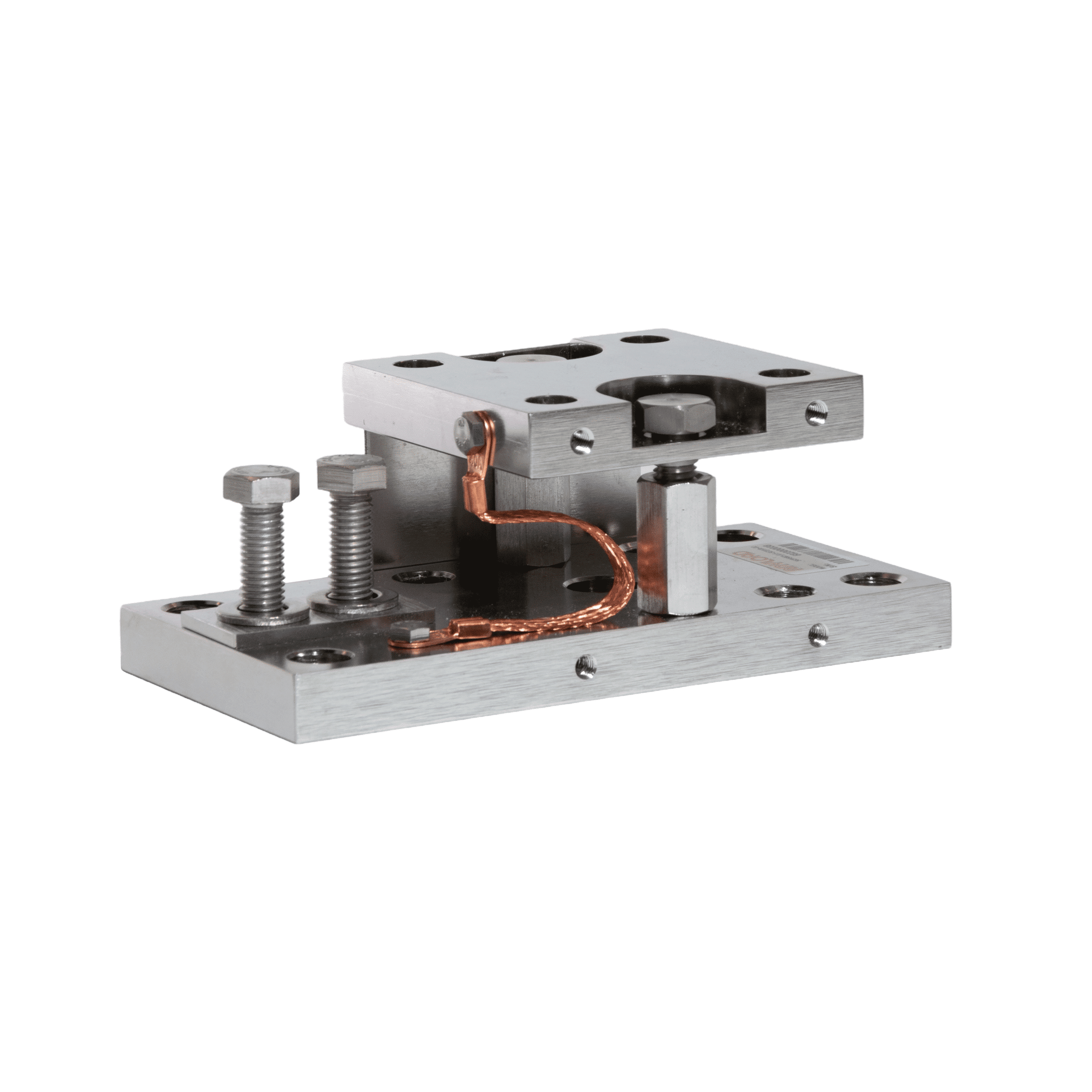

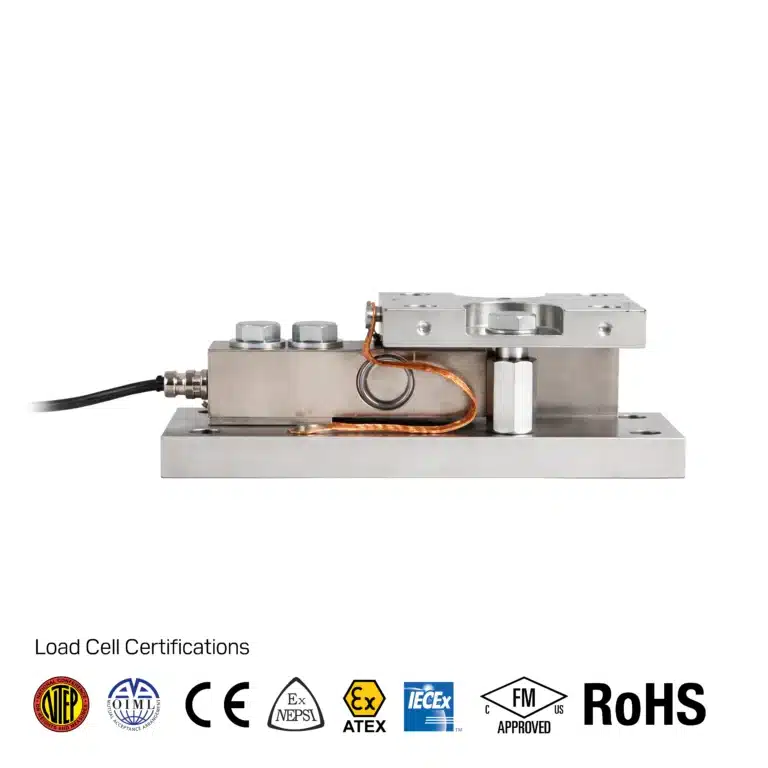

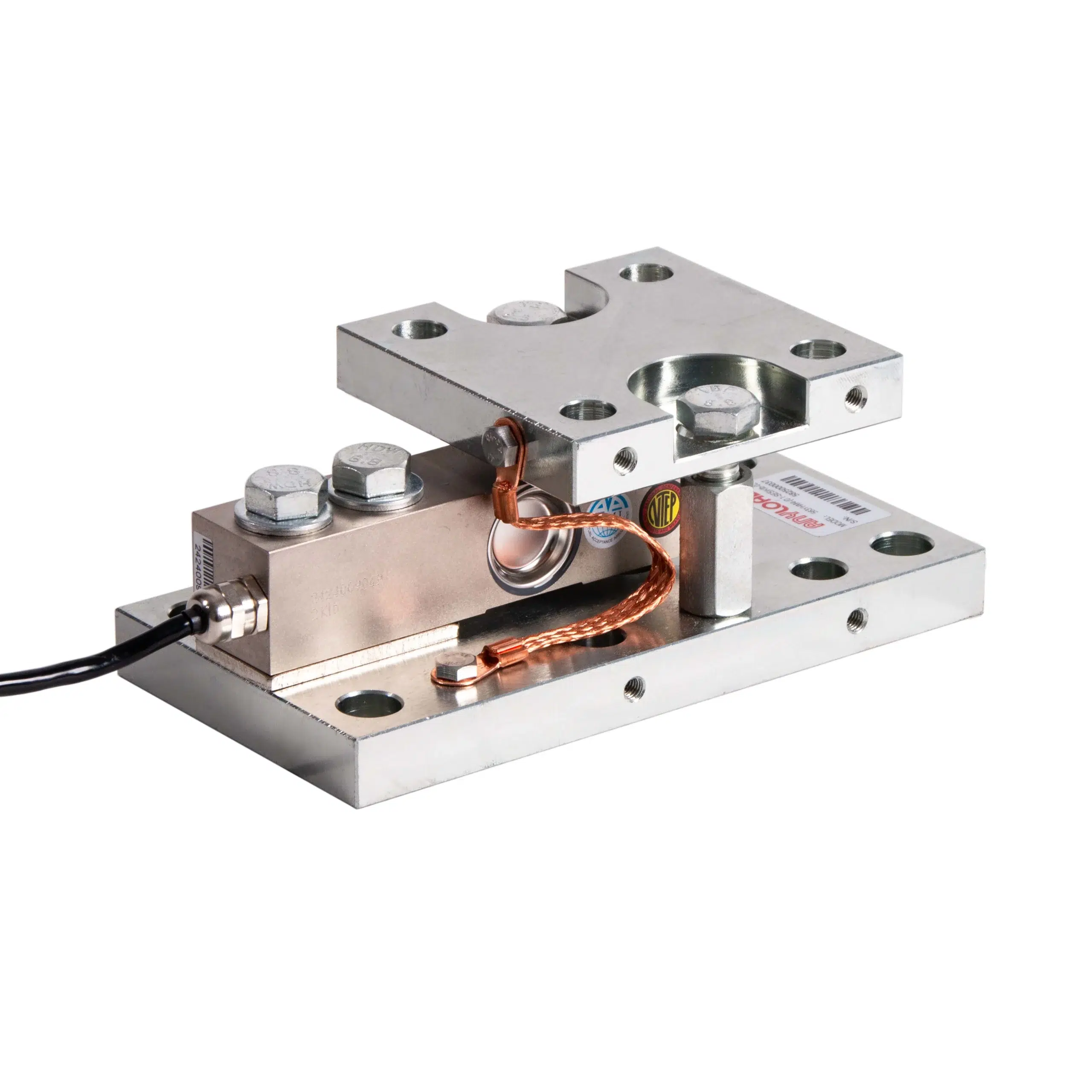

The ANYLOAD 563YHM4 Alloy Steel Compression Weigh Module assembles the 563YH single ended beam load cell or its equivalents. It features both overload protection and 50% rated load anti-lifting protection.

Load cell sold separately.

  • Alloy steel material
  • Available capacities: 100lb-SE5Klb, 5Klb, 10Klb, 20Klb, 100kg-10t
  • NTEP certified load cells ranging from 1Klb – 10Klb
  • OIML certified load cells from 500kg – 2.5t
  • CE, RoHS and Ex certified load cells
  • Rocker pin loading design
  • Equipped with lateral stops
  • Features both overload and anti-lifting protection

Available options: 563YHM4-100lb-5000lb-SE, 563YHM4-5000lb, 563YHM4-10000lb, 563YHM4-15000lb, 563YHM4-20000lb

Contact us for any inquiries on load cell interfacing.



Tacuna System’s Commitment

We strive to serve our diverse customer base across all industries, enabling them with the proper tools they need to be successful. As a small business, we take great pride in providing free consultation for product design & prototyping to all our valued customers. Our engineering specialists also have extensive R&D experience in strain gauge load cell technology, as we are well-known for our in-house designed signal conditioners and amplifiers, that can be customized.

Technical Documents

PDF Icon ANYLOAD 563YHM4 Datasheet
3D icon 563YHM4(100-SE5K)lb Assembly Drawing
563YHM4(5-10)Klb Assembly Drawing
Manual Icon 563YHM4 Installation Guide
