ANYLOAD BSP363YH Alloy Steel Mounting Base Plate

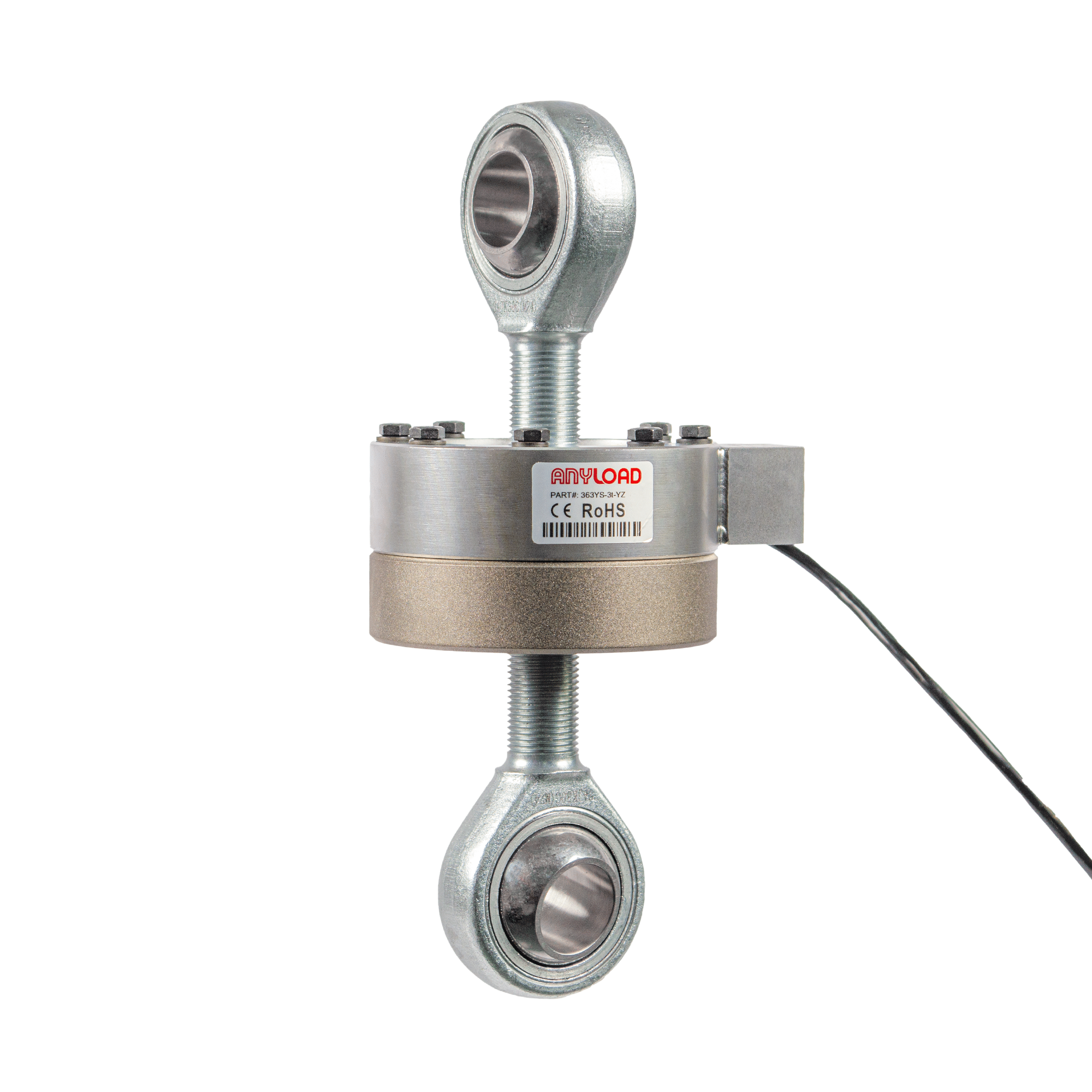

The ANYLOAD BSP363YH is a durable alloy steel mounting base plate designed for secure and stable 363YH/363YS installations. Ideal for use with various tension/compression applications, it provides reliable support and long-lasting performance. The product image shows the BSP363YH base plate and rod ends for use in tension.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $360.00 |
| 10-24 | 10 - 24 | 5% $342.00 |
| 25-49 | 25 - 49 | 8% $331.20 |
| 50-99 | 50 - 99 | 11% $320.40 |
| 100+ | 100 + | 15% $306.00 |
ANYLOAD BSP363YH Features

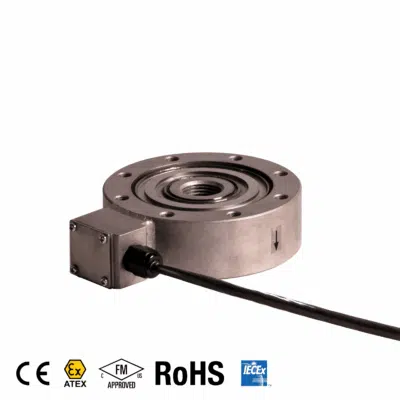

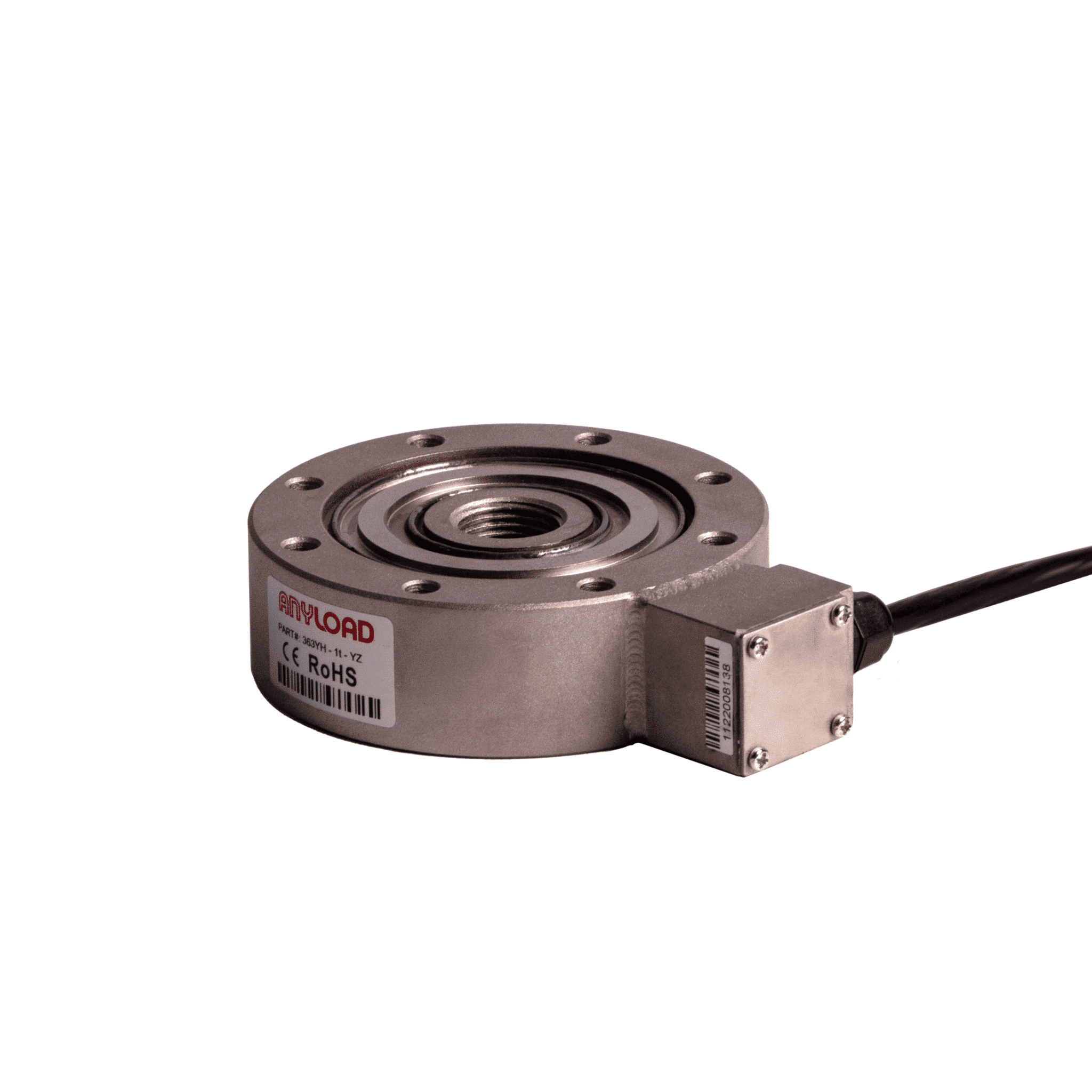

The ANYLOAD BSP363YH Alloy Steel Mounting Base Plate is designed to securely mount the Anyload 363YH/363YS load cell for various tension/compression applications. Crafted from high-quality alloy steel, this base plate provides exceptional strength and durability, ensuring reliable performance in demanding environments. The base plate and rod ends can be combined for use in tension applications (as shown in the picture). In compression, the base plate can be coupled with the MH363YH mounting head, allowing for a complete compression measurement solution – ex, hydraulic press calibration tester.
- Material: Alloy Steel
- Available Rated Capacities: 1t, 5t, 10t, & 20t.
- Load Cell Fit: BSP363YH-(1-5)t fits 1–5 t load cells; BSP363YH-(10-20)t fits 10 t and 20 t load cells
- Outer Diameter: 113.0 mm (4.45 in) for 1–5 t; 155.0 mm (6.10 in) for 10 t and 20 t
- Base Plate Height: 29.0 mm (1.14 in) for 1–5 t; 45.0 mm (1.77 in) for 10 t and 20 t
- Matching Bolts: M6X50 (8 pieces) for 1–5 t; M10X60 (12 pieces) for 10 t and 20 t. Bolts and plain washers are included.
- Matching REH or EYH: REH-M24 for 1–5 t; EYH-M36 for 10 t and 20 t
Available Options: 1t, 5t, 10t, & 20t.
Please contact us with any product-related questions, including availability of other capacities and options.
Specifications
ANYLOAD BSP363YH Specifications
| Capacities | BSP363YH (1t – 5t) | BSP363YH (10t – 20t) |
| Load Cell Capacity | 1t, 2t, 3t, 5t | 10t, 20t |
| ANYLOAD Part Number | BSP363YH-(1-5)t | BSP363YH-(10-20)t |
| Material | Alloy Steel | Alloy Steel |
| Outer Diameter (C) | 113.0 mm (4.45 in) | 155.0 mm (6.10 in) |
| Bolt Circle Diameter (C1) | 97.0 mm (3.82 in) | 130.0 mm (5.12 in) |
| Height of Load Cell and Base Plate (H) | 64.0 mm (2.52 in) | 90.0 mm (3.54 in) |
| Height of Base Plate (H1) | 29.0 mm (1.14 in) | 45.0 mm (1.77 in) |
| Number of Bolts and Plain Washers (N) | 8 | 12 |
| Matching Bolts | M6X50 | M10X60 |
| Bolt Type | Hexagon socket head cap bolts, Gr.10.9 | Hexagon socket head cap bolts, Gr.10.9 |
| Matching REH or EYH | REH-M24 | EYH-M36 |
Bolts and plain washers are included in the set of the BSP363YH base plate. The letters C, C1, H, H1 and N refer to the Mounting Variation 2 drawing in the ANYLOAD 363YH datasheet.
