ANYLOAD 363YH Alloy Steel Compression Load Cell

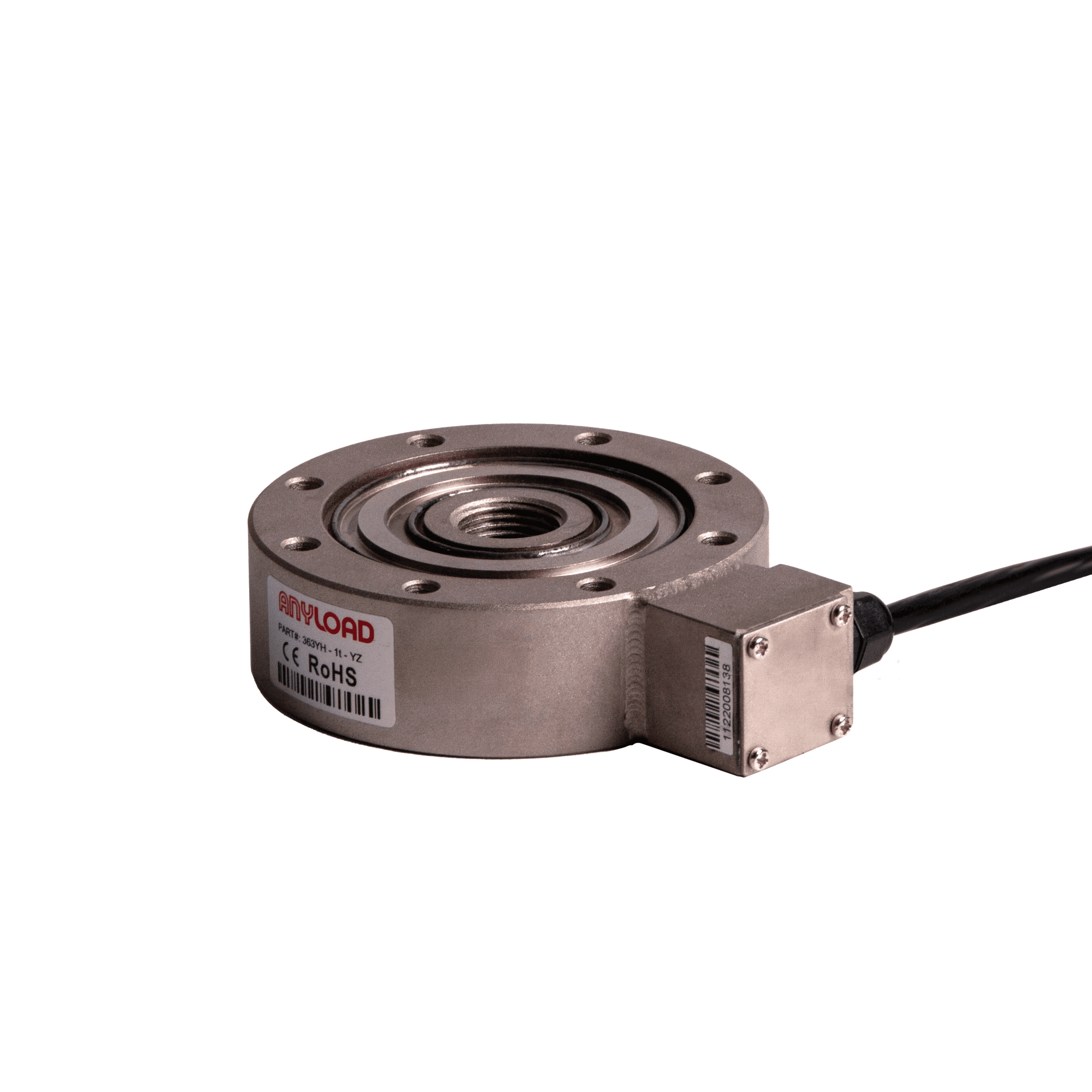

The ANYLOAD 363YH is a versatile tension and compression load cell designed for high-capacity applications. Its low-profile disk/canister design, coupled with IP67-rated alloy steel construction, ensures reliable performance under challenging conditions, including water immersion and dusty environments. Available in capacities from 1t to 200t, this load cell supports multiple mounting variations and meets international safety standards.
| Quantity | Price |
|---|---|
| 1 - 9 | $846.00 |
| 10 - 24 | $803.70 |
| 25 - 49 | $778.32 |
| 50 - 99 | $752.94 |
| 100 + | $719.10 |
ANYLOAD 363YH Features
The ANYLOAD 363YH tension and compression load cell is a universal solution for high-capacity weighing and force measurement across a wide range of applications. Designed with a low-profile disk/canister shape, this load cell offers exceptional versatility with multiple mounting options, making it adaptable to various setups. Its IP67-rated alloy steel construction is weld-sealed, providing high resistance to water immersion, dust, and other harsh environmental conditions. The 363YH is available in capacities ranging from 1t to 200t, ensuring it can meet the demands of both standard and heavy-duty applications. Compliant with leading international safety standards, this load cell is engineered for durability and precision, making it a reliable choice for challenging conditions.
- Material: Alloy steel with nickel-plated element
- Available Rated Capacities: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t.
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS-certified
Available Options: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t, 150t, & 200t.
Please contact us with any product-related questions including availability of other capacities and options.
Specifications
ANYLOAD 363YH Load Cell Specifications
| Capacities | 363YH (1t – 5t) | 363YH (10t – 300t) |
| Rated Capacity | 1t, 2t, 3t, 5t | 10t, 20t, 30t, 50t, 100t, 150t, 200t, 300t |
| Full-Scale Output | 2mV/V ± 1% | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V | ± 0.02mV/V |
| Non-linearity | < ± 0.050% | < ± 0.30% |
| Repeatability | < ± 0.030% | < ± 0.20% |
| Hysteresis Error | < ± 0.050% | < ± 0.30% |
| Creep in 30 minutes | < ± 0.050% | < ± 0.10% |
| Input Resistance | 770Ω ± 30Ω | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k | < ± 0.0120% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale | 150% of full scale |
| Breaking Overload | 300% of full scale | 300% of full scale |
| Seal Type | Welded Seal | Welded Seal |
| IP Rating | IP67 | IP67 |
Technical Documents
 |
ANYLOAD 363YH Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
 |
363YH-5t |
|
363YH-10t |
|
363YH-30t |
|
363YH-50t |
|
363YH-100t |
|
363YH-200t |
