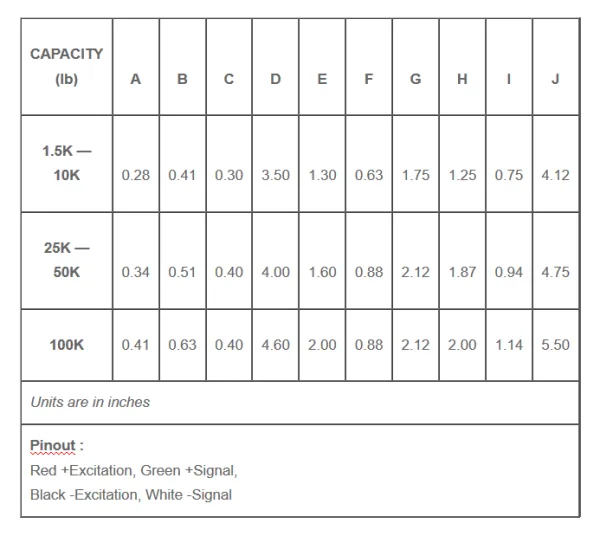

  • table indicating physical dimensions vs capacity of an amcells L P D load cell

AmCells LPD Series Alloy Steel Disk Load Cell

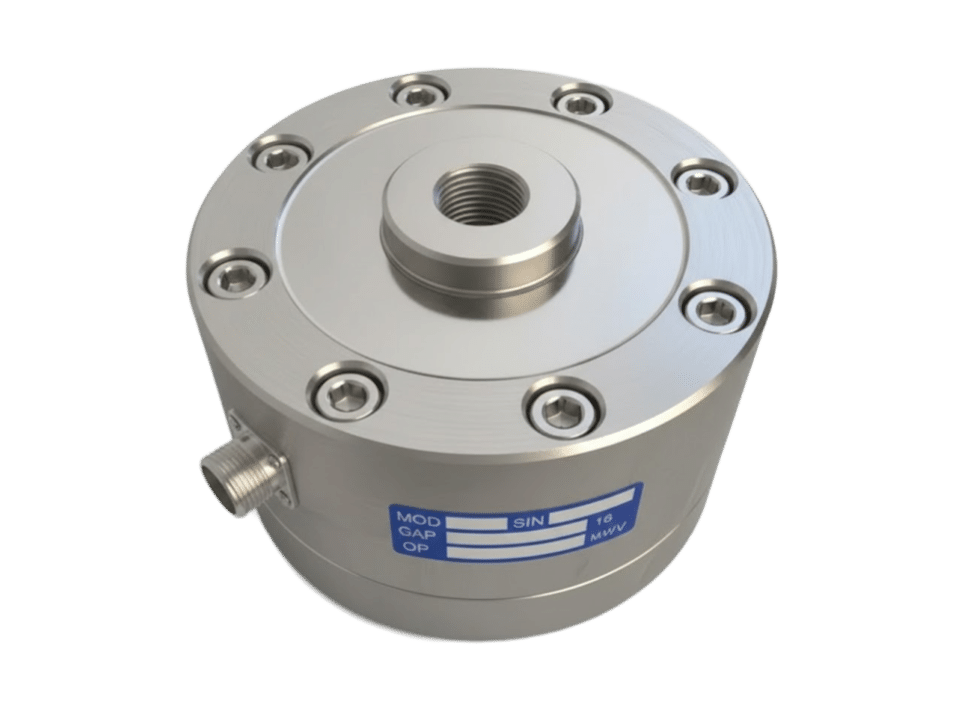

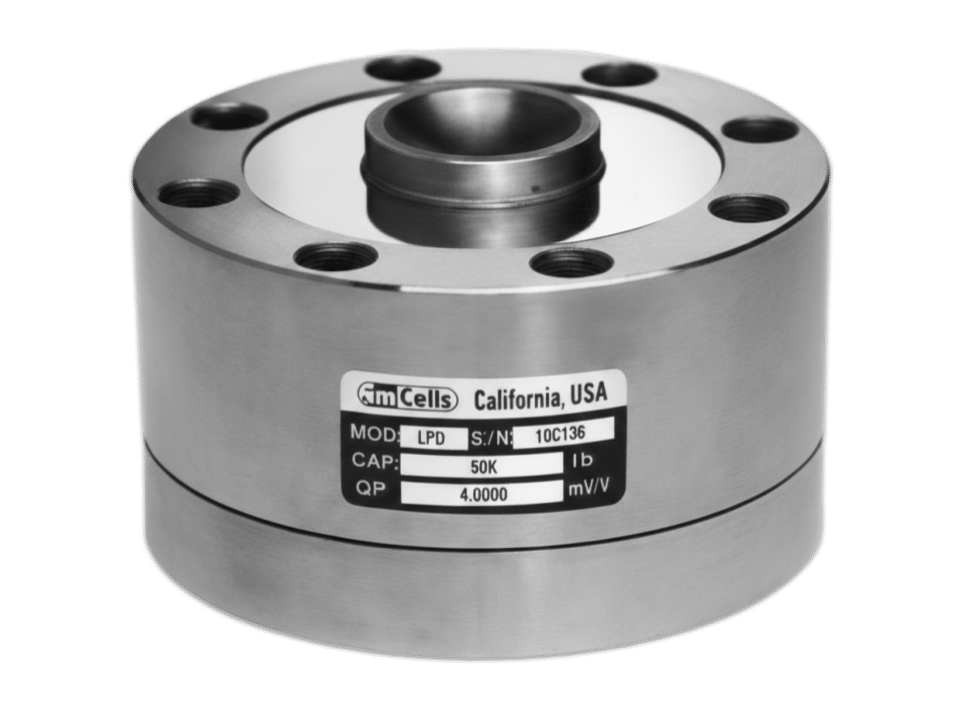

AmCells LPD disk load cells provide a versatile solution for compression weighing. Their compression component comes with a ball option (CB) or threaded option (CT). The LPD are compatible alternatives for the following load cells: Revere RLC series, Teda 220/230, and Vishay Celtron LCD series.

Also other alloy steel disk load cell capacities and configurations available – please contact us with any questions.

Quantity Price
1 - 9 $750.00
10 - 24 $712.50
25 - 49 $690.00
50 - 99 $667.50
100 + $637.50
Tacuna Systems Price Match Guarantee
SKU: LPD Category:

AmCells LPD Key Features

Disk compression type load cells are used in these applications: weigh scale, hopper, tank level, truck/vehicle scale, and force measurement. They measure compression or tension (threaded version) and have enhanced resistance to side loads and bending moments.

  • High Grade Alloy Steel
  • Low Profile Disk Load Cell With Base
  • Meets OIML and HB44 Class III Standards
  • Cable Length: 20 ft.

Available options: LPD-5000lb-Center Ball, LPD-5000lb-Center Thread, LPD-10000lb-Center Ball, LPD-10000lb-Center Thread, LPD-25000lb-Center Ball, LPD-25000lb-Center Thread, LPD-50000lb-Center Ball, LPD-50000lb-Center Thread, LPD-100000lb-Center Ball, LPD-100000lb-Center Thread

Replacement Parts: Female connector; 20ft. replacement cable

Please contact us with any product interfacing inquiries.

Specifications

AmCells LPD Load Cell Specifications

Rated Output (R.O.) 4.0 MV/V ± 0.25%
Zero Balance ± 2% of R.O.
Non-linearity 0.03% of R.O.
Hysteresis 0.02% of R.O.
Non-Repeatability 0.05% of R.O.
Creep in 1 hour 0.02% of Load
Insulation > 5,000MΩ
Input Impedance 385 ± 30Ω
Output Impedance 350 ± 4Ω
Safe Overload 150% of F.S.
Ultimate Overload 300% of F.S.
Compensated Temperature Range -10 to 40 °C
Operating Temperature Range -40 to 80 °C
Temperature Effect on Output 20 ppm/°C of load
Temperature Effect on Zero 20 ppm/°C of F.S.

Dimensions

engineer drawing of LPD load cell with dimensions
