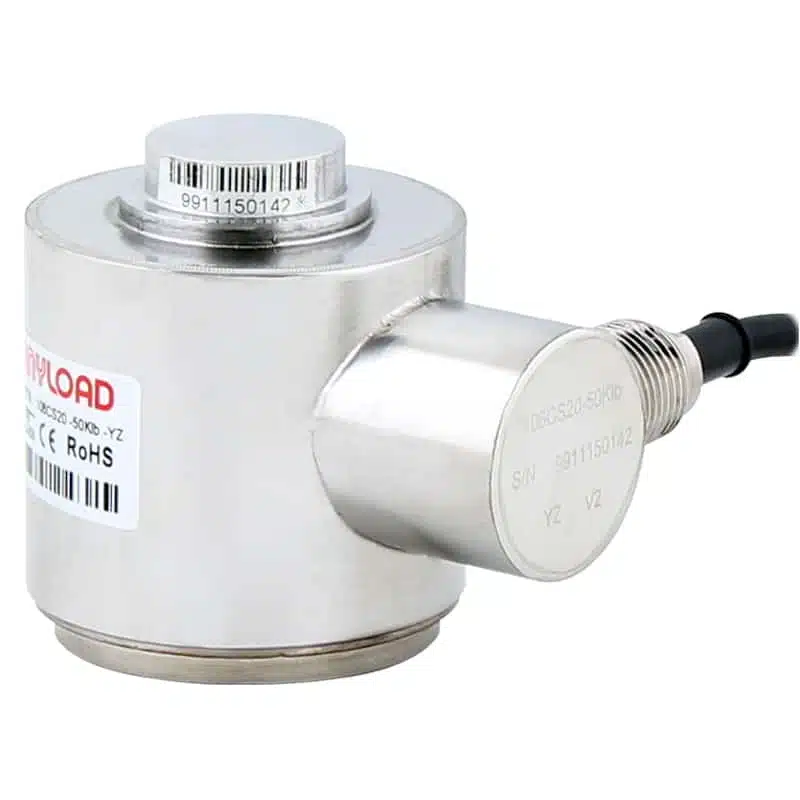

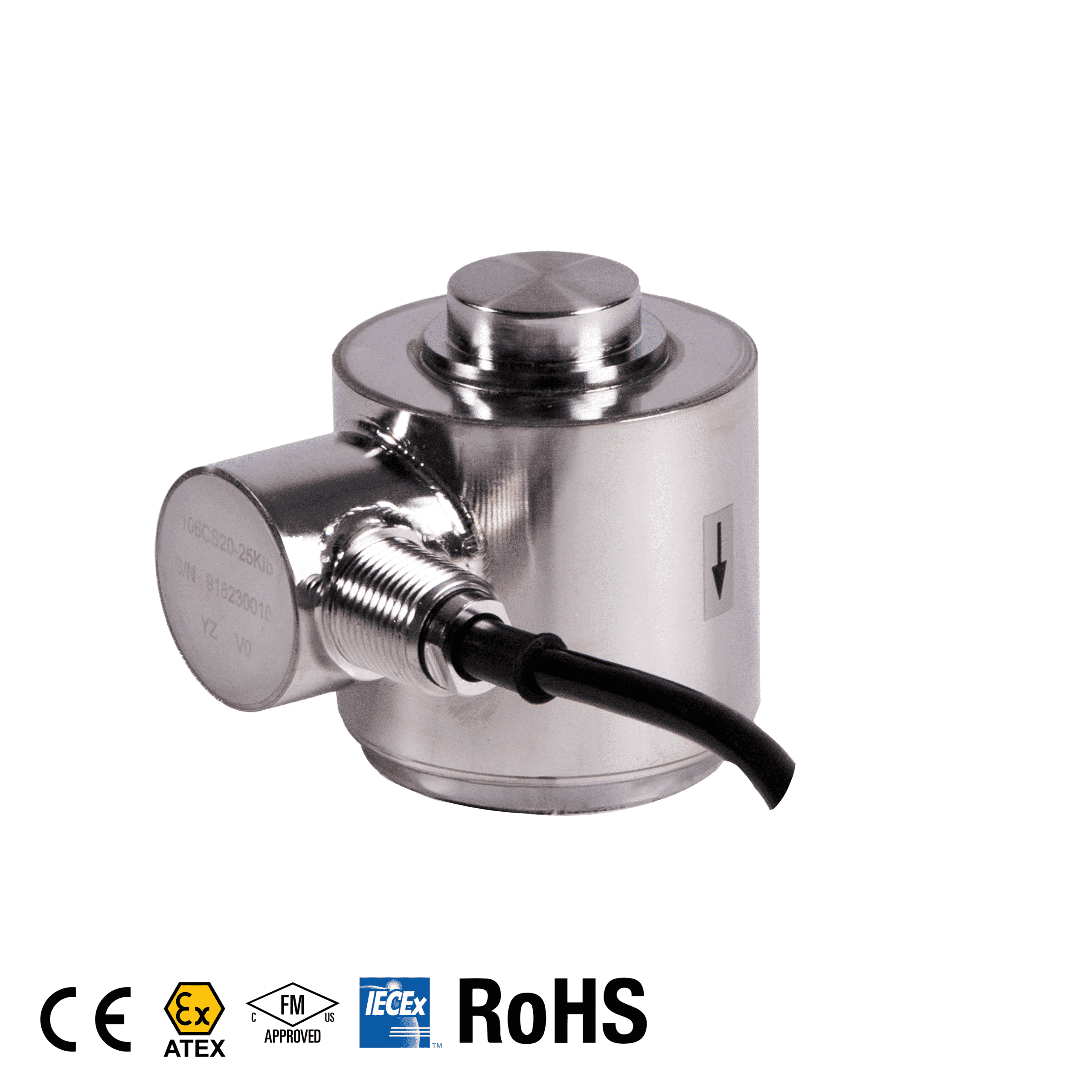

ANYLOAD 106CS20 Stainless Steel Canister Load Cell
The ANYLOAD 106CS20 is a high-capacity compression canister load cell, constructed from durable 2Cr13 stainless steel with IP68 waterproofing, making it ideal for extreme conditions. Available in capacities ranging from 10Klb to 200Klb, it’s perfect for applications like railroad and truck scales. The 106CS20 is interchangeable with Rice Lake RLCSP1, Revere 692B, and other models. Adhering to international safety standards ensures reliable performance in heavy-duty environments. Custom capacities and configurations are also available upon request.
| Quantity | Price |
|---|---|
| 1 - 9 | $1,140.00 |
| 10 - 24 | $1,083.00 |
| 25 - 49 | $1,048.80 |
| 50 - 99 | $1,014.60 |
| 100 + | $969.00 |
- Description
- Specifications
- Technical Documents
- 3D Drawing
- Interchangeable Cross Reference
- Reviews (0)
ANYLOAD 106CS20 Features
The ANYLOAD 106CS20 is a high-capacity compression canister load cell, engineered to withstand the most demanding environments. Constructed with robust 2Cr13 stainless steel and featuring an IP68 waterproof rating, it is designed to perform reliably under extreme conditions. With available capacities ranging from 10Klb to 200Klb, the 106CS20 is perfect for heavy-duty applications such as railroad and truck scales. It is fully interchangeable with models like the Rice Lake RLCSP1 and Revere 692B, ensuring versatility and compatibility. Compliant with leading international safety standards, this load cell offers exceptional durability and accuracy. For specialized needs, other capacities and configurations can be provided upon request.
- Material: 2Cr13 Stainless steel
- Rated Capacities: 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t
- Full-Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- Weld Sealed; IP Rating: IP68
- CE and RoHS-certified
Available Options: 10Klb, 25Klb, 50Klb, 100Klb & 200Klb.
Please contact us with any product-related questions.
Specifications
ANYLOAD 106CS20 Load Cell Specifications
| Rated Capacity | 10Klb, 25Klb, 50Klb, 100Klb, 200Klb, 10t, 15t, 25t, 40t, 50t, 100t |
| Full-Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.030% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 450Ω ± 4.5Ω |
| Output Resistance | 480Ω ± 4.5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
Technical Documents
 |
ANYLOAD 106CS20 Load Cell Datasheet |
 |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
Interchangeable Cross Reference
ANYLOAD 106CS20 Interchangeable Cross Reference
| Manufacturer | Model |
|---|---|
| Artech | 90310 |
| Coti Global | CG-26S5 |
| Rice Lake | RLCSP1 |
| Vishay Revere Transducers | CSP |
| Vishay Revere Transducers | 692B |
