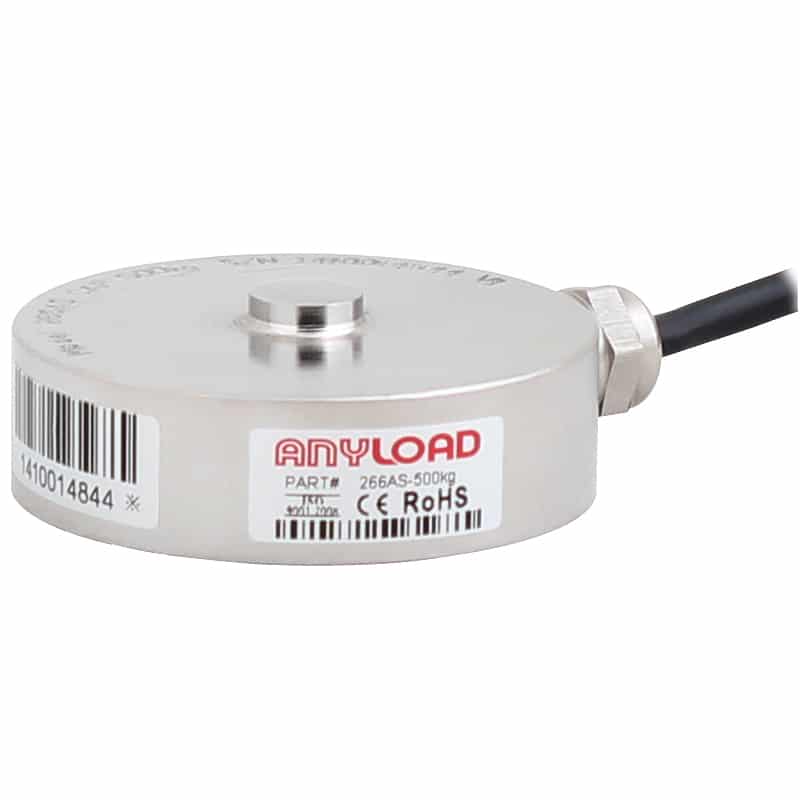

ANYLOAD 266AS Compression Stainless Steel Load Cell
The ANYLOAD 266AS Stainless Steel Compression Load Cell is a low-profile component available in capacities ranging from 100kg to 20t. Rated IP68, provides accurate, reliable weighing in harsh environments.
Other configurations may be available—please contact us to learn more.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $486.00 |
10-24 | 10 - 24 | 5% $461.70 |
25-49 | 25 - 49 | 8% $447.12 |
50-99 | 50 - 99 | 11% $432.54 |
100+ | 100 + | 15% $413.10 |
SKU: 266AS
Category: Compression or Canister
ANYLOAD 266AS Features
- Material: 17-4PH Stainless Steel
- Rated Capacities: 100kg to 30t
- Full-Scale Output: 2mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Seal/IP68
- CE and RoHS-Certified
Available Options: 100kg, 200kg, 500kg, 1t, 2t, 5t, 10t & 20t.
Please contact us with any product-related questions.
Specifications
Rated Capacity | 100kg, 200kg, 250kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t |
Full Scale Output | 2mV/V ± 1% |
Zero Balance | ± 0.04mV/V |
Non-linearity | Cap. 2t: <±0.2%; Cap. ≥5t: <±0.05% |
Repeatability | Cap. 2t: <±0.03%; Cap. ≥5t: <±0.03% |
Hysteresis Error | Cap. 2t: <±0.1%; Cap. ≥5t: <±0.05% |
Creep in 30 minutes | Cap. 2t: <±0.1%; Cap. ≥5t: <±0.05% |
Input Resistance | Cap. 2t: 400Ω±20; Cap. ≥5t: 770Ω±30 |
Output Resistance | Cap. 2t: 350Ω±3; Cap. ≥5t: 700Ω±5 |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | >2 [50V DC] Ω |
Compensated Temperature Range | -10oC to 50oC / 14oF to 122oF |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded Seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 266AS Load Cell Datasheet and Mounting Guide | |
CE Certificate of Conformity RoHS Certificate of Conformity |
3D Drawing
266AS-100kg-2t | |
266AS-5t | |
266AS-10t | |
266AS-20t |
