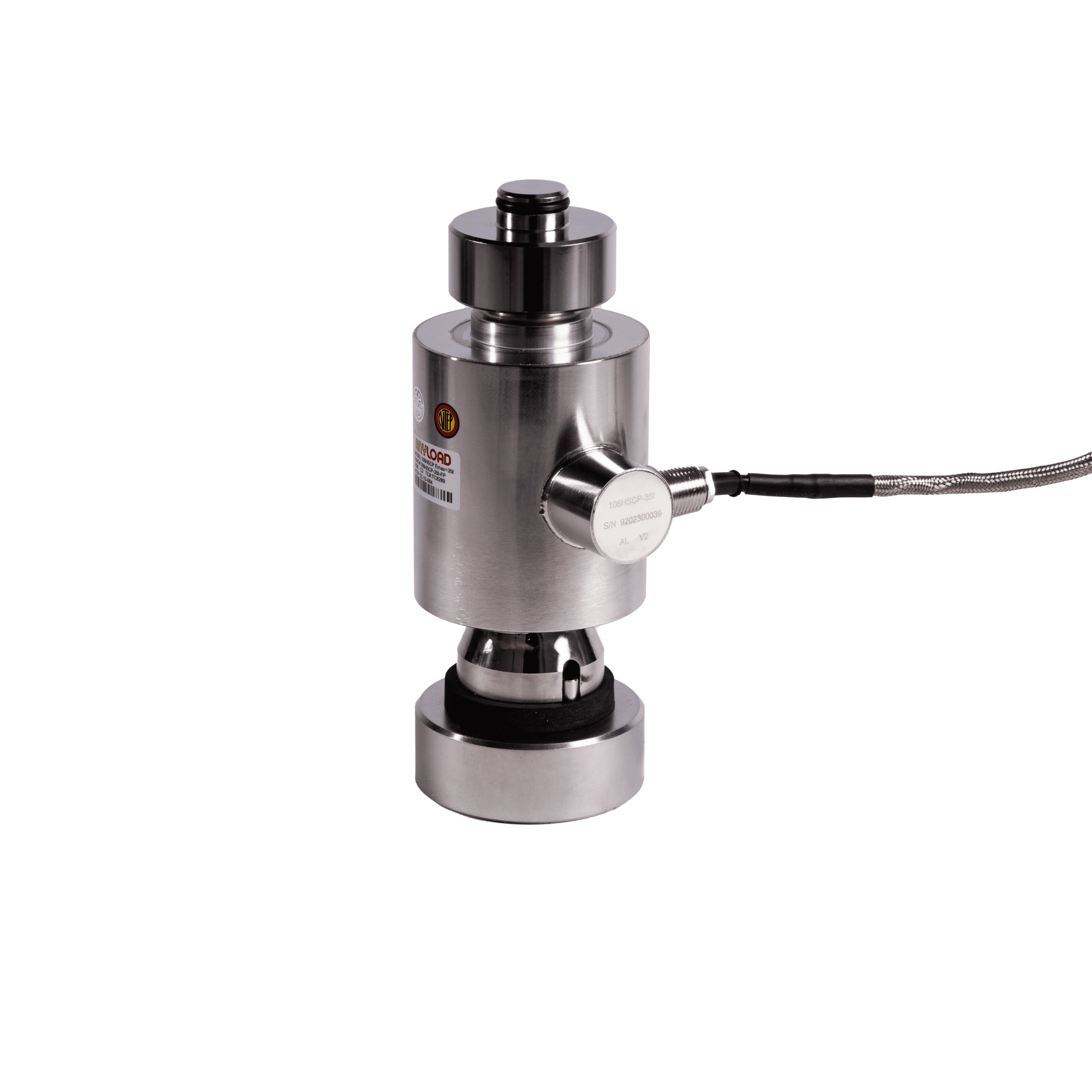

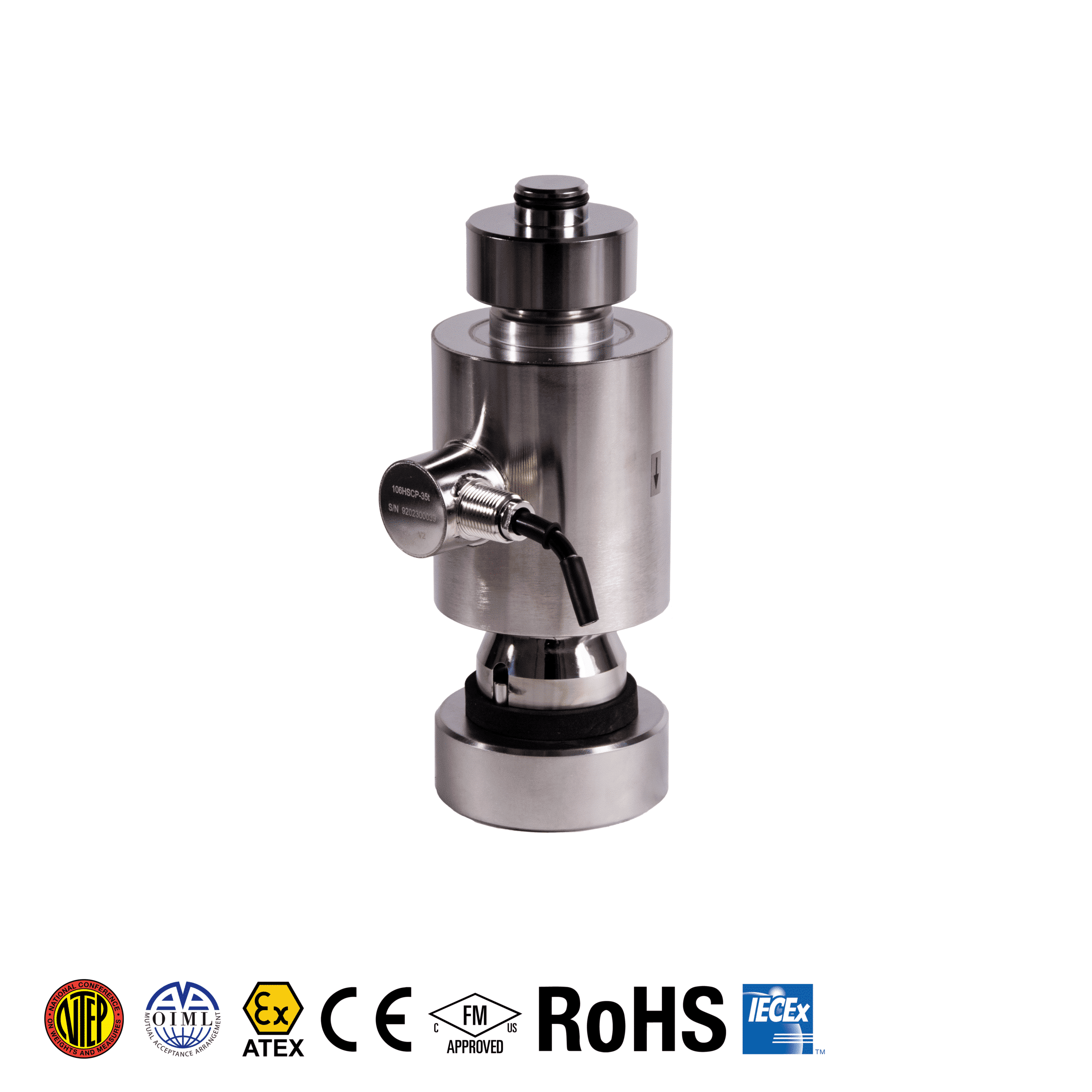

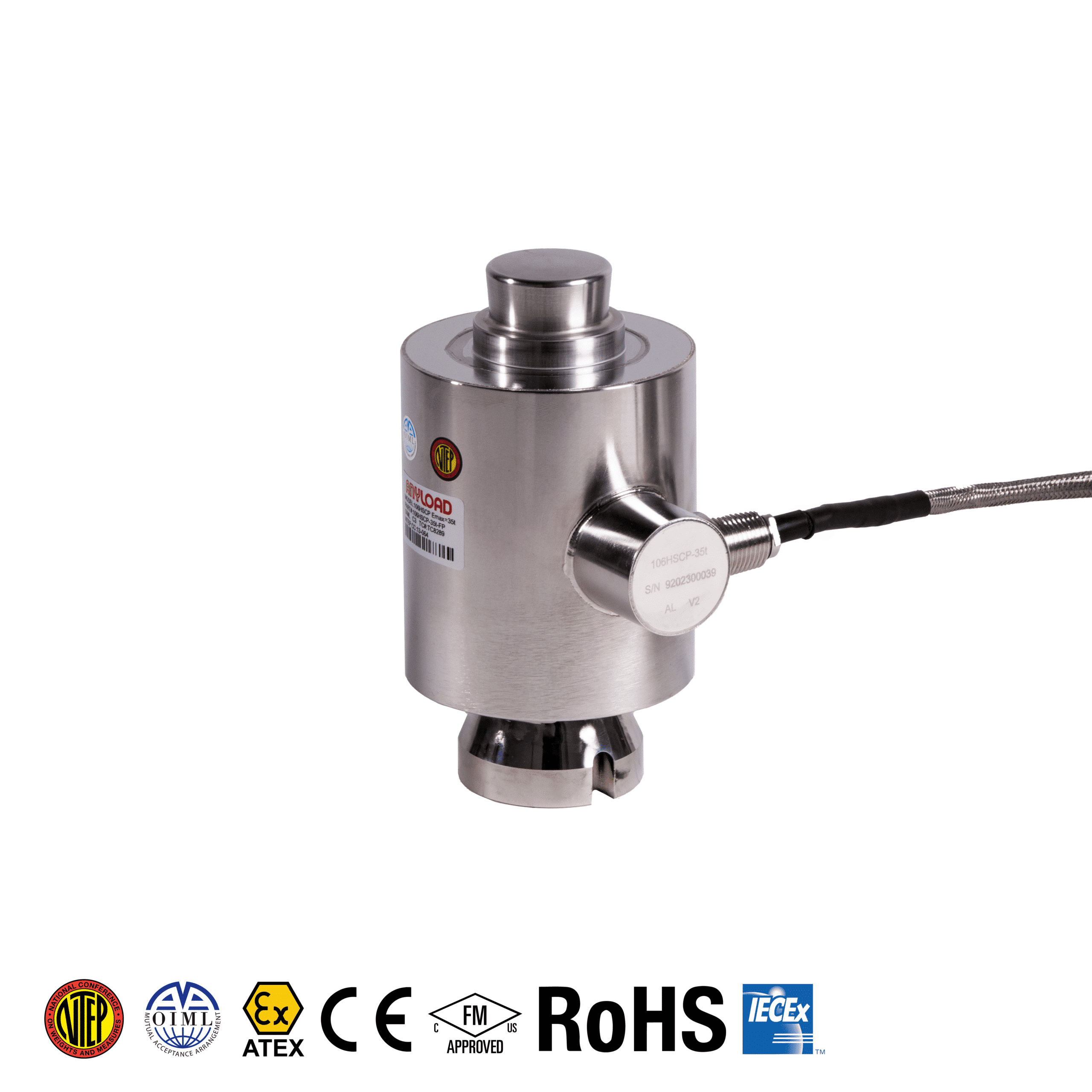

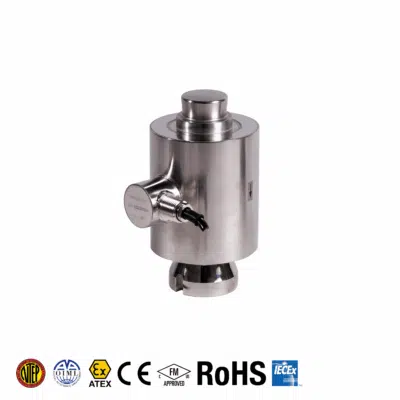

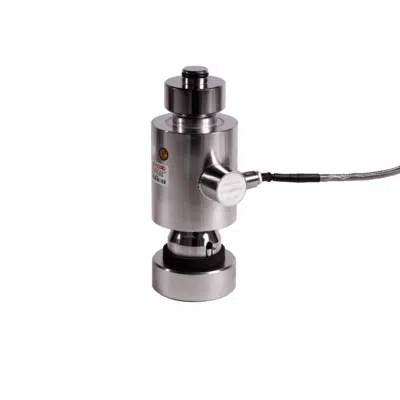

ANYLOAD 106HSCP Stainless Steel Canister Load Cell
The ANYLOAD 106HSCP canister load cell is 17-4PH stainless steel and has a capacity of 35t. Its welded seal and 1P68 protection rating make it suitable for indoor and outdoor weighing applications, able to withstand dusty environments.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $390.00 |
10-24 | 10 - 24 | 5% $370.50 |
25-49 | 25 - 49 | 8% $358.80 |
50-99 | 50 - 99 | 11% $347.10 |
100+ | 100 + | 15% $331.50 |
SKU: 106HSCP
Category: Compression or Canister
ANYLOAD 106HSCP Key Features
- 17-4PH stainless steel material
- Rated Capacities: 35t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell
- OIML MAA C3, Y=16 000
- CE and RoHS certified

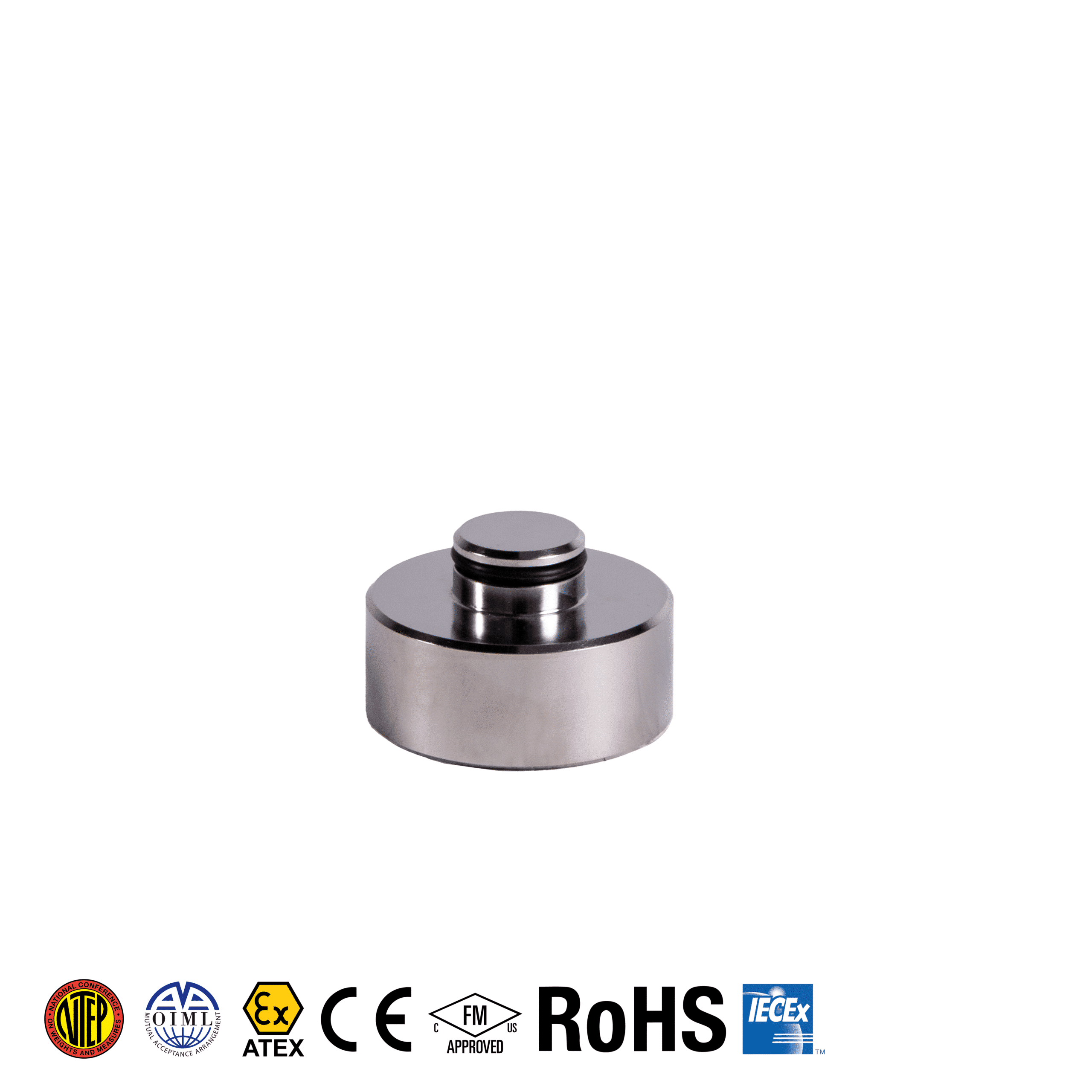

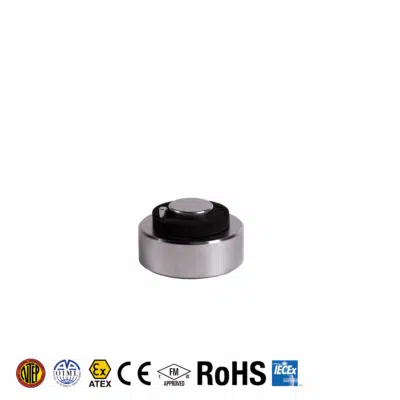

Available options: 106HSCP-35t, PS-106HSCP-35t (Parts Set: Includes mounting cap, mounting base, rubber base, o-ring and load pin), 106HSCP-35t-FP (Full Package: Includes parts set)
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 106HSCP Load Cell Specifications
Rated Capacity | 35t |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.03% |
Repeatability | < ± 0.02% |
Hysteresis Error | < ± 0.02% |
Creep in 30 minutes | < ± 0.020% |
Input Resistance | 700Ω ± 20Ω |
Output Resistance | 705Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Use the best HTML tools: read the blog, use the online editor, find the tags.
Technical Documents
ANYLOAD 106HSCP Load Cell Datasheet | |
|
OIML Certificate of Conformity – 106 series NTEP Certificate of Conformity – 106 series CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106HSCP Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Bilanciai | CPR-M |
