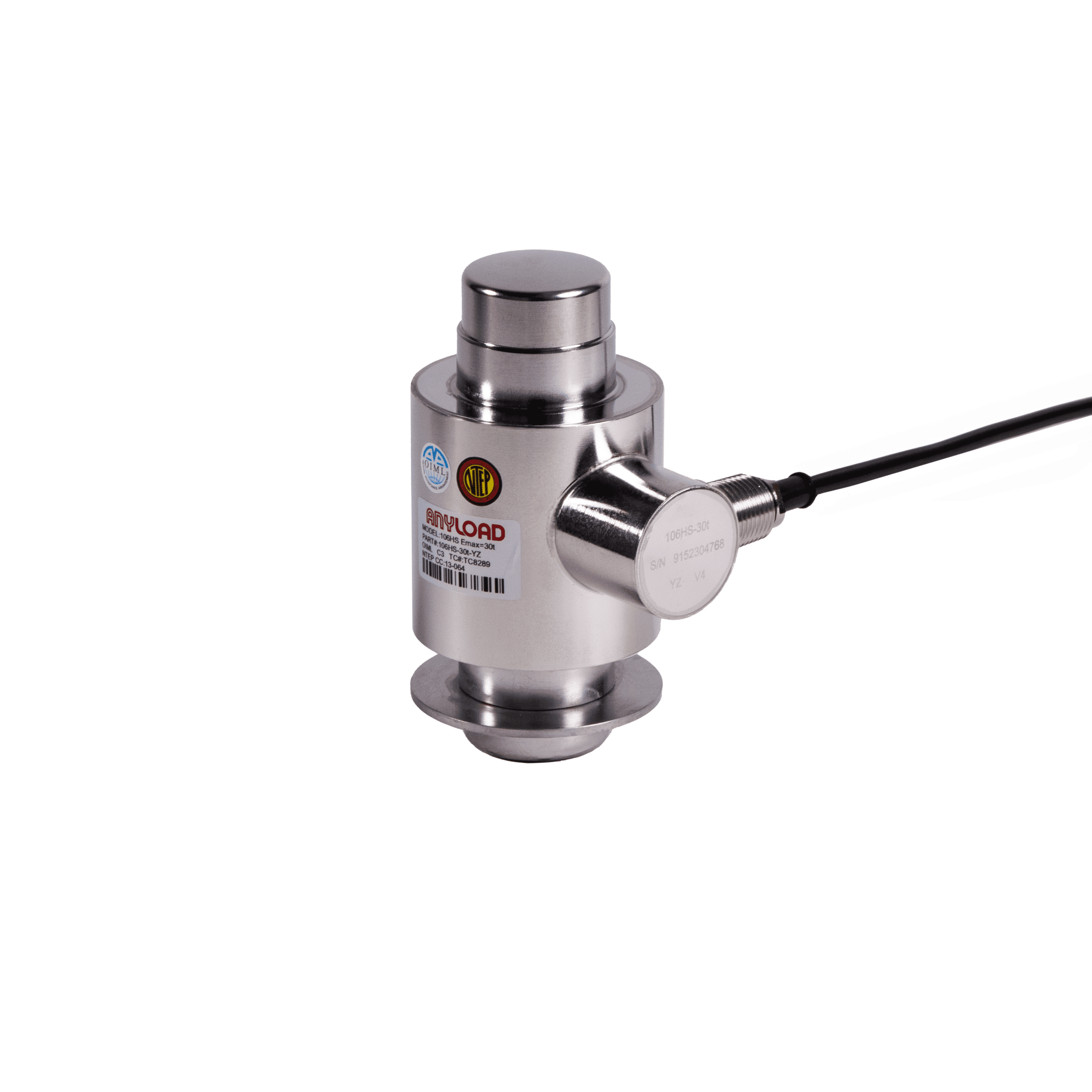

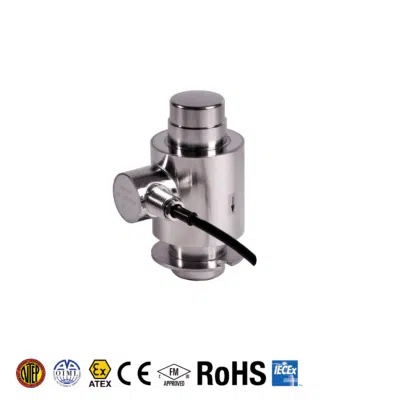

ANYLOAD 106HS Stainless Steel Canister Load Cell
The ANYLOAD 106HS canister load cell is 2Cr13 stainless steel and features an IP68 protection rating, allowing it to withstand dusty environments and water immersion.
Other capacities and configurations available – please contact us with any questions.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $258.00 |
10-24 | 10 - 24 | 5% $245.10 |
25-49 | 25 - 49 | 8% $237.36 |
50-99 | 50 - 99 | 11% $229.62 |
100+ | 100 + | 15% $219.30 |
SKU: 106HS
Category: Compression or Canister
ANYLOAD 106HS Key Features
- Stainless steel material
- Rated Capacities: 20t, 30t, 40t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload – 150%
- Breaking Overload – 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
- OIML MAA C3, Y=16 000 certified from 10t-50t
- CE and RoHS certified
Available options: (Full Package options include Accessories Set of 2 mounting cups, 1 load pin, 3 circular plates, 1 rubber shield and 2 steel clamps)
106HS-30t, 106HS-30t-Full Package, 106HS-40t, 106HS-40t-Full Package, 106HS-20-40t-Parts Set
Please contact us with any product interfacing inquiries.
Specifications
ANYLOAD 106HS Load Cell Specifications
Rated Capacity | 20t, 30t, 40t |
Full Scale Output | 2mV/V ± 0.25% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.023% |
Hysteresis Error | < ± 0.023% |
Creep in 30 minutes | < ± 0.030% |
Input Resistance | 700Ω ± 20Ω |
Output Resistance | 705Ω ± 5Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 106HS Load Cell Datasheet | |
|
OIML Certificate of Conformity – 106 series NTEP Certificate of Conformity – 106 series CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106HS Interchangeable Cross Reference
Manufacturer | Equivalent Model | Information |
Coti Global | CG-26S4 | |
HBM | C16 | HBM C16 is interchangeable with ANYLOAD 106HS with or without the mounting hardware |
Vishay Revere Transducers | ASC | ANYLOAD 106HS with mounts is interchangeable with Vishay Revere Transducers ASC with mounts. Without mounts, the load cells are not interchangeable. |
