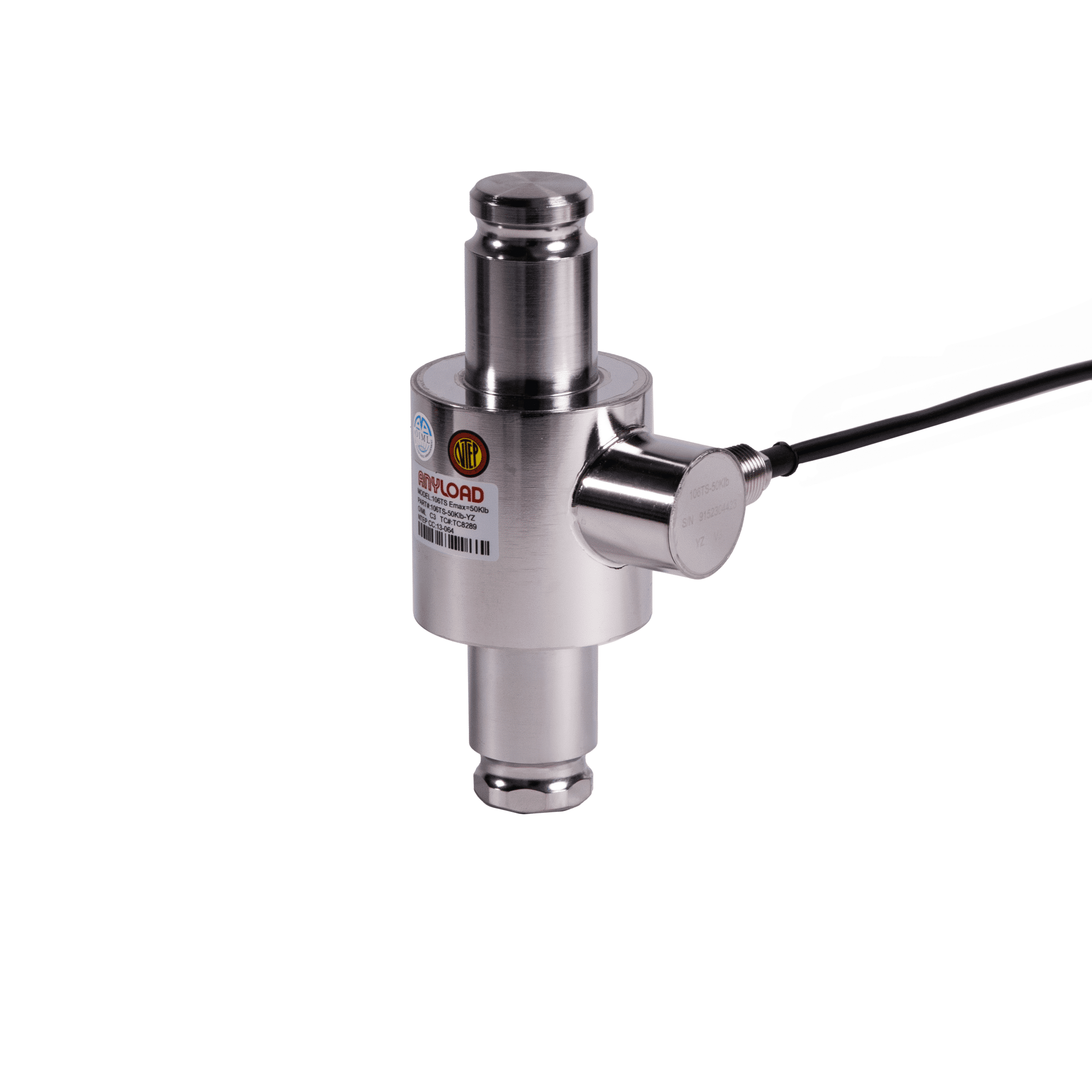

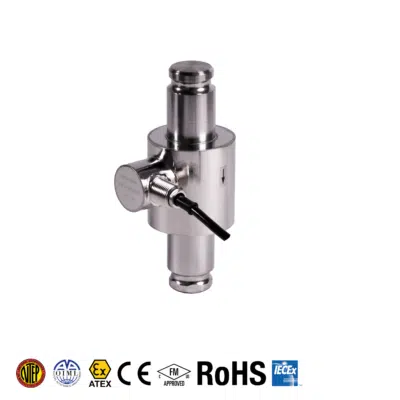

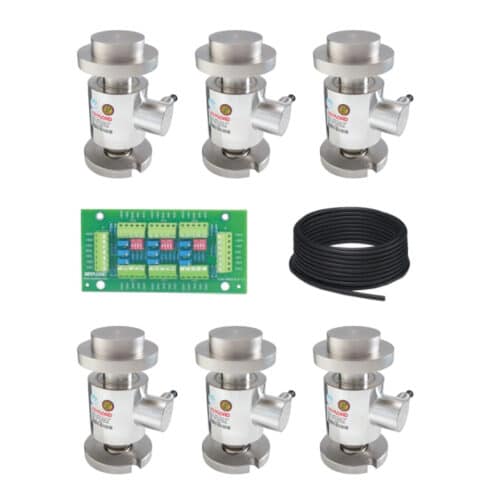

Home / Load Cells / Compression or Canister / ANYLOAD 106TS Stainless Steel Canister Load Cell ANYLOAD 106TS Stainless Steel Canister Load Cell The ANYLOAD 106TS Canister Load Cell is 2Cr13 stainless steel; it is available in three capacities: 50 Klb, 100 Klb, and 30t. Rated IP68, it is suitable for harsh environments and washdown applications. It is purchasable with or without mounting cups; mounting cups are available for separate purchase. Other capacities and configurations for this canister load cell are available – please contact us with any questions. $98.00 – $1,335.00 Capacity Choose an option no load cell 50000lb 30000kg SE30000kg 100000lb Options Choose an option Lower mounting cup Mounting cup set Upper mounting cup Without mounting cup ANYLOAD 106TS Stainless Steel Canister Load Cell quantity Add to cart SKU: 106TS Category: Compression or Canister Description Specifications Technical Documents Interchangeable Cross Reference Reviews (0) ANYLOAD 106TS Key Features Stainless steel material Rated Capacities: 50Klb, 100Klb, 30t Full Scale Output: 2mV/V ± 0.1% Safe Overload: 150% Breaking Overload: 300% IP Rating: IP68 NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t OIML MAA C3, Y=16 000 certified from 10t-50t CE and RoHS certified Measurement Ukraine certified Available options: 106TS-100Klb-YZ, 106TS-50Klb-YZ, 106TS-100Klb-MM (includes mounting cups), 106TS-50Klb-MM (includes mounting cups), 106TS-30t-YZ, 106TS-30t-YZ-MM (includes mounting cups), 106TS-SE30t-YZ (compact height), 106TS-SE30t-YZ-MM (includes mounting cups); Also MC106TS is the upper mounting cup and MB106TS is the lower mounting cup for separate order. Please contact us with any product interfacing inquiries. SpecificationsANYLOAD 106TS Load Cell Specifications Rated Capacity 30Klb, 50Klb, 30t Full Scale Output 2mV/V ± 0.1% Zero Balance ± 0.02mV/V Non-linearity < ± 0.030% Repeatability < ± 0.017% Hysteresis Error < ± 0.017% Creep in 30 minutes < ± 0.020% Input Resistance 1150Ω ± 50Ω Output Resistance 1000Ω ± 3Ω Recommended Excitation 10V (15V Maximum) Insulation Resistance > 2GΩ (50V DC) Temperature Effect on Sensitivity < ±0.0016% of Cn/k Temperature Effect on Zero Balance < ± 0.0028% of Cn/k Compensated Temperature Range -10°C to 50°C/14°F to 122°F Service Temperature Range -30°C to 70°C/-20°F to 160°F Storage Temperature Range -50°C to 85°C/-58°F to 185°F Safe Overload 150% of full scale Breaking Overload 300% of full scale Seal Type Welded seal IP Rating IP68 Technical Documents ANYLOAD 106TS Load Cell Datasheet OIML Approval – 106 SeriesNTEP Approval – 106 SeriesMeasurement Ukraine Certificate of ConformityCE Certificate of ConformityRoHS Certificate of Conformity Interchangeable Cross ReferenceANYLOAD 106TS Interchangeable Cross Reference Manufacturer Equivalent Model Info Coti Global CG-26S7-30t Replaces only the SE30t variation Coti Global CG-26S7-30t-797 Replaces only the 30t variation Mettler-Toledo 0782, 30t Replaces only the SE30t variation Mettler-Toledo Powercell 760 The Mettler-Toledo Powercell 760 and MTX are digital load cells and replace all but the SE30t variation Mettler-Toledo Powercell MTX Reviews There are no reviews yet. Only logged in customers who have purchased this product may leave a review. Related products ANYLOAD 106KS Stainless Steel Canister Load Cell0 out of 5 $96.00 – $4,368.00 ANYLOAD 106HSCP Stainless Steel Canister Load Cell0 out of 5 $390.00 – $2,223.00 ANYLOAD 106PS20 Stainless Steel Canister Load Cell0 out of 5 $1,693.00 ANYLOAD 266AS Compression Stainless Steel Load Cell0 out of 5 $520.00 – $1,410.00 ANYLOAD 106ES Stainless Steel Canister Load Cell0 out of 5 $73.00 – $978.00 ANYLOAD 106MS FatFoot Load Cell0 out of 5 $395.00
