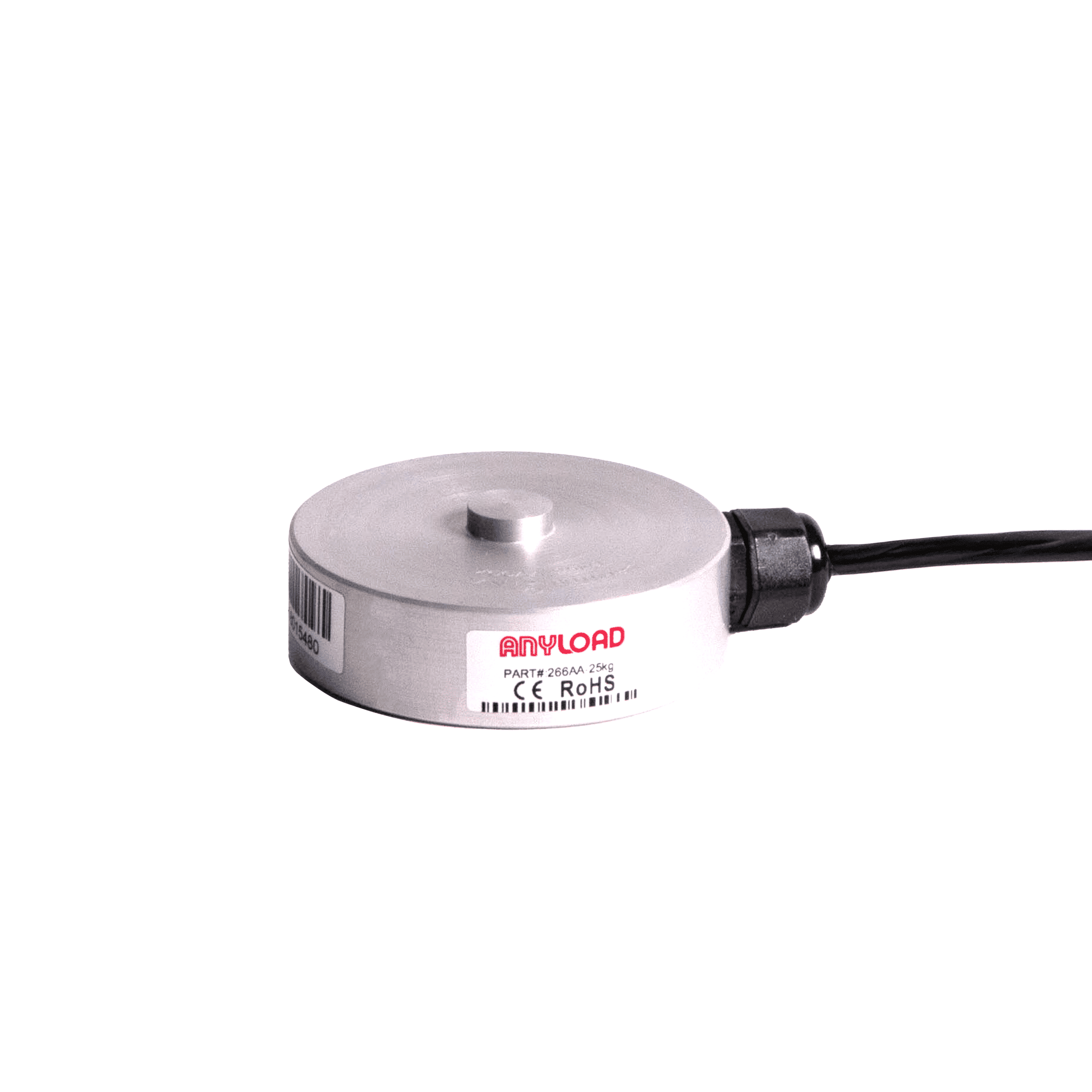

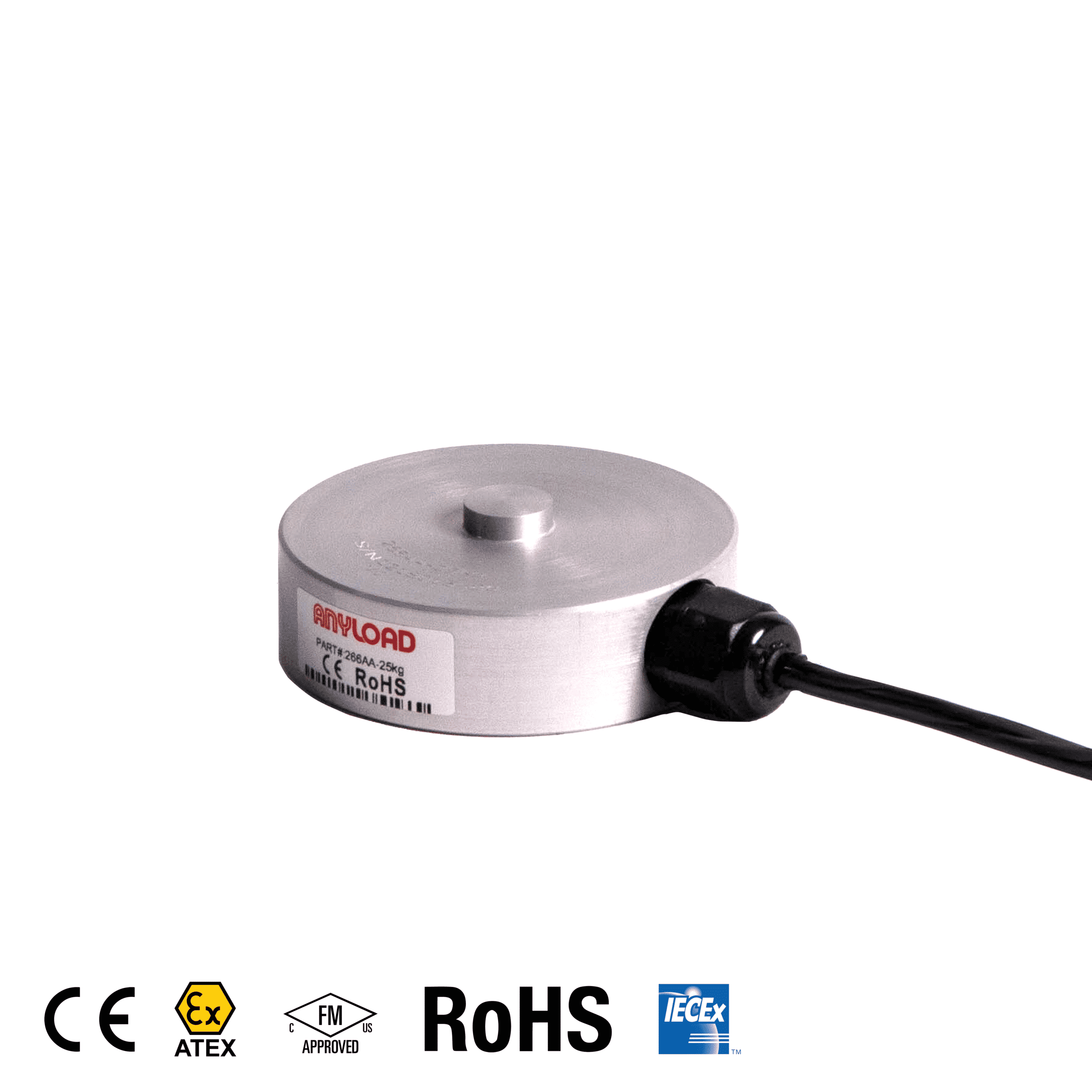

ANYLOAD 266AA Aluminum Compression Load Cell

5.00 out of 5
(1 customer review)



The ANYLOAD 266AA Compression Load Cell is a compact (6.2cm), cost-effective compression weighing solution for accurately weighing smaller loads. It has an environmentally sealed aluminum enclosure, rated IP66, and is available in 25kg and 50kg capacities.

For larger loads, see the alloy steel ANYLOAD 266AH Compression Load Cell.

Quantity Price
1 - 9 $224.00
10 - 24 $212.80
25 - 49 $206.08
50 - 99 $199.36
100 + $190.40
Tacuna Systems Price Match Guarantee
SKU: 266AA Category: Brand:

The ANYLOAD 266AA Compression Load Cell is a clear-anodized aluminum sensor built for accurate, repeatable low- to mid-capacity weighing. Its lightweight aluminum construction and environmentally sealed IP66 rating suit platform scales, checkweighers, and process-weighing applications. Available across a range of low-capacity ratings, with 150% safe overload and 300% breaking overload.

ANYLOAD 266AA Features

  • Material: Aluminum, Clear Anodized
  • Rated Capacities: 25kg, 50kg
  • Full-Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • Environmentally Sealed
  • IP Rating: IP66
  • CE and RoHS-Certified
  • ATEX, FM, IECEx available upon request

Available Options: 25kg & 50kg.

Please contact us with any product-related questions.

Specifications

ANYLOAD 266AA Load Cell Specifications

Rated Capacity 25kg, 50kg
Full-Scale Output 2mV/V ± 1%
Zero Balance ± 0.04mV/V
Non-linearity Cap. ≤2t: <±0.2%; Cap. ≥3t: <±0.05%
Repeatability < ± 0.03%
Hysteresis Error Cap. ≤2t: <±0.1%; Cap. ≥3t: <±0.05%
Creep in 30 minutes Cap. ≤2t: <±0.1%; Cap. ≥3t: <±0.05%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ± 0.0023% of Cn/k
Temperature Effect on Zero Balance < ± 0.0120% of Cn/k
Nominal Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally Sealed
IP Rating IP66
Element Material Aluminum, Clear Anodized
Cable Length 3m

Technical Documents

ANYLOAD 266AA Load Cell Datasheet
CE Certificate of Conformity
RoHS Certificate of Conformity

3D Drawing

266AA-(25-50)kg
