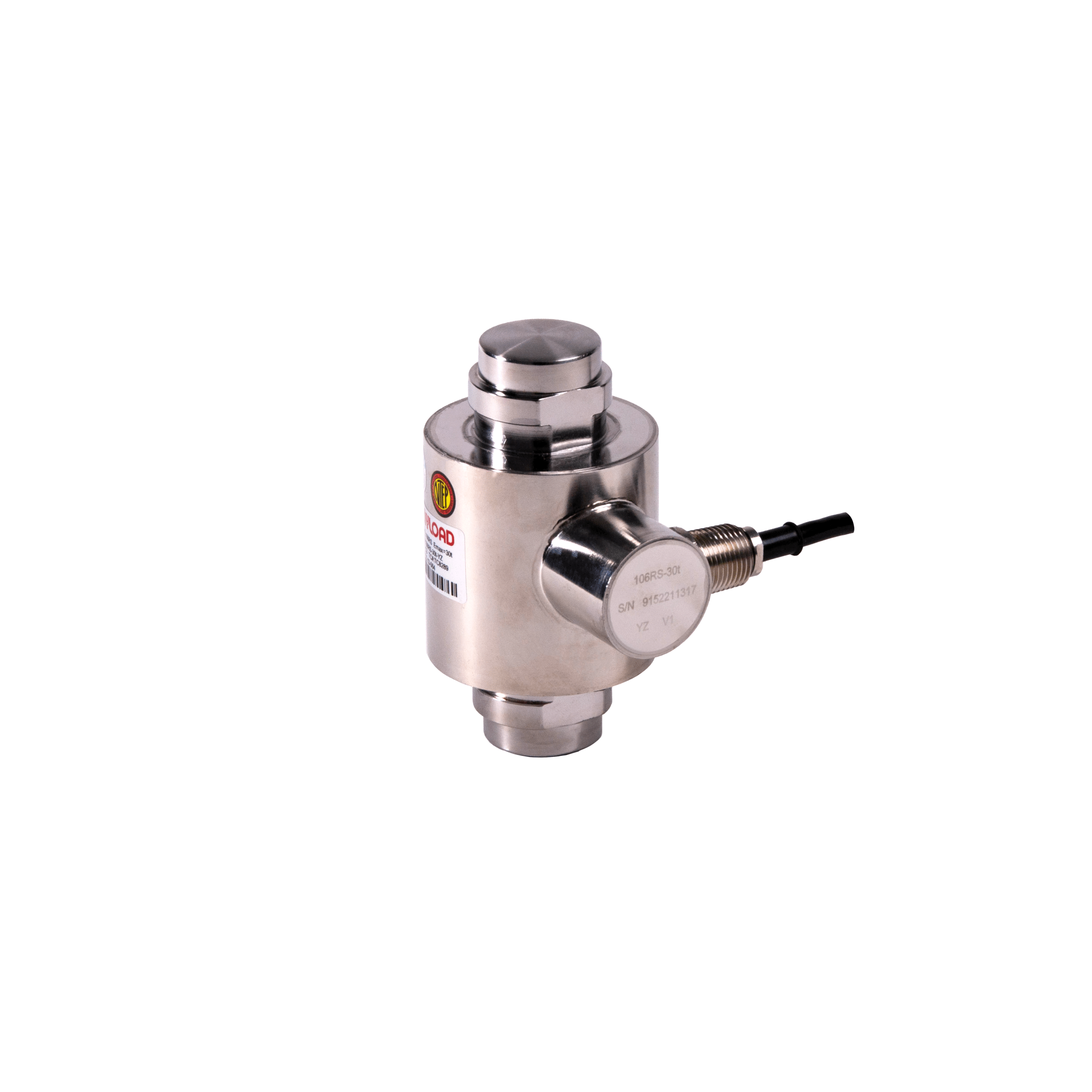

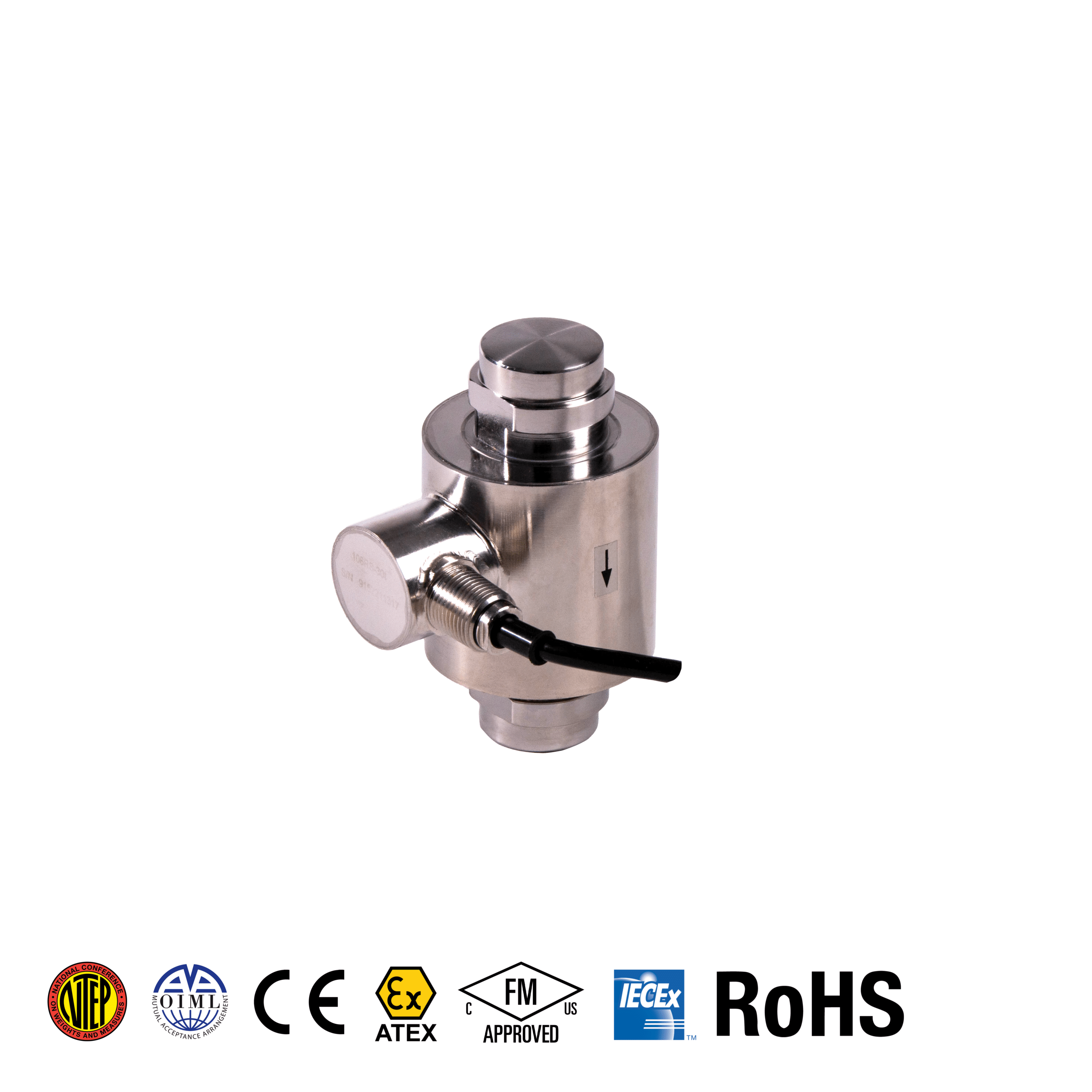

ANYLOAD 106RS-YZ Stainless Steel Canister Load Cell
The ANYLOAD 106RS-YZ canister load cell is available in the following capacities: 30t, 40t, 50t. This rugged 2Cr13 stainless steel load cell has an IP68 ingress protection rating, making it ideal for outdoor use and for applications requiring pressure washing. This product adheres to leading international safety requirements.
Title | Quantity | Price |
---|---|---|
1-9 | 1 - 9 | 0% $96.00 |
10-24 | 10 - 24 | 5% $91.20 |
25-49 | 25 - 49 | 8% $88.32 |
50-99 | 50 - 99 | 11% $85.44 |
100+ | 100 + | 15% $81.60 |
SKU: 106RS-YZ
Category: Compression or Canister
ANYLOAD 106RS-YZ Features
- 2Cr13 Stainless steel material
- Rated Capacities: 30t, 40t, 50t
- Full Scale Output: 2mV/V ± 0.1%
- Safe Overload – 150%
- Breaking Overload – 300%
- IP Rating: IP68
- CE and RoHS certified
- OIML MAA C3, Y=16 000 certified from 10t-50t
- NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
Available options: 106RS-YZ-30000kg, 106RS-YZ-40000kg, 106RS-YZ-50000kg; Upper and lower mounting cups available for purchase with or without load cell for all capacities
Please contact us with any product-related questions.
Specifications
ANYLOAD 106RS-YZ Load Cell Specifications
Rated Capacity | 30t, 40t, 50t |
Full Scale Output | 2mV/V ± 0.1% |
Zero Balance | ± 0.02mV/V |
Non-linearity | < ± 0.023% |
Repeatability | < ± 0.017% |
Hysteresis Error | < ± 0.020% |
Creep in 30 minutes | < ± 0.020% |
Input Resistance | 1150Ω ± 50Ω |
Output Resistance | 1000Ω ± 2Ω |
Recommended Excitation | 10V (15V Maximum) |
Insulation Resistance | > 2GΩ (50V DC) |
Temperature Effect on Sensitivity | < ± 0.0017% of Cn/k |
Temperature Effect on Zero Balance | < ± 0.0028% of Cn/k |
Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
Safe Overload | 150% of full scale |
Breaking Overload | 300% of full scale |
Seal Type | Welded seal |
IP Rating | IP68 |
Technical Documents
ANYLOAD 106RS-YZ Load Cell Datasheet | |
OIML Approval – 106 Series NTEP Approval – 106 Series CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106RS-YZ Interchangeable Cross Reference
Manufacturer | Equivalent Model |
Coti Global | CG-26S6 |
Fairbanks | LCF HR4020-2A (30t), Part # 70510 |
Flintec | RCS |
