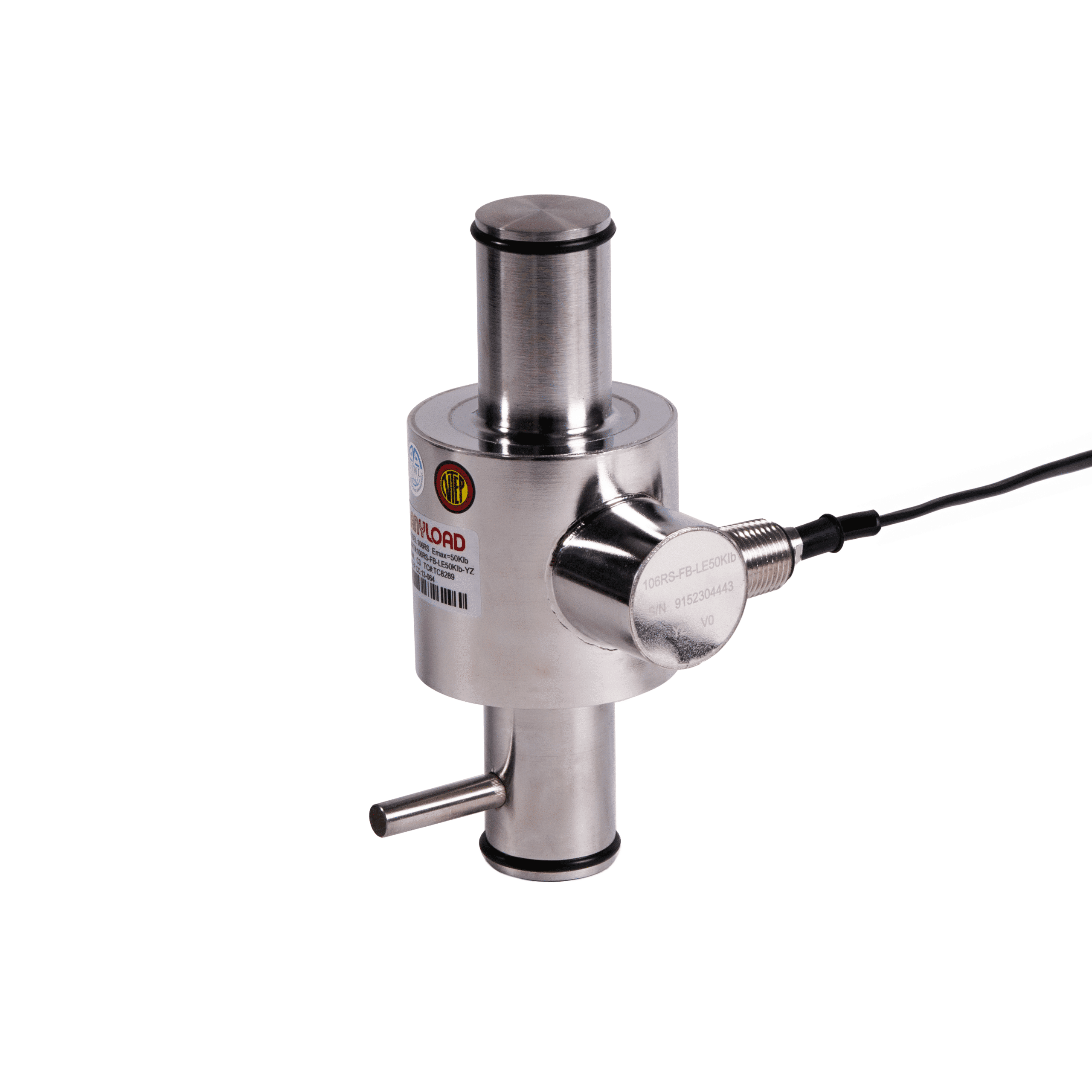

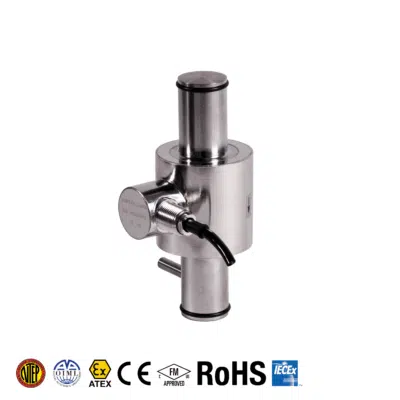

ANYLOAD 106RS-FB Stainless Steel Canister Load Cell
The ANYLOAD 106RS-FB canister load cell comes in 50Klb and 56Klb (250 kN) capacities. Its 2Cr13 stainless steel construction with welded seals earns it an IP68 protection rating for durability to withstand harsh industrial environments. This product adheres to leading international safety requirements.
| Title | Quantity | Price |
|---|---|---|
| 1-9 | 1 - 9 | 0% $982.00 |
| 10-24 | 10 - 24 | 5% $932.90 |
| 25-49 | 25 - 49 | 8% $903.44 |
| 50-99 | 50 - 99 | 11% $873.98 |
| 100+ | 100 + | 15% $834.70 |
ANYLOAD 106RS-FB Features
- Material: Stainless Steel (2Cr13)
- Rated Capacities: 50Klb, 56Klb (250 kN)
- Full-Scale Output: 1.8 mV/V ± 0.1% (50Klb); 2.0 mV/V ± 0.1% (56Klb)
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10000 Class IIIL, Multiple Cell certified from 10t-50t
- OIML MAA C3, Y=16000 certified from 10t-50t
- CE and RoHS-certified
- ATEX, FM, IECEx available upon request
Available Options: 50Klb & 56Klb (250 kN).
Mounting hardware is sold separately: see the ANYLOAD MC106RS-FB-A1 Upper Mounting Cup and the ANYLOAD MB106RS-FB-A1 Bottom Mounting Cup.
Please contact us with any product-related questions.
Specifications
ANYLOAD 106RS-FB Load Cell Specifications
| Rated Capacity | LE50Klb, 56Klb (250 kN) |
| Full-Scale Output | 1.8mV/V ± 0.1% (LE50Klb); 2.0mV/V ± 0.1% (56Klb) |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.010% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 minutes | < ± 0.020% |
| Input Resistance | 1150Ω ± 50Ω |
| Output Resistance | 1000Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0015% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0027% of Cn/k |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
| Element Material | 2Cr13 Stainless Steel |
| Cable Length | 15m |
Technical Documents
| ANYLOAD 106RS-FB Load Cell Datasheet | |
| OIML Certificate of Conformity NTEP Certificate of Conformity CE Certificate of Conformity RoHS Certificate of Conformity |
Interchangeable Cross Reference
ANYLOAD 106RS-FB Interchangeable Cross Reference
106RS-FB-LE50Klb-YZ
| Manufacturer | Equivalent Model |
| Coti Global | CG-26S1 50K LE |
| Rice Lake | RL75114 |
| Fairbanks | LCFHR4020-2, Part# 64166 |
106RS-FB20-56Klb-YZ
| Manufacturer | Equivalent Model |
| Coti Global | CG-26S2 56K |
| Fairbanks | LCFHR4020-19 |
| Flintec | RC1 |
